100
220
180
250
J1939
°C
°F
80
40
100
120
0
I
II
396008
Dashboard & Actuator Panel
1 - Ignition box
2 - Travel joy stick
3 - Transport speed controller
4 - Operating speed preselector
5 - Parking brake
6 - TOTAL STOP pushbutton (for emergency brake)
7 - Vibration switch
8 - Engine speed selector
9 - Power View Display
10 - Hydraulic oil thermometer
11 - ECM engine socket
12 - Switches
13 - Pilot lamps
14 - Fuses

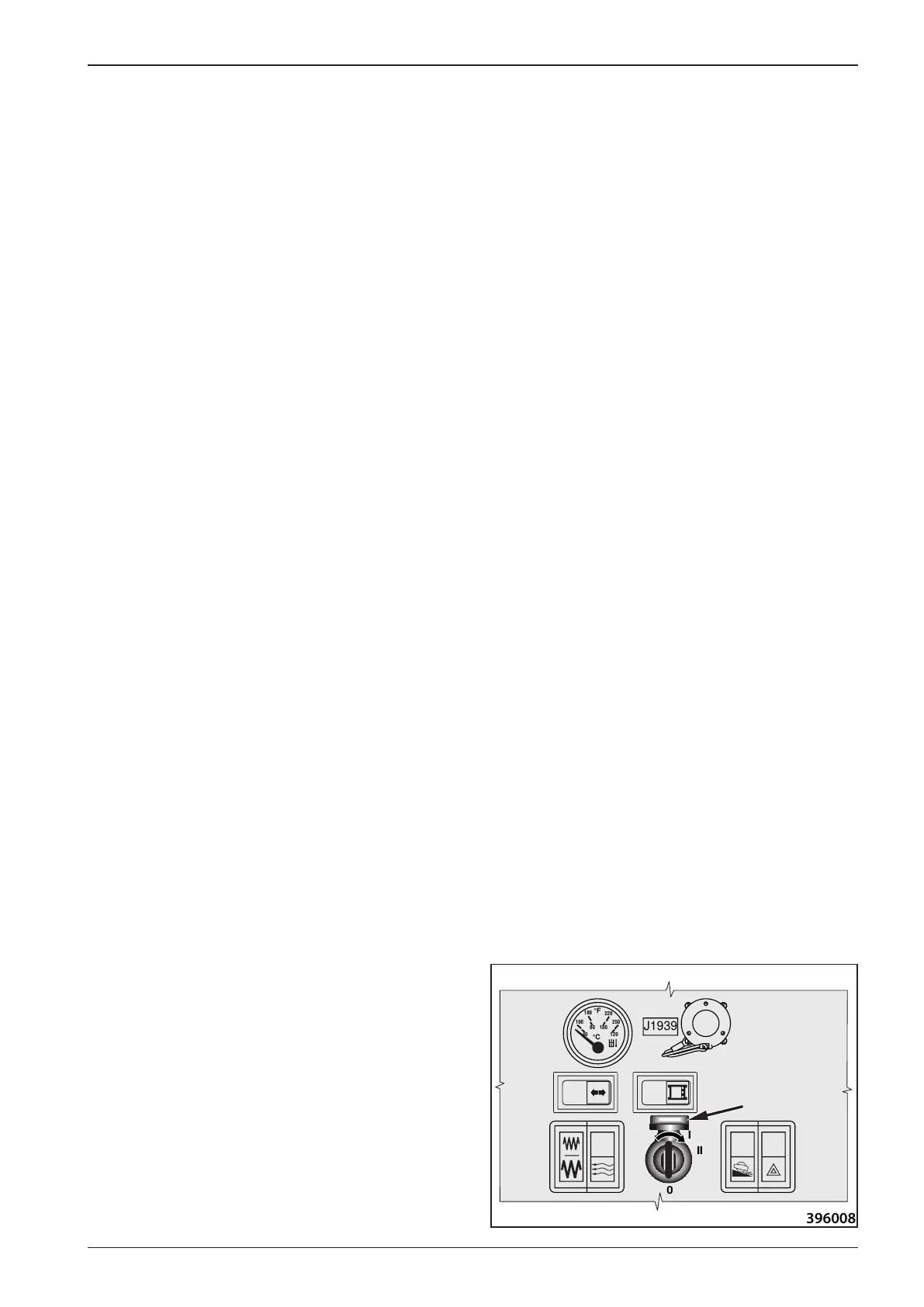

Ignition box 1
While in “0” position the lights, cab/bonnet lifting and AC are
connected. While in “I” position the dashboard instruments are
connected. Position “II” is used to start the Machine.
Note
Ignition key is common for cab door, service door underneath
cab, and for tool kit.
