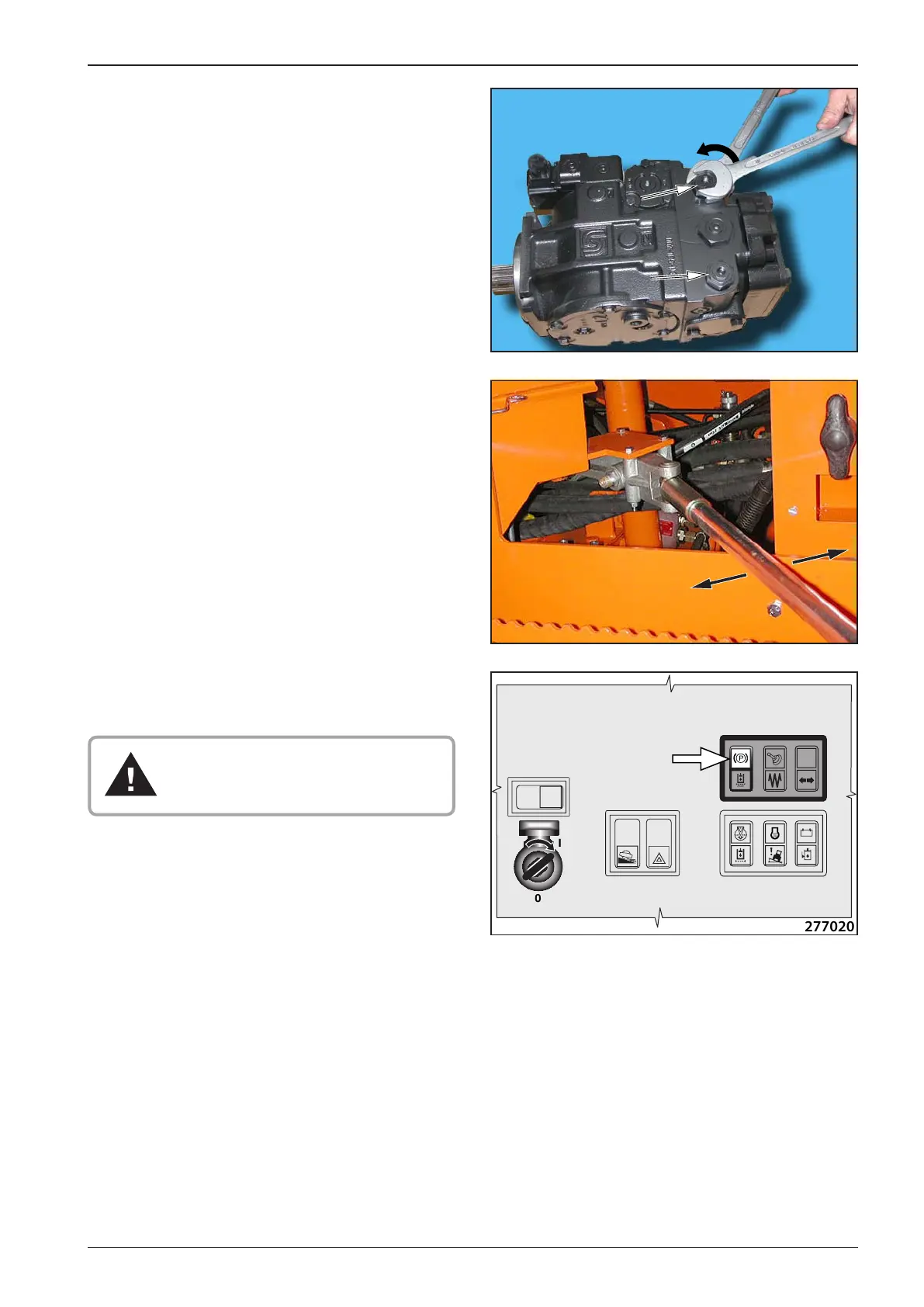

Cut short the hydraulic circuit of the travel through loose- •
ning the centre parts of both multifunctional valves by 3
turns in CCW direction. Spanner 27 mm, (11/16“)
Pump with the use of hand hydrogenerator.
•
Watch until brake indicator lamp goes OFF with the ignition
•
key turned ON. Now the Roller is braked o.
When towing is completed, please secure
the wheels and drum with scotch blocks
(cotters), and put into initial state.
How to put into initial state
Screw back the multi-purpose valves on the travel hydroge-
•
nerator.
Disconnect hose 3 at the quick-coupling 2.
•
Connect hose 1 back with pressure lter quick-coupler 2.
•
Attach hose 3 in clamp.
•
Put hand hydrogenerator lever into the holder underneath
•
the Driver’s control stand.
