180 ASC110 / ASC130 / ASC150
3.6. Individual Operations of Maintenance
3
2
1
1
1
2
Maintenance - As Needed Maintenance - As Needed

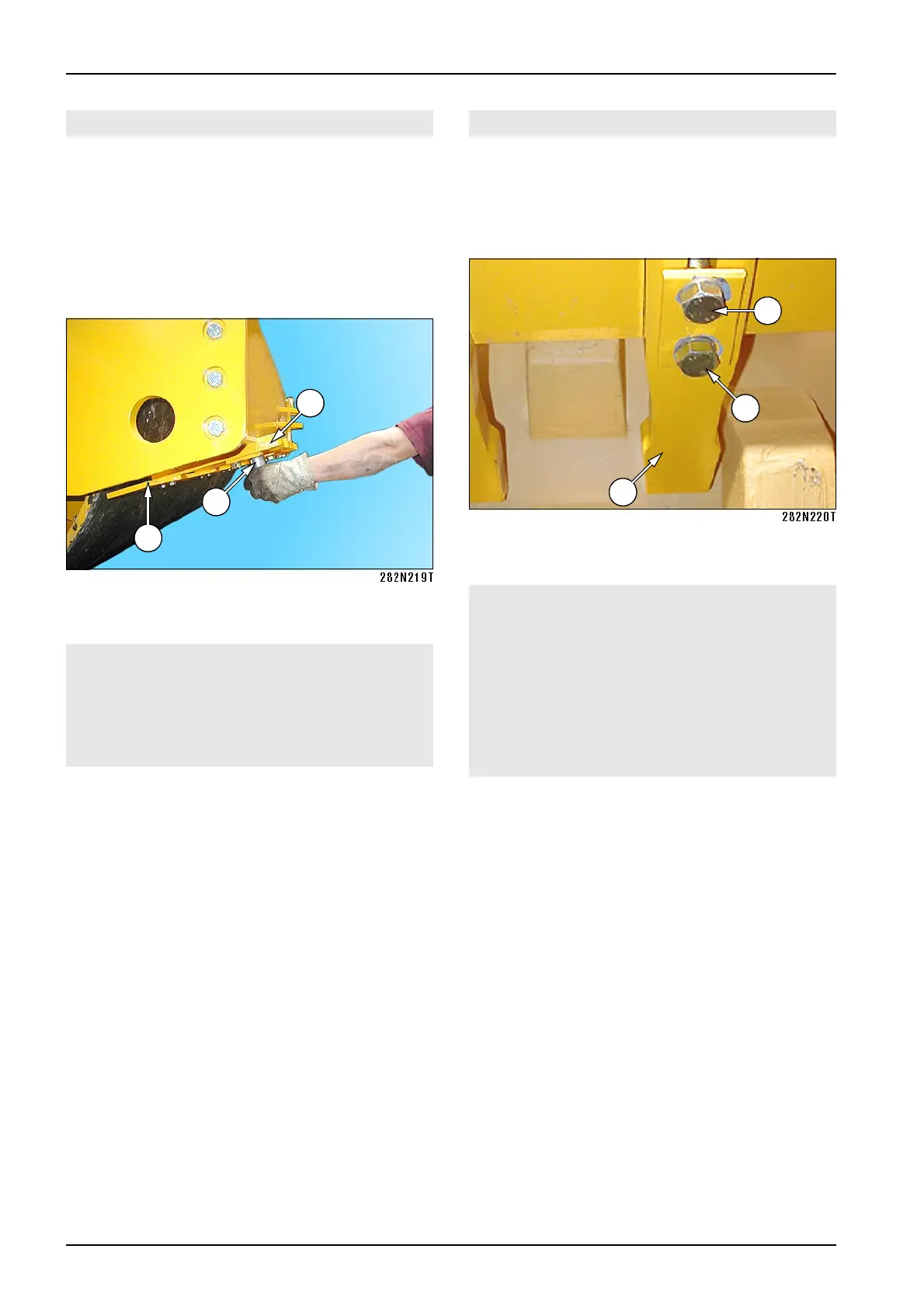

3.6.38. Adjusting scrapers
Scrapers for the smooth drum
• Loosen bolts (1), see fig., and move holders (2) to-
wards the drum to the distance of 15 mm (0.6 in)
between the scraper and the drum.
! NOTE !
If you can not move scrapers any more within the
range of oval openings of the holders (2) due to the
wear of the scrapers, dismantle the scraper (3) and
move it closer to the drum by one hole.
Scrapers for the taper foot drum
• Loosen bolts (1) and move individual scrapers (2)
towards the drum to the distance of 25 mm (1 in).
! NOTE !
Rear scrapers of the taper foot drum are longer.
When replacing worn scrapers, replace the front
scrapers with rear ones and the rear scrapers with
new ones.
If you set too short distance between the scraper
and drum, they may get into contact when cornering
with the machine.
