29ASC 130
SPECIFICATION MANUAL
1.3.19. Accessories

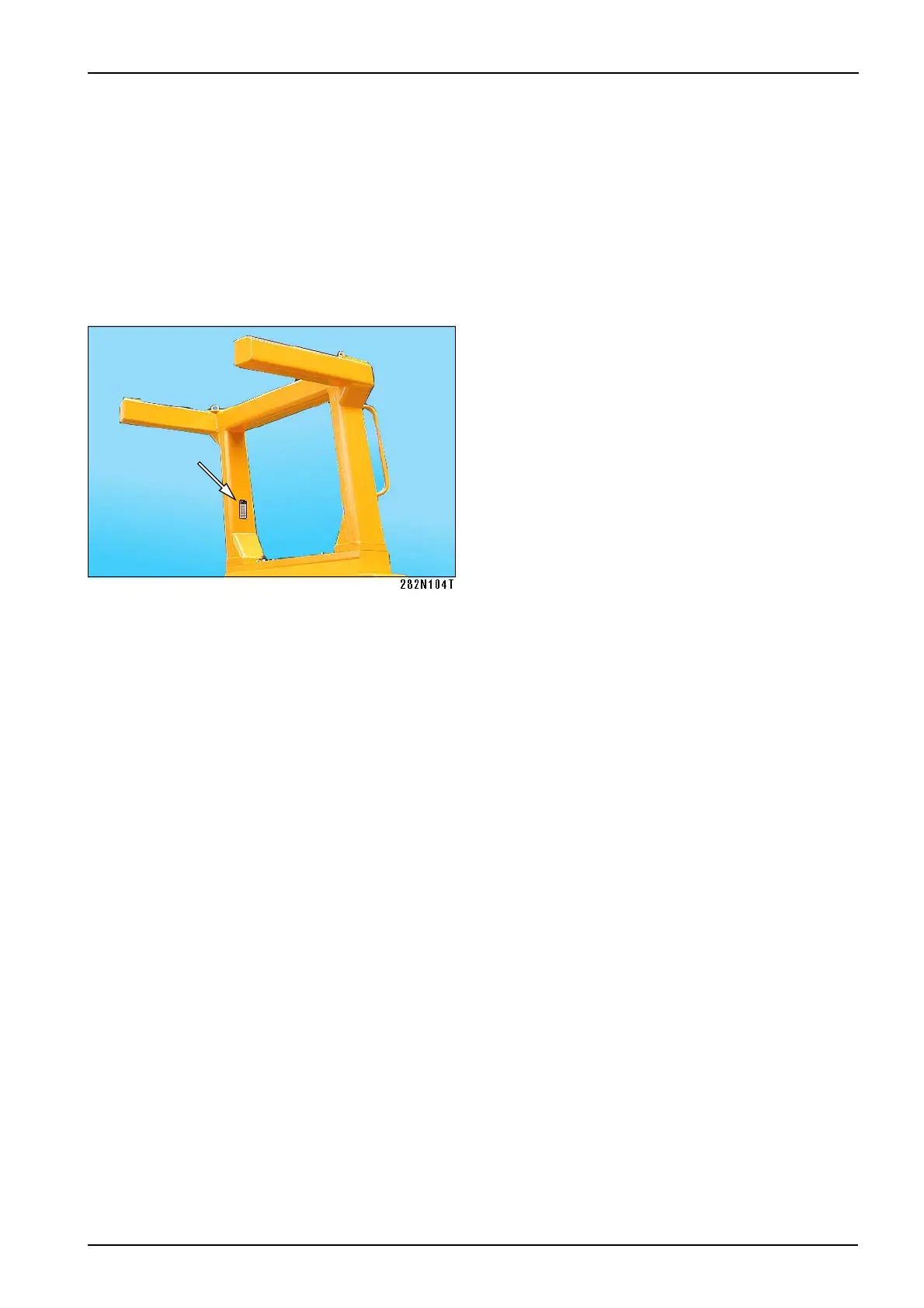

A) Rolling Over Protective Structure (ROPS)
Compliant with international standards EN 13510:2000; ISO 3471:1994; SAE J ISO 3471:2003; AS 2294:2003; for
maximum machine weight 18500 kg (40785 lb).
Weight of the ROPS frame kg (lb) 230 (507)
Fastened to the machine flame with 16bolts M 24 x 80 CSN 02 1143.55 (8G)
Tightening torque Nm (in lb) 549 (4854)
B) Dozing Blade
Blade width mm (in) 2950 (116,1)
Blade height mm (in) 916 (36,1)
Ground clearance at transport position mm (in) 576 (22,6)
Cutting depth mm (in) 277 (10,9)
Weight of blade (total) kg (lb) 910 (2006,2)
Fastened to the machine frame with 2 bolts M 20 x 100 (8G)
2 bolts M 20 x 110 (8G)
5 bolts M 20 x 140 (8G)
5 bolts M 20 x 160 (8G)
Tightening torque Nm (in lb) 314 (2776)
Distributor HP8-1-STA
Safety pressure MPa (PSI) 20 (2900)
Hydraulic cylinders 2x HM 63/32/500 111131
