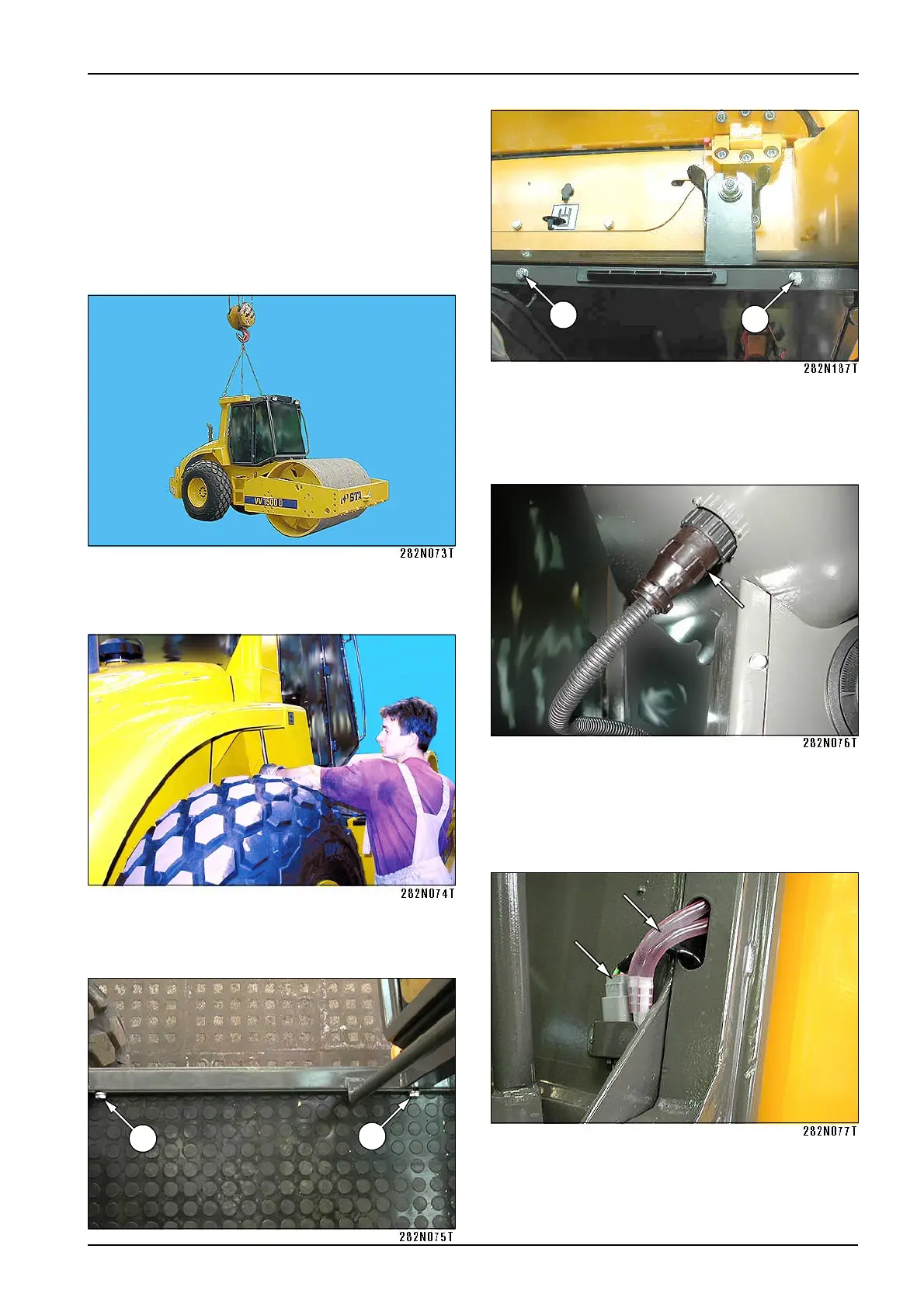

2.8.5. Dismantling cabin and ROPS frame
• If the machine height on the transporting vehicle is
higher than allowed for transport, dismantle cabin and
ROPS frame.
Dismantling ROPS
• Hang the frame by lifting eyes.
• Dismantle bolts and remove the frame.
Dismantling cabin
• Remove bolts (1) fastening the cabin to the platform.
• Disconnect electric system by disconnecting connec-
tor between steering column and front windshield.
• Disconnect electric system of washer and lines to
windshield washing jets. Hang the cabin by eyes and
remove.
