2.7.7. Troubleshooting according to flashing
codes
• In case of engine fault, either stop engine red signal lamp
(18) or engine warning yellow lamp (19) will light up.
••
••
• Before troubleshooting stop the engine and turn the
ignition key (9) to ”I” position.
• Press button (16) to activate error code. The lighting
signal lamp will start flashing in the code correspon-
ding to the defect and it repeat twice in the same
sequence.
• Press button (17) to move to the next error. You can
search for error codes stored in ECM index using
symbols of switch (17): upper symbol forward or bot-
tom symbol backward.

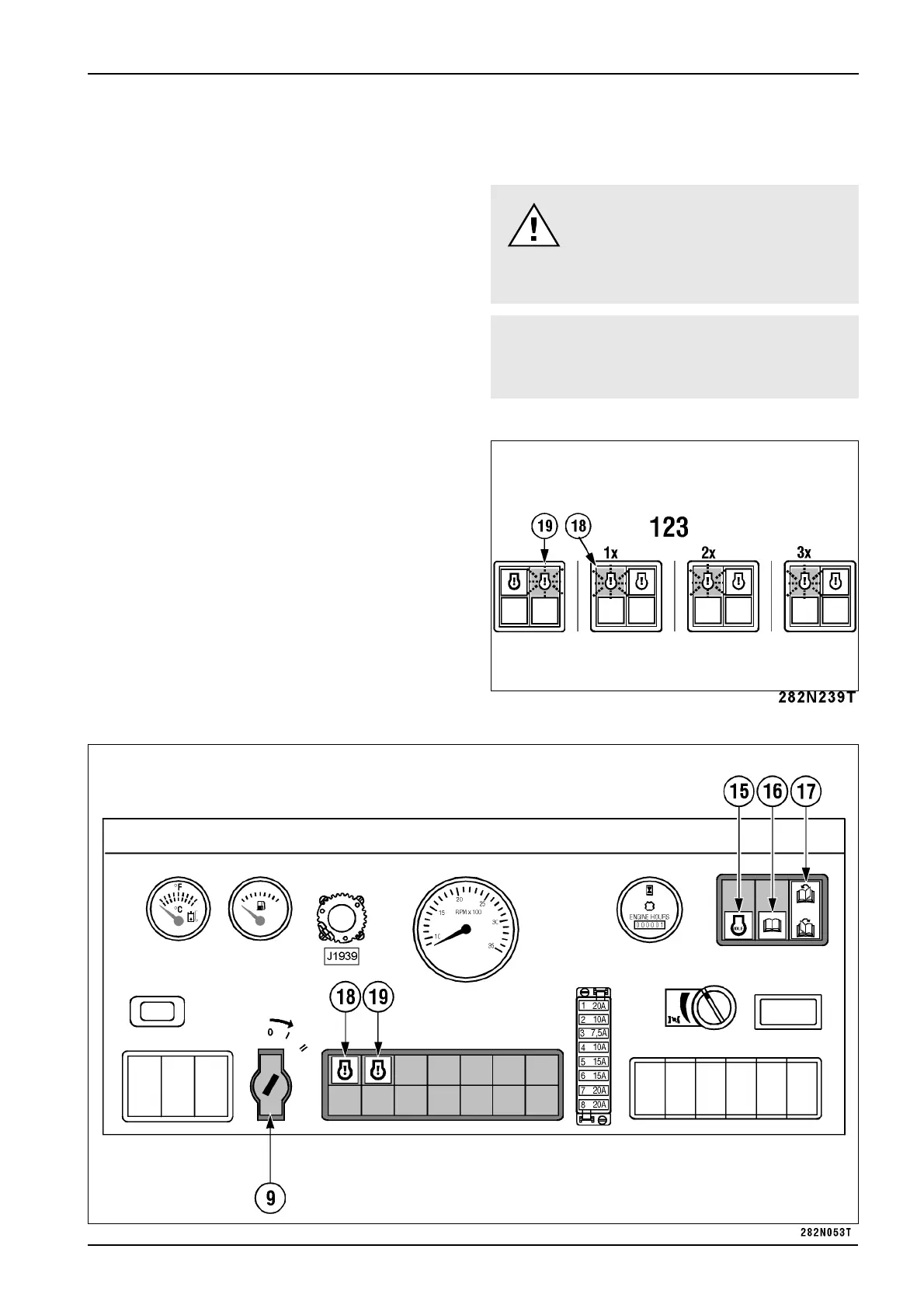

Example of flashing error code
Flashing code consists of three digits.
Example: code 123 signal lamp
Yellow lamp (19) will flash, red lamp (18) will flash the
code after 1-2 sec.
Number 1: red will flash once, then pauses for 1-2 sec.
Number 2: red will flash twice, then pauses for 1-2 sec.
Number 3: red will flash thrice.
When the number has finished flashing in red, a yellow
lamp will appear again. The three – digit code will repeat
in the same sequence. Press button (17) to move to the
next error.
NOTE
If only one defect is identified, its error code will be
signalled repeatedly even if you press switch (17) in either
direction.
After the signal lamp (18) goes on,
stop operation and engine while
keeping safety at work!
Do not start the engine before the
defect has been repaired!
! NOTE !
If signal lamp (19) lights up, repair the defect as
soon as possible!
