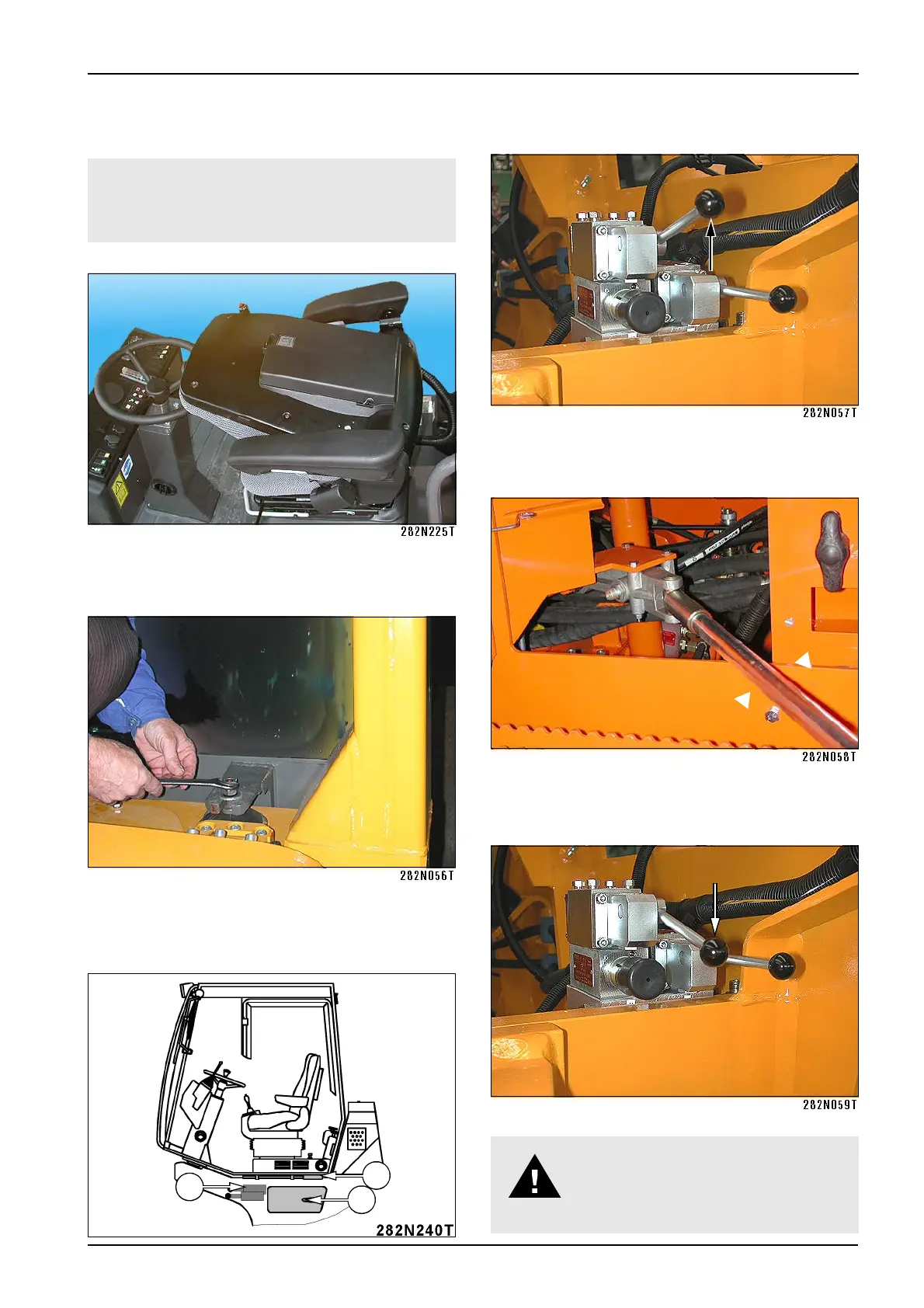

2.7.10. Lifting driver’s stand and bonnet
! NOTE !
Fold the seat and rest before lifting drivers stand.
Just the machine with integrated roof in ROPS.
• Open the cover (1) on the left side under the driver’s
stand. Take out the pump lever (2).
Levers of lifting and lowering (3)
• Move the lever to A position (lifting).
• Insert the lever to the pump and lift the driver’s stand.
• Move the lever to B position (lowering) and pump.
Screw the driver’s stand in after
lowering. If the driver’s stand is not
screwed in properly, the machine may
overturn and cause lethal injuries.
Lifting driver’s stand
• Remove nuts of the driver’s stand.
