98 ASC110/ASC130/ASC150/ASC200/ASC250
2.7. Controlling and operation of the machine
96
1
2

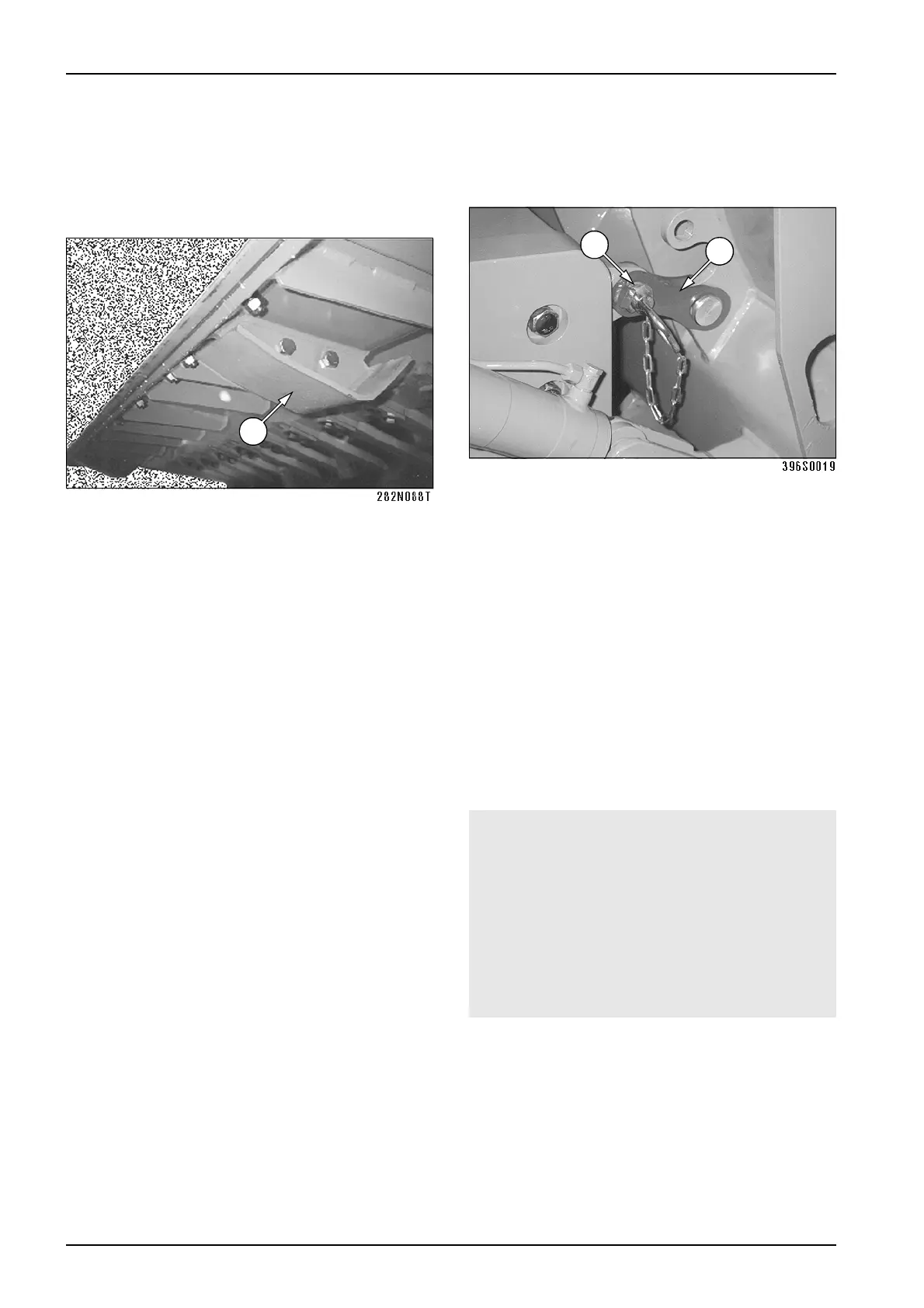

• Floating position can be used for shovelling the mate-
rial. The blade slides over removable skids (96). It can
be also used for the regressive spreading and evening
of the material.
• After finishing work with the blade secure it in the upper
position using both safety pull rods (1) and pins (2).
NOTE:
• The functions in 4 positions
position 0 (initial position of the pedal)
position I. (blade moves down)
position II. (blade moves up)
position III. (blade is in floating position)
• Volume of the shovelled material can be corrected by
lowering the blade (blade lever in ”I” position) or by
lifting it up (the lever is in ”II” position) dependently on
traction power of the machine.
• Blade edges are removable and they can be turned by
180
o
after their wear.
! NOTE !
Do not adjust the scrapers, do not carry out any
maintenance at the blade unless it is lowered to the
ground and the engine stopped, or unless the blade
is secured by both safety links.
Do not work with the blade when it is secured.
In case that only one link is secured, the blade can
be damaged.
