97ASC110/ASC130/ASC150/ASC200/ASC250
OPERATING INSTRUCTIONS
94
93
93
94

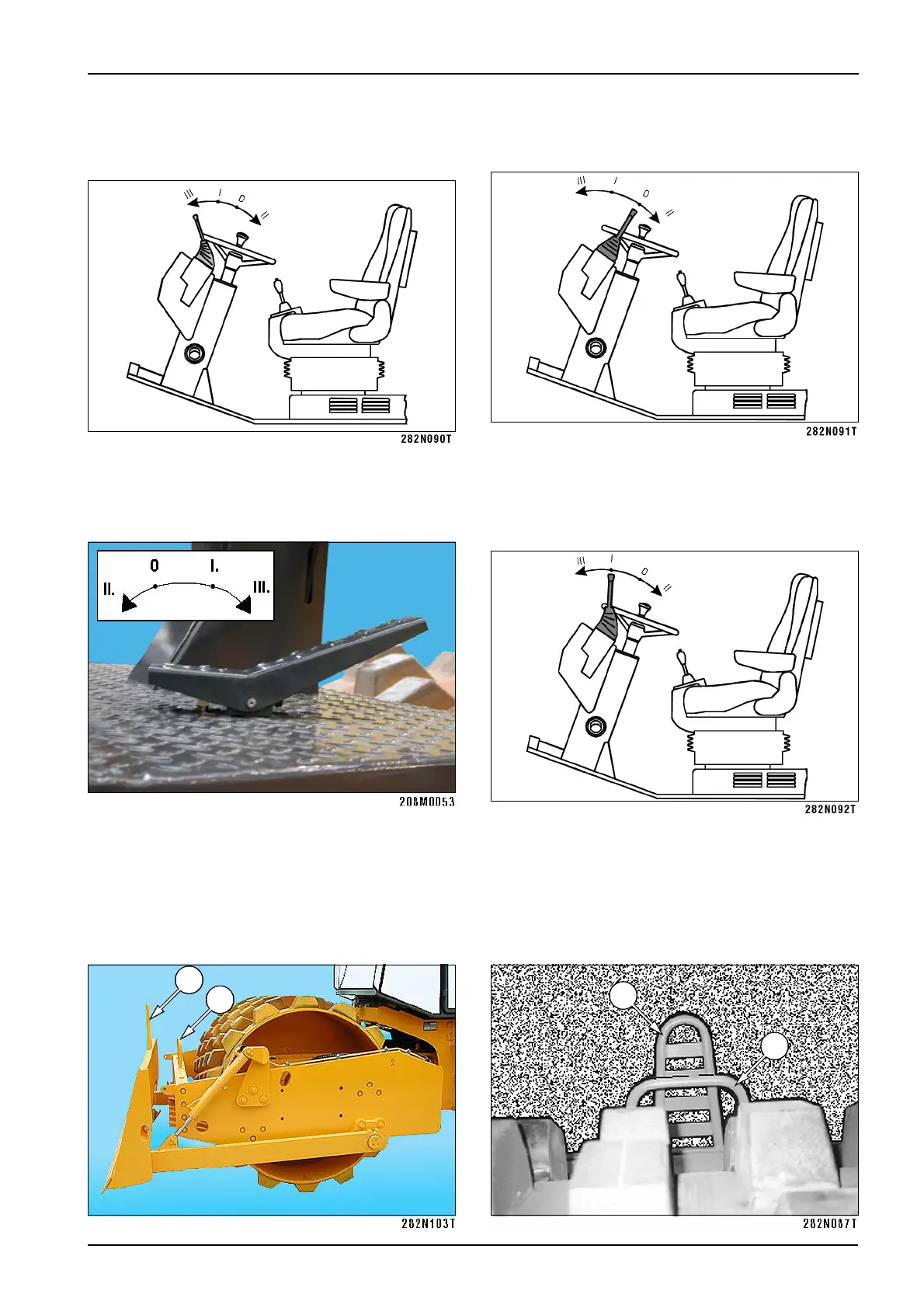

• Lower the blade down to the earth by shifting the blade
controller forwards from ”0” position to ”III” (floating
position).
or pedal.
• Find the position of the of the fixed indicator (93) on the
drum frame beam as related to the movable indicator
with the blade (94) and remember this information.
This is then the basic position of the blade.
• Return the controller (pedal) to ”0” position and start
driving.
• The blade then starts digging after shifting the control-
ler (pedal) to ”I” position.
• The size of the digging can be read on the basis of the
relative position of both the fixed (93) and movable
(94) indicators. (Each shift by one increment means
the blade will move by 50 mm).
