30 ASC 130
1.3. Technical Data
C) Padfoot Segments
These are mounted onto the smooth drum and partially substitute for the padfoot modification. The padfoot segments
are used for compaction of soils up to the layer thickness according to following table:
cohesive soils 47 cm (17,7 in)
mixed soils 60 cm (23,6 in)
The segments are also suitable for pulverization and compaction of plate-shaped rock (shales).
Number of segments 3
Drum dia over pads mm (in) 1712 (67,4)
Total number of pads 150
Height of a pad mm (in) 100 (3,9)
Area of a pad cm
2
(sq in) 120 (18,6)
Weight of one segment kg (lb) 560 (1235)
Total weight of segments kg (lb) 1680 (3703)
Fastened to the drum with 18 bolts M 20 x 150 (8G)
Tightening torque Nm (in lb) 314 (2776)
D) FOPS roof cover
The cover complies with international standards ISO 3449:1992; SAE J 231:JAN81; AS 2294:1990 and approval level
II. It is mounted on the ROPS protective frame, and protects the driver from falling objects, such as trees, boulders, etc.,
Cover weight kg (lb) 140 (309)
Attached to ROPS by 4 bolts M16x30(8G)
Tightening torque Nm (in lb) 165 (1457)

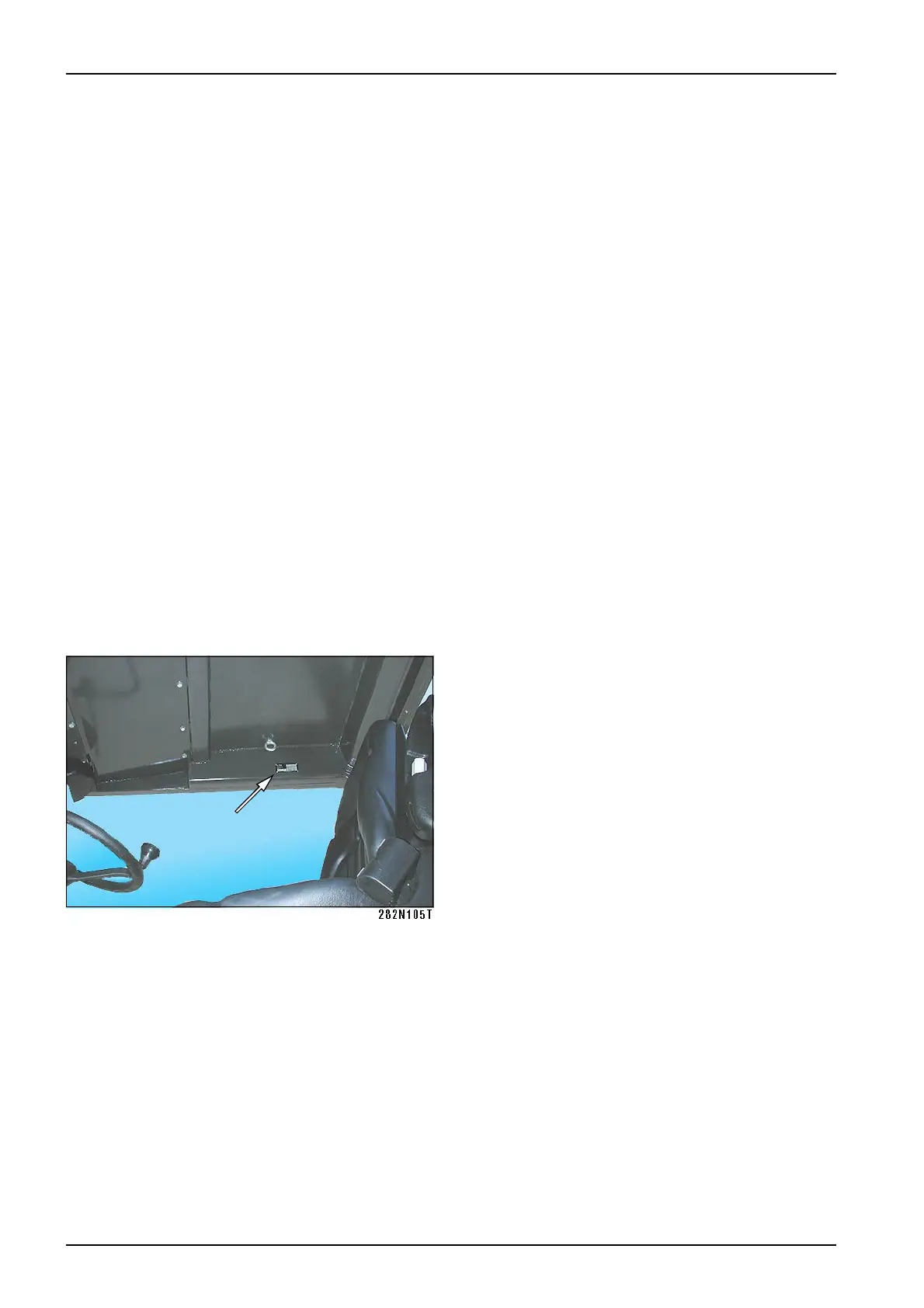

Details are listed on label on the cover.
