3.6. Lubrication and Maintenance
3.6.14. Oil in the travel gearboxes check

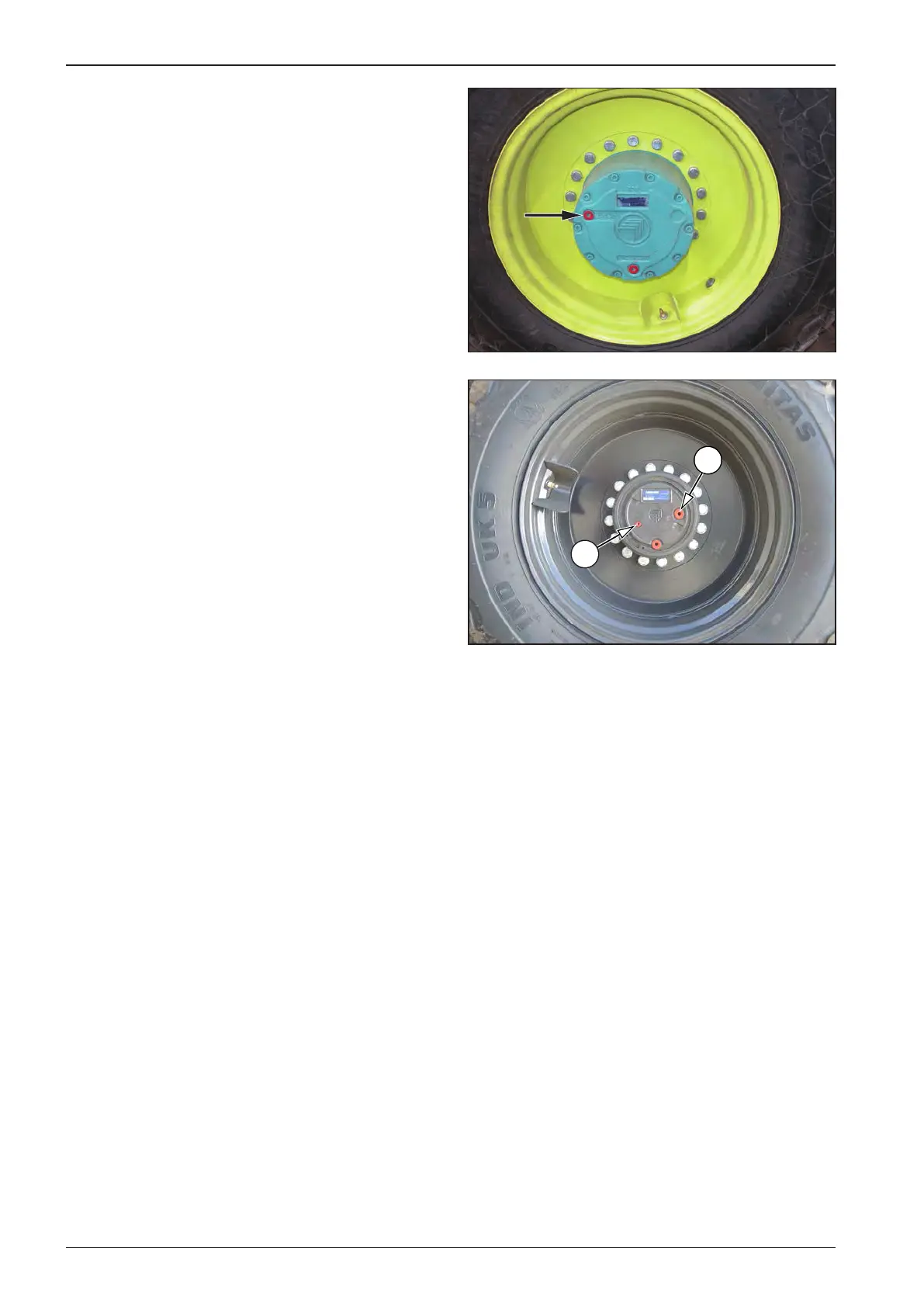

Gearbox of wheels with two plugs
• Stop the Machine on at paved surface so that the plugs of
both wheels’ gearboxes are in the position as per the Fig.
Clean the spot round the plugs and unscrew them. Check oil
level. The level has to be up to the hole or ow out slightly.
Replenish and then clean the plug and reinstall.
Gearbox of the axle with three plugs
• Clean the area around the checking plug (2).
• Unscrew the plug (2) and check the oil level. The oil level
must reach the checking opening or slightly ow out.
• Rell oil through the lling plug (1), if necessary.
• Clean the plugs and mount again.
