2.6. Actuators and dashboard instruments

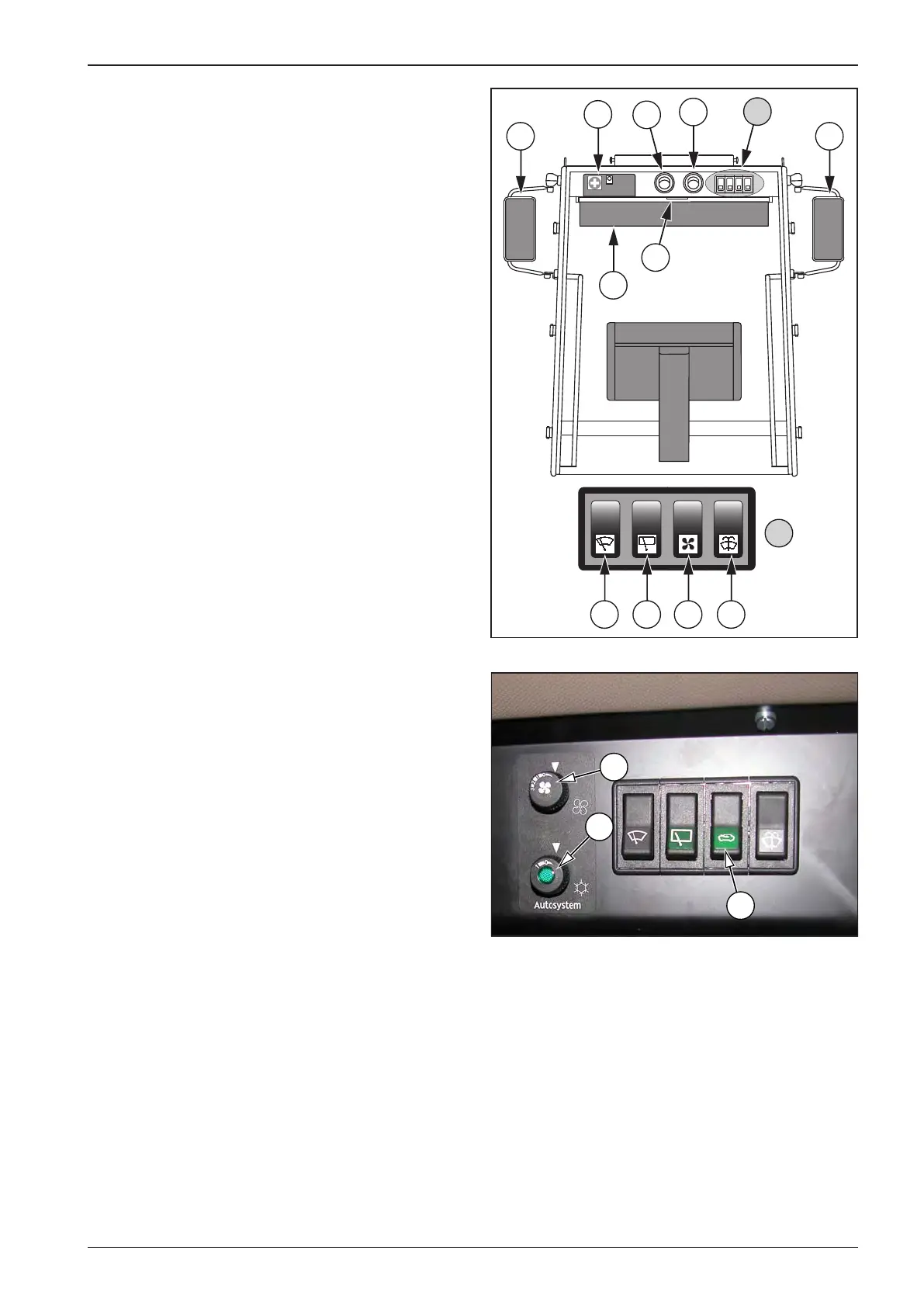

Layout of actuator elements and cab accessories
1 - Windshield washer switch
2 - Fan switch - fan induces ambient air
3 - Front wiper switch
4 - Rear wiper switch
5 - Cab light
6 - Ventilation nozzles
7 - Sun visor
8 - Stowage box for rst aid kit, operation logbook, etc.
9 - Back mirrors - able to fold for transport position by 90° to-
wards cabwards cab
10 - Air-conditioning switch (OPTION)
11 - Air blowing intensity selector (OPTION)
2А - Air recirculation switch
