2.6. Actuators and dashboard instruments
2.6.1. Power View control

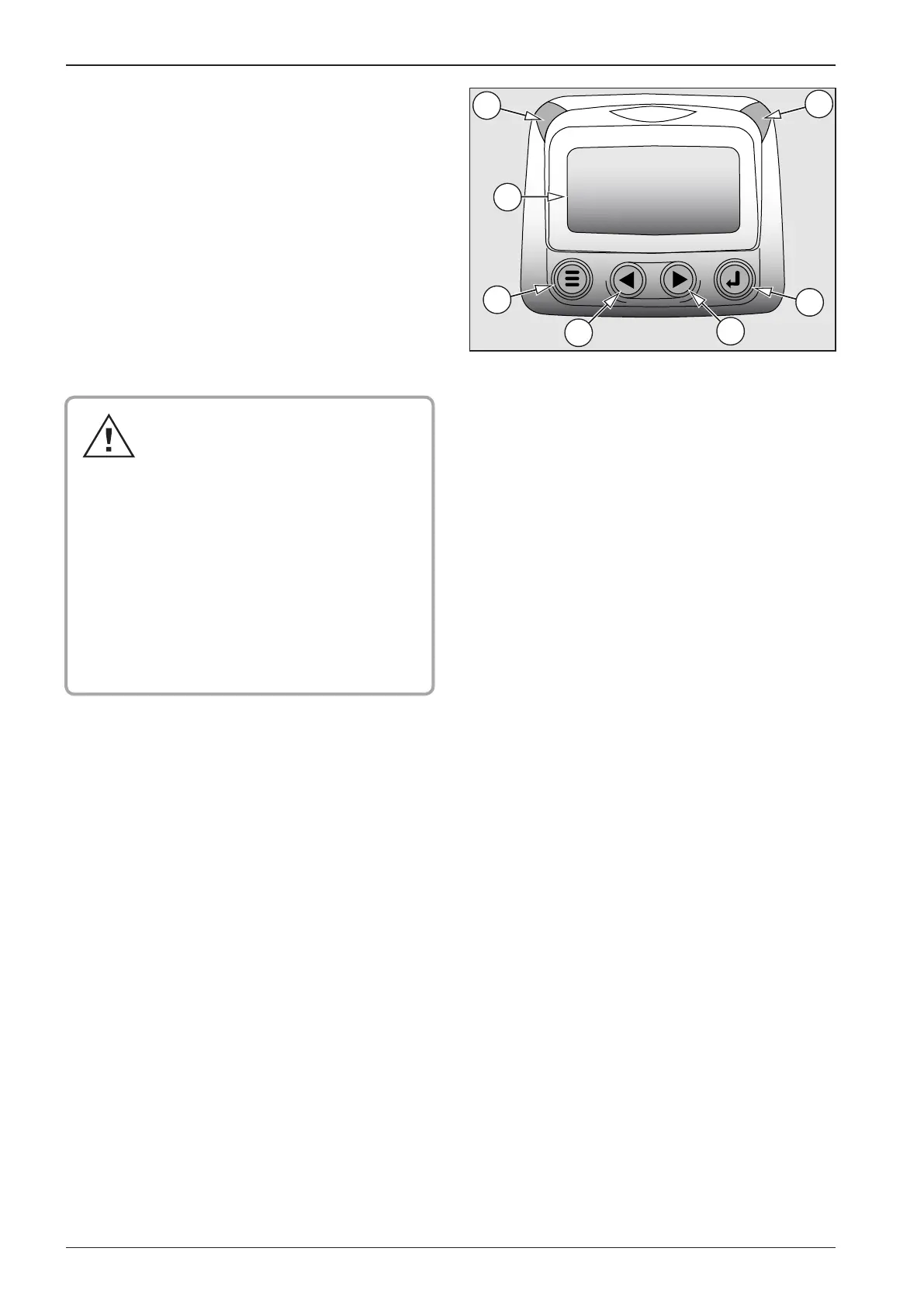

1 Display
2 Red LED lights – ENGINE SHUTOFF – engine substantial
defect alarm
3 Yellow LED lights - WARNING – engine failure alarm, or
minimal fuel level in tank alarm
4 Menu selection pushbutton – to enter or exit menu
5 Pushbutton – to move cursor UP – illuminates data on dis-
play or moves parameter option to the left or up
6 Pushbutton – to move cursor DOWN – illuminates data on
display or moves parameter option to the right or down
7 ENTER pushbutton – selects menu or parameter, or con-
ceals/displays active error code
The red LED is lighting – reduce the en-
gine power, park the machine immediate-
ly at a safe place and turn o the engine!
Contact your dealer. Do not operate the
machine until the failure is removed!
The yellow LED is lighting – warning – en-
gine failure alarm, or minimal fuel level in
the tank alarm. Reduce the engine power,
park the machine immediately at a safe
place and turn o the engine! Remove
the failure or contact your dealer. Do not
operate the machine until the failure is
removed!
If a failure code is displayed, contact your
dealer.
