MAINTENANCE MANUAL

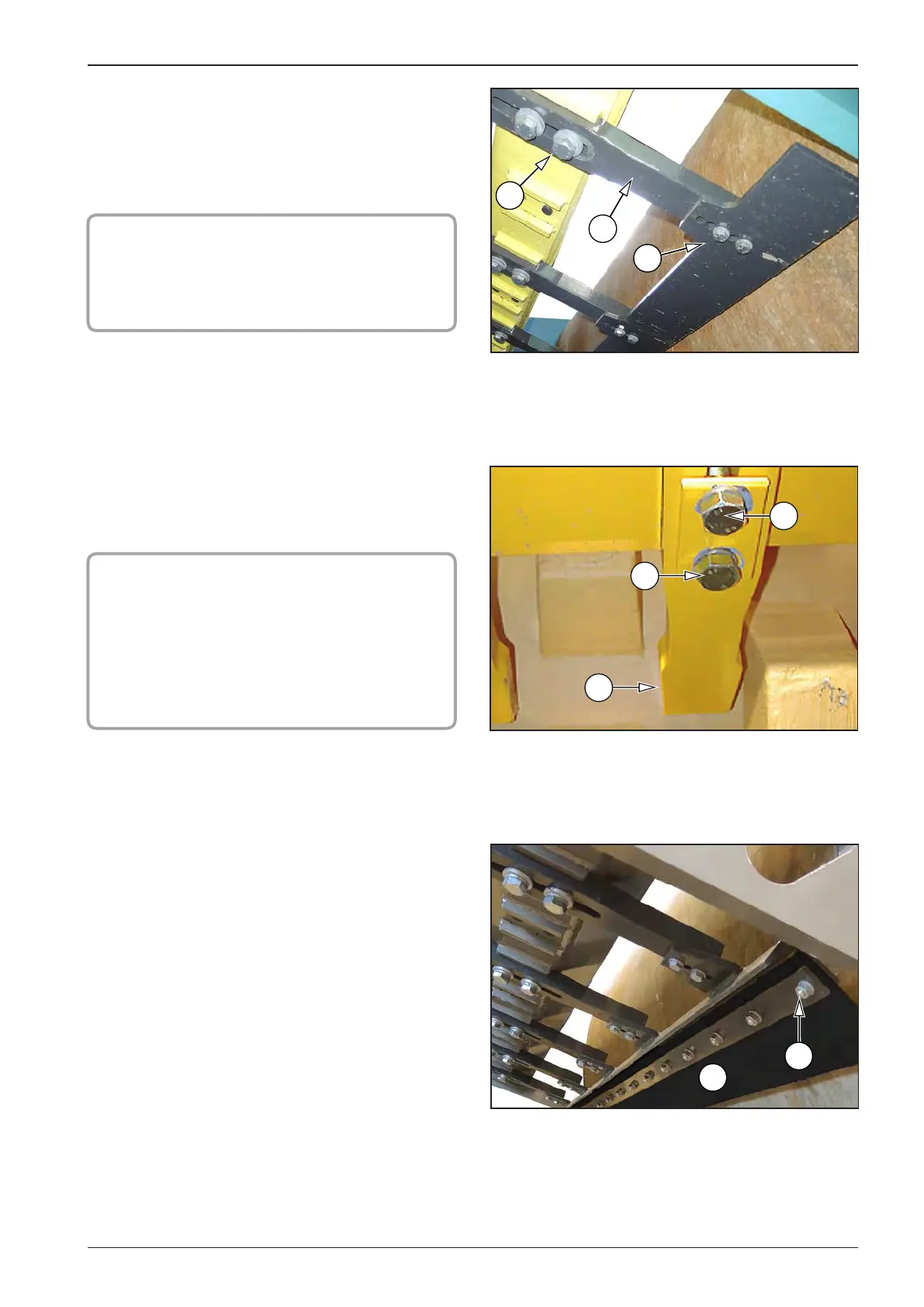

3.6.37. Scrapers adjustment
Scrapers designed for smooth drum
• Slacken bolts (1) and shift holders (2) towards the drum for
15 mm (0,6 in) distance between the scraper and the drum.
! CAUTION !
Unless possible to shift the scrapers in oval-shaped
holes of holders (2) when scraper (3) gets worn,
remove the scraper (3) and move it by one hole to-
wards the drum.
Scrapers for padfoot drum
• Slacken bolts (1) and shift individual scrapers (2) towards the
drum at 25 mm (1 in) distance.
! CAUTION !
Rear scrapers at padfoot drum are longer. When re-
placing worn scrapers use rear ones instead of front
ones, and replace the rear scrapers with new ones.
If only small gap has been adjusted between scrap-
er and drum then it may happen that there will be
a contact between scraper and drum when the
Machine turns.
Contact scrapers made of Polytan (OPTION)
• Loosen bolts (1) and move scraper (2) towards the drum.
