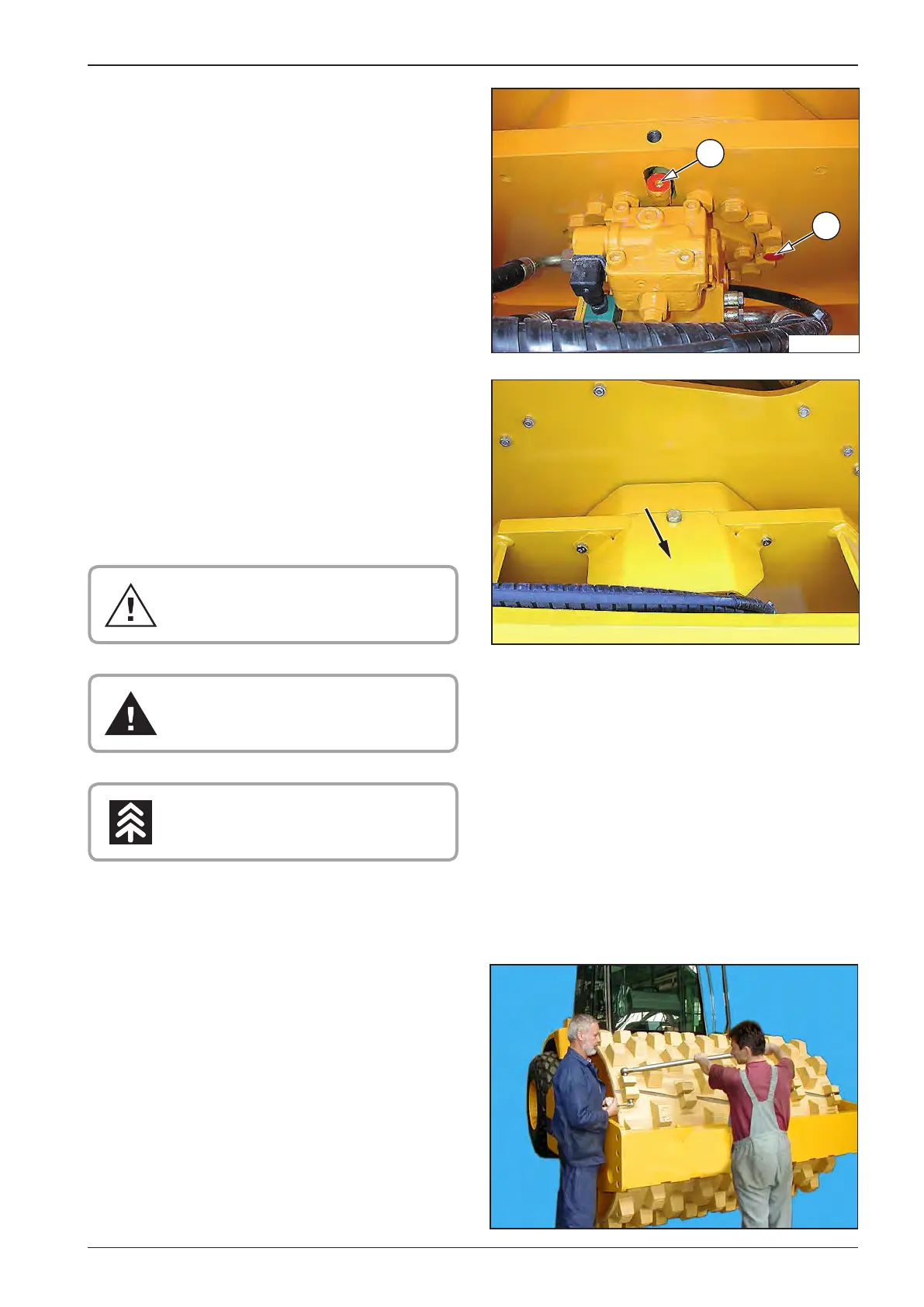

3.6.15. Pad foot segments inspection
• Before inspection is made, clean the segment surface, and
mainly round bolted connections. Check overall condition
of the segments (any ssures, deformations) and whether
M16 8G bolts are tightened with 200 Nm (147,5 lb ft) torque.
• Drum gearbox
• Clean the spot round the plug (1), unscrew and check oil
level. The level must be up to the hole or ow out slightly. Fill
in oil via the hole of plug (2). Clean the plugs and reinstall.
• Remove the cover before oil is lled in.
Replenish with the same type of oil.
Check oil only when oil gets cooled down.
Avoid any oil leakage into the ground.
