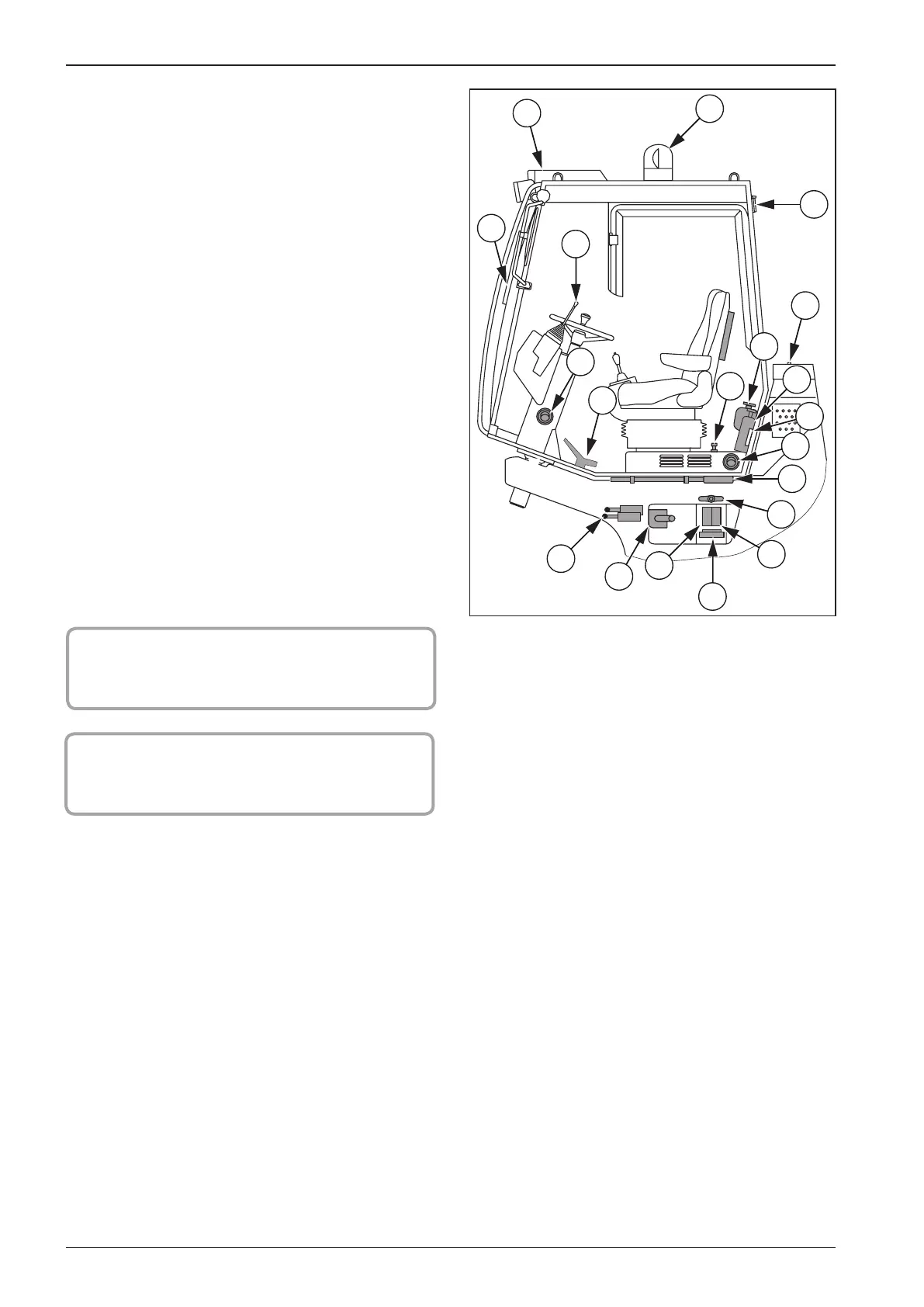

2.6. Actuators and dashboard instruments
12 - Socket for beacon, for hand lamp
13 - Battery disconnector
14 - Cab lifting / lowering switch (OPTION)
15 - Bonnet lifting / lowering switch (OPTION)
16 - Fuse for lifting actuator - cab/bonnet lowering 50 A (OP-
TION)
17 - Manual hydrogenerator for lifting / lowering
18 - Manual hydrogenerator joy stick
19 - Heater valve tie rod
20 - Heater breaths
21 - Fire extinguisher (OPTION)*
22 - Washer tank
23 - Drink holder
24 - Blade actuator hand-type (OPTION)
25 - Blade actuator foot-type (OPTION)
26 - Lifting levers - cab and bonnet lowering
27 - Cab ventilation lter
28 - Beacon
29 - Front wiper incl. screen washer
30 - Rear washer incl. screen washer
* Place for the installation of a re extinguisher holder.
! ATTENTION !
It is prohibited to operate the heating valve control
rod (19) while driving.
! ATTENTION !
The manufacturer recommends that the machine be
equipped with a re extinguisher.
