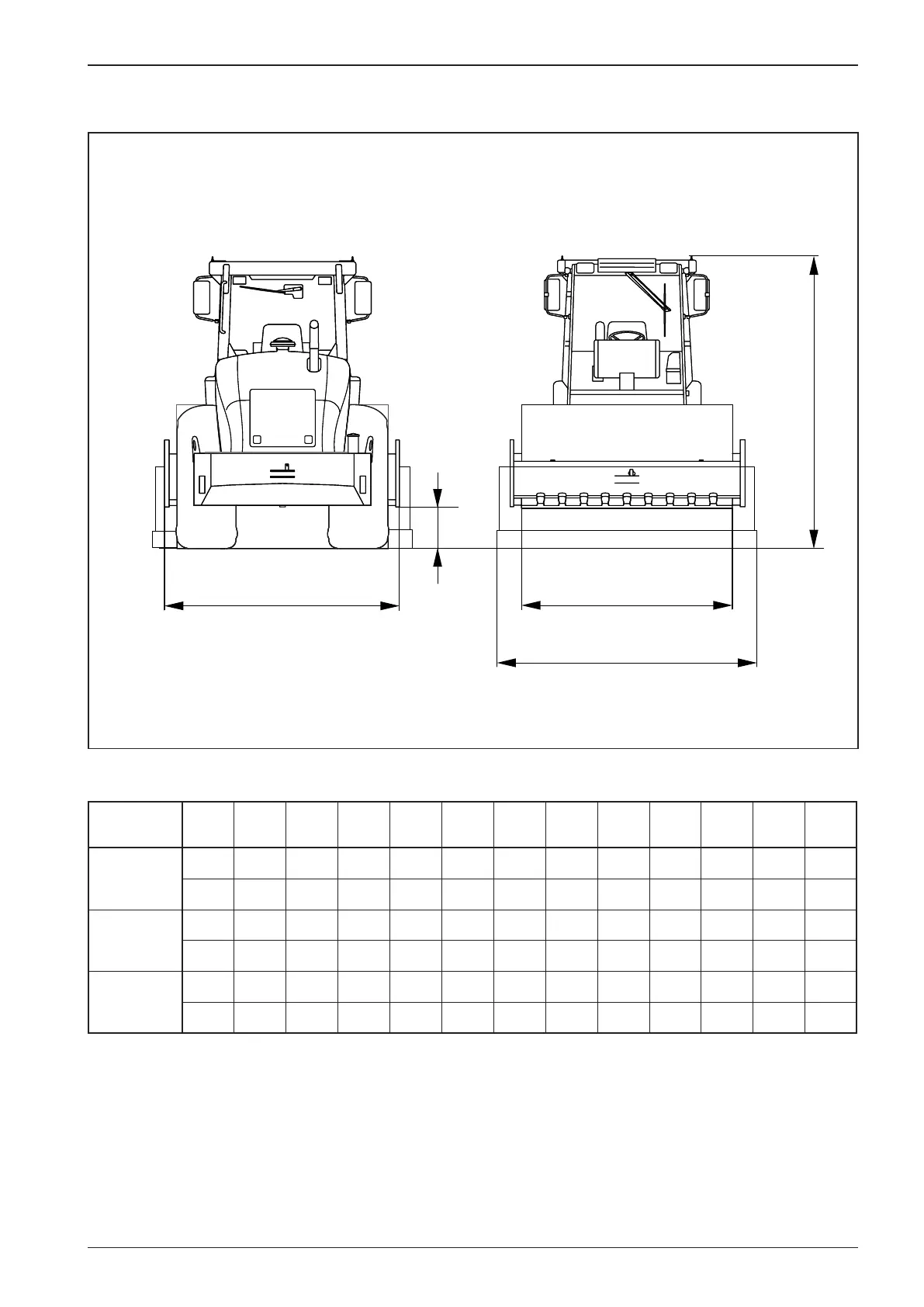

Ammann ASC 70 - Page 17

13ASC 70
274002
H
G1
W
W1
W2
SPECIFICATION MANUAL
mm
(in)
A D D1 G G1 H H1 L L1 T W W1 W2
ASC 70 D
2560 1300 - 385 350 2870 2280 5195 - 25 1680 1875 -
(100,8) (51,2) (-) (15,2) (13,8) (113,0) (89,8) (204,5) (-) (1,0) (66,1) (73,8) (-)
ASC 70 PD
2560 1240 1400 385 350 2870 2280 5195 - 15 1680 1875 -
(100,8) (48,8) (55,1) (15,2) (13,8) (113,0) (89,8) (204,5) (-) (0,6) (66,1) (73,8) (-)
ASC 70 PDB
2560 1240 1400 385 350 2870 2280 5195 5555 15 1680 1875 2215
(100,8) (48,8) (55,1) (15,2) (13,8) (113,0) (89,8) (204,5) (218,7) (0,6) (66,1) (73,8) (87,2)
