2.6. Actuators and dashboard instruments
2612
2703
596653

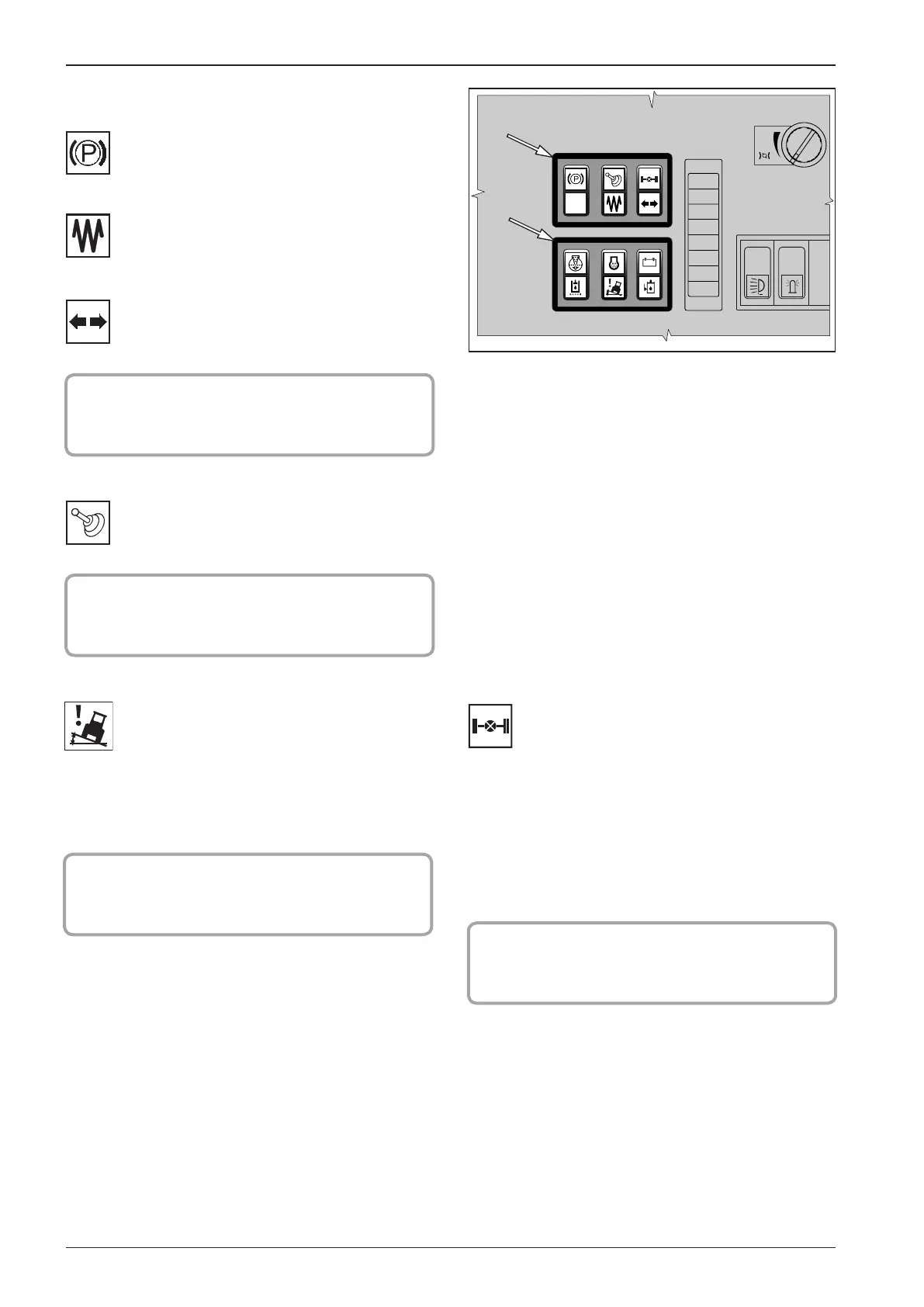

PILOT LAMPS (12)
Brake - pilot lamp ON, signals the Machine is braked.
Vibration - signals the vibration is ON via switch (6)
Direction lights
2489
! CAUTION !
Rapid ashing signals a failure (defective bulb).
Check function of direction lights.
Zero position of travel actuator - neutral (idle)
! CAUTION !
Check travel actuator in neutral before starting the
engine!
3400
ROPS2D (Roll Over Preventative System)
! CAUTION !
Vibration is unable to switch ON until Machine re-
turns to its safe bank.
Flickering indicator lamp incl. acoustic alarm will signal any haz-
ardous bank of the Machine during cross travel of Roller on the
slope, and vibration will stop simultaneously – lateral slip haz-
ard.
596116
The ATC centre dierential - Ammann Traction
Actuator
ATC pilot lamp is ON - the system is enabled with transport
speed controller switched OFF (switch identied with “hare”
symbol). ATC will work automatically when adhesion conditions
alter.
Note
If Roller is equipped with ATC system (inter-axle lock) the drum
slip limitation will not be used.
! CAUTION !
The ATC locker block can be enabled only at the ope-
ration speed.
