Ammann ASC 70 - Page 56

52 ASC70
396054
F10
F12
396108A
F11
F8 - 1A
F7 - 15A
F6 - 15A
F5 - 5A
F4 - 1A
F3 - 7,5A
F2 - 10A
F1 - 20A
396301C

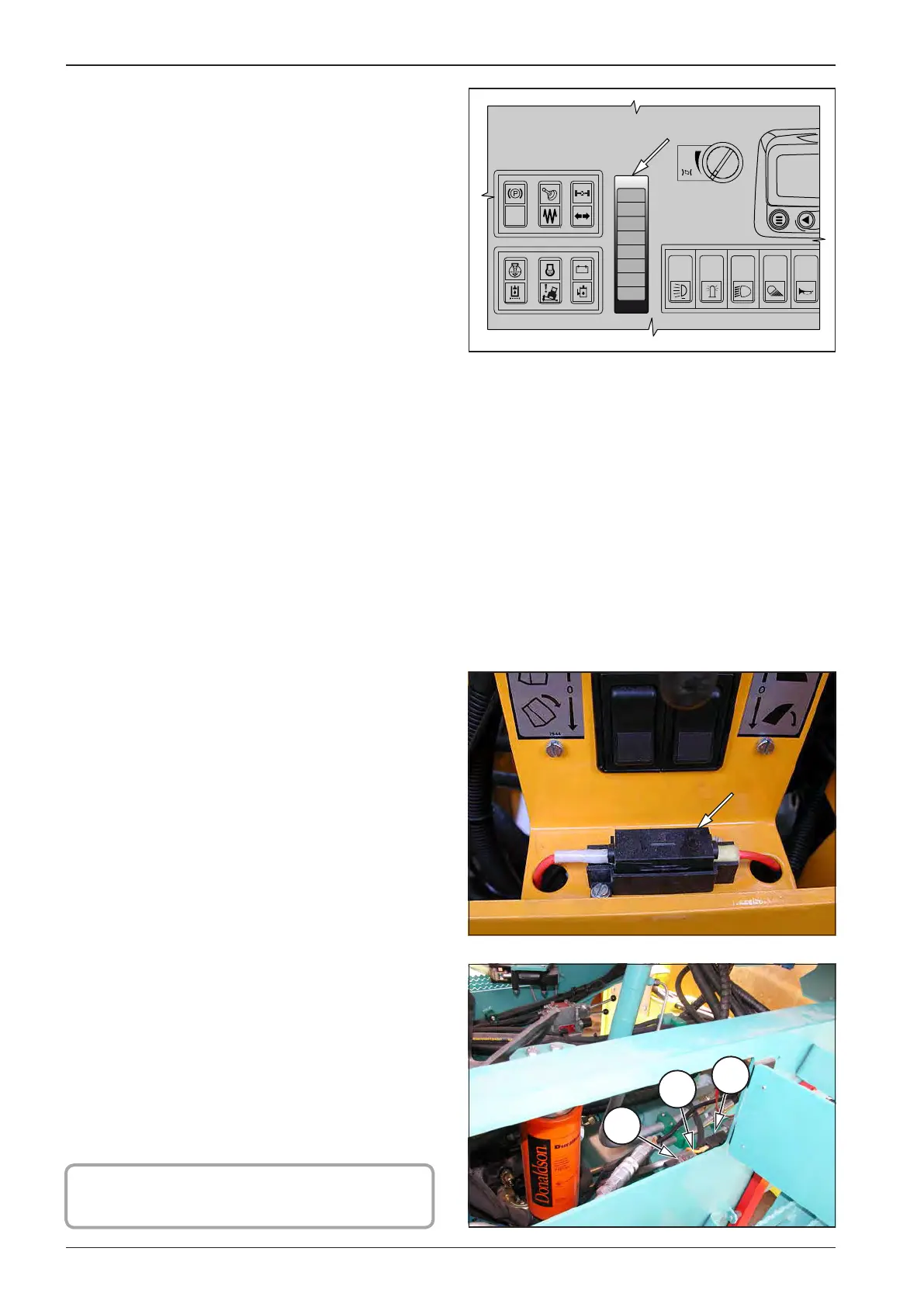

2.6. Actuators and dashboard instruments
Fuse block (13)
Fuse (F1) - 20 A (upper fuse) front + rear lamps, front fender
lights + rear lights, auxiliary headlamps, dash-
board instrument illumination, bonnet lifting
- lowering and Driver’s control stand,
Fuse (F2) - 10 A cab light, loud horn, direction indicator lights,
beacon.
Fuse (F3) - 7,5 A brake, engine STOP, travel, vibration, brake
lights, return horn, hydraulic oil level indicator
lamp, vibration contact indicator lamp, brake
indicator lamp, indicator lamp for zero posi-
tion of travel actuator
Fuse (F4) - 1 A POWER VIEW, J1939 socket power supply
Fuse (F5) - 5 A hydraulic oil thermometer, indicator lamp for
vacuum in engine suction lter, regarding in-
dicator lamp, indicator lamp for hydraulic oil
lter fouled, glowing indicator lamp, engine
rpm switches
Fuse (F6) - 15 A ventilation and heater fan, front wiper and
rear wiper, front washer and rear washer
Fuse (F7) - 15 A reserve (air conditioner / ROPS2D)
Fuse (F8) reserve
Fuse (F9) - 50 A
Electrohydraulic unit (aggregate) for bonnet lifting/lowering
and Driver’s control stand.
Engine fuses
Fuses (F10) - 125 A engine glowing
Fuse (F11) - 30 A engine electronics
Fuse (F12) car radio
! CAUTION !
Replace fuses only with fuses of identical value!!!
