2.7. Machine control and use
Cab - (1)
Bonnet - (2)
• Lever up - lifting
• Lever down - dropping
Electric-hydraulic control (optional)
• Connect wiring by turning battery disconnector (1). Press
pushbutton (2) to position “A“ to lift the cab, or pushbutton
(3) to lift the bonnet. To drop you must press pushbuttons
to position “B”.
Note
When unit (aggregate) is broken, or battery discharged, please
lift - drop the cab or bonnet by pumping on hand hydrogenera-
tor with the distributors adjusted as seen hereinafter. The dis-
tributors are located underneath the cab, inside the frame, on
LH side.

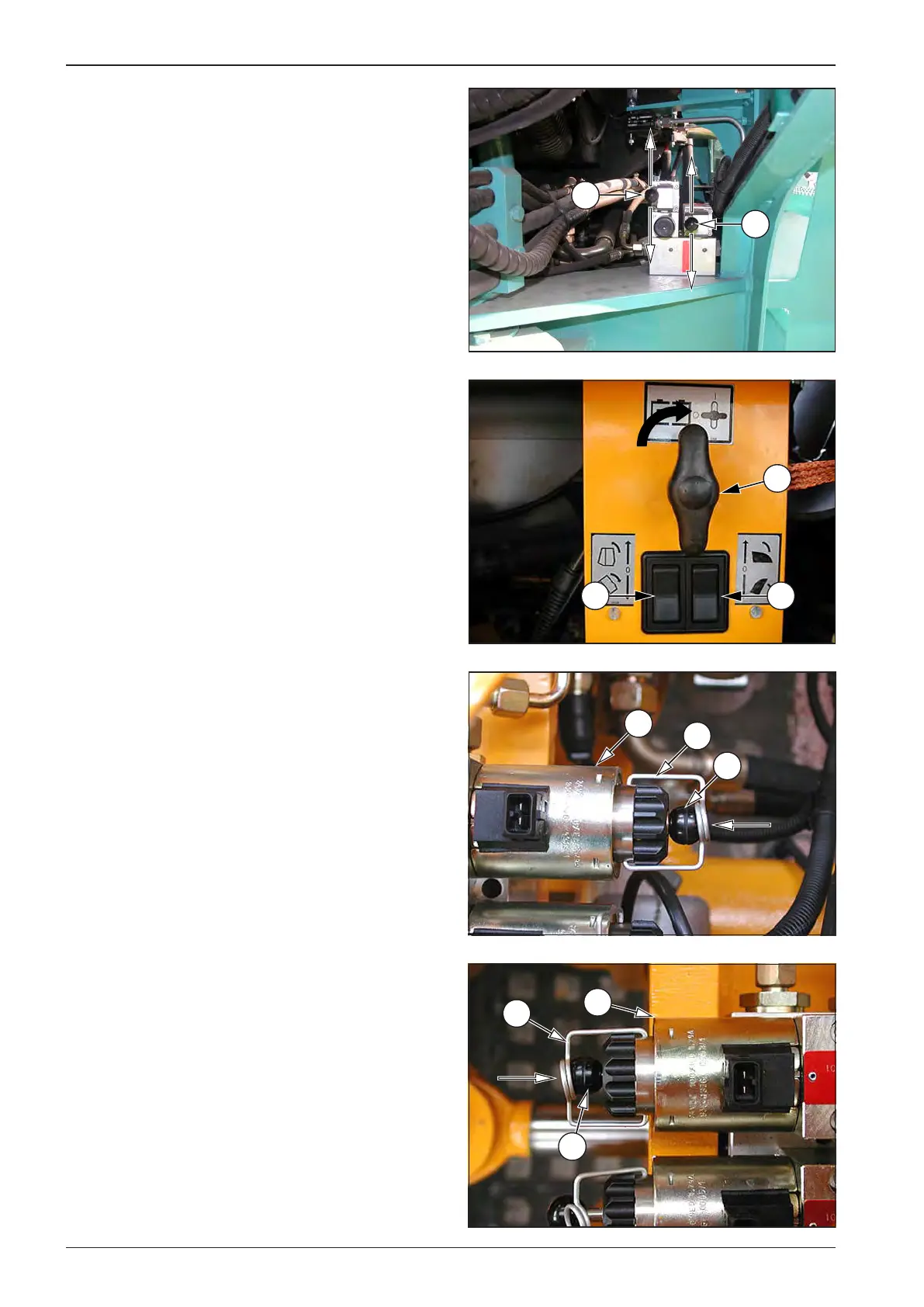

Cab
• To lift manually you must plug in the slide (1) on distributor
(A), secure with safety pin (2). Before dropping, please un-
lock the safety pin.
• To drop you must plug in the slide (1) on the second side of
distributor (A), secure with safety pin (2).
