14.2 High Level Interface Expander (BRD43HLI)
The High Level Interface board (BRD43HLI) provides RS232, RS485 and RS422 communications
for interfacing to various external systems.

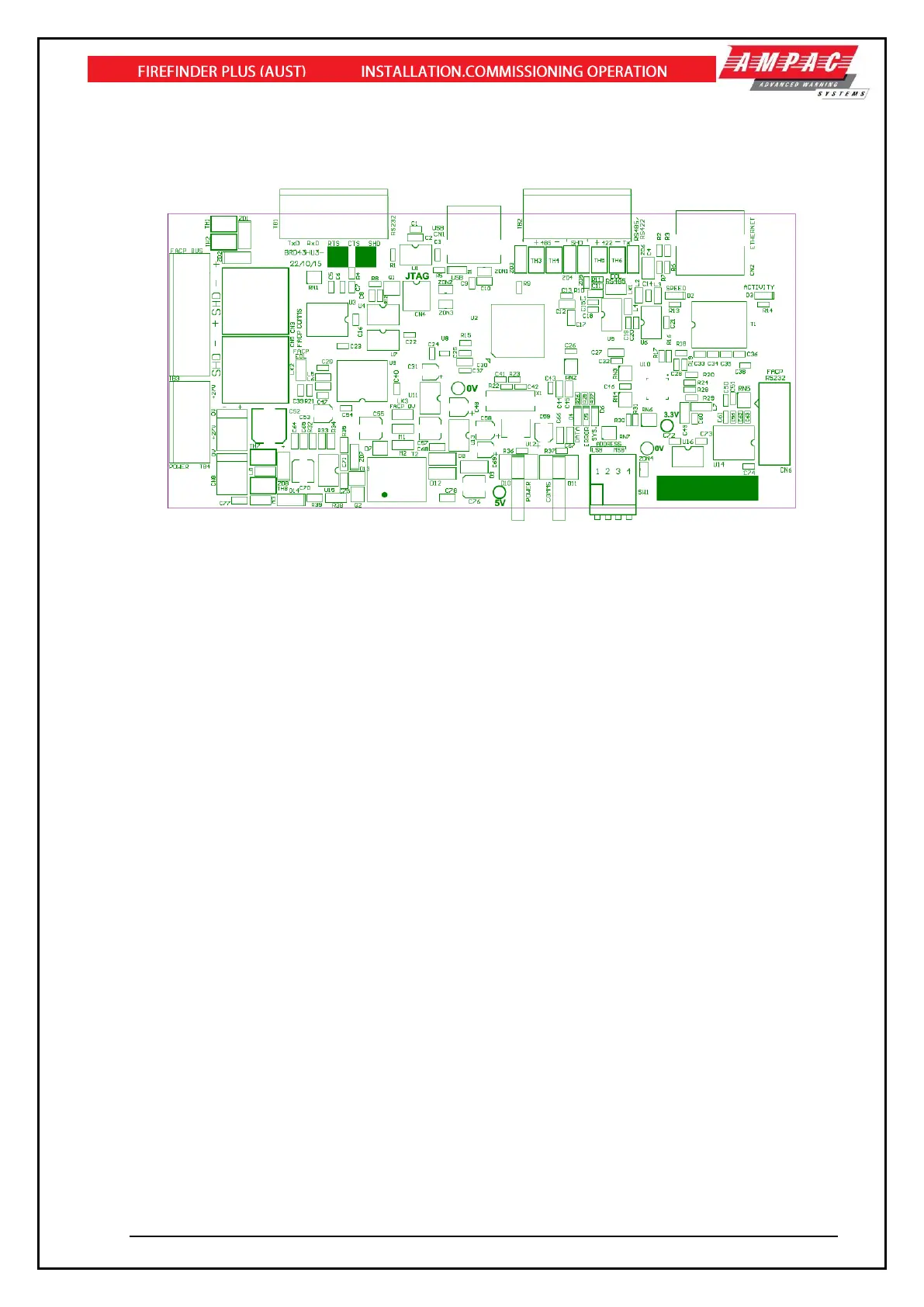

Figure 127: High Level Interface Expander PCB Layout
14.2.1 SmartView Graphics
RS232 or RS422
SmartView is an extensible web-based, client server application whose primary role is dedicated to
the monitoring and reporting of Ampac’s fire detection system events.
SmartView provides clear and precise alarm information using graphical and text formats.
