12.7 Zone Disable and Indicator Module
This module (BRD25GIB-F) has 8 switch and dual LED groups.
Each group can be associated to a single Zone.
The switch is used to disable the associated zone, while the LEDs are used to indicate the zone
status. The top LED is Red in colour and is used to indicate if the zone is in Alarm while the bottom
LED is Amber and is used to indicate both Fault (LED flashing) and Disable (LED steady).

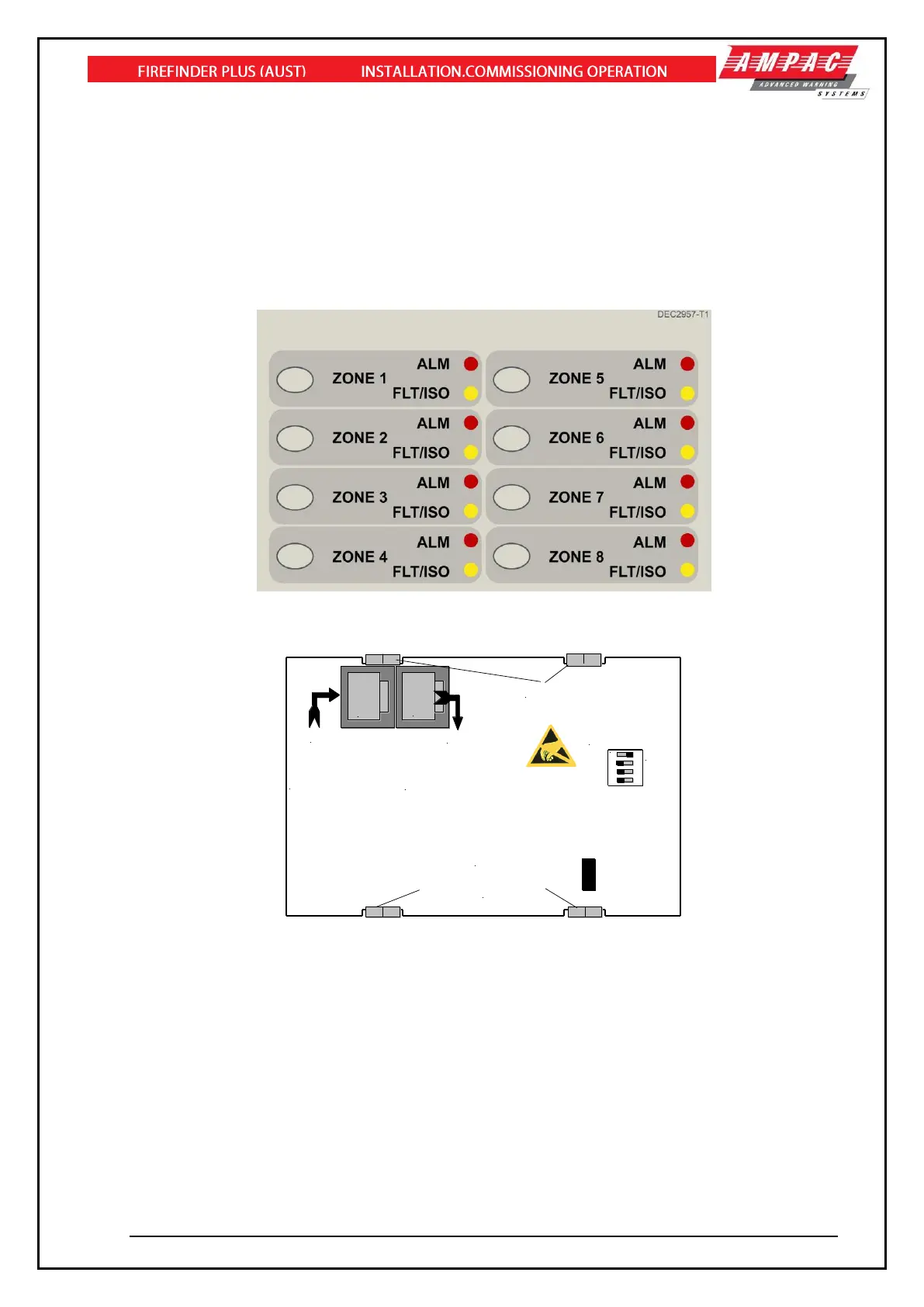

Figure 87: Zone Disable & Indicator decal (See LAB1483.doc for Slip in Label)
Fit EOL Termination Link
if Last Module
on Comms Bus
In
Out
Address SW
(See Note)
1 2 3 4
ON
C
N
1
C
N
2
RS485 Control
/ 27VDC
Comms In
Top Card &
PCB Securing Clips
Bottom Card &
PCB Securing Clips
RS485 Control
/ 27VDC
Comms Out
Figure 88: Module Rear View showing connectors and Address Switch
 Note: See Section 17 for Addressing Details (SW1)
