12.15.2 Mechanical
SmartTerminal is supplied in an ABS cabinet and consists of;
➢ The Main Card, with all controls and indicators mounted directly onto it
➢ 1 X Termination Board
➢ 2 X ABS door keys
➢ 2 X 003 Enable / Disable keys
➢ 2 X Jumper links
➢ 2A Power Supply ( only if internally powered )
Note: A Communications Extender Board will be required if the Comms Bus in the FACP is fully
utilised and / or if one is not fitted.

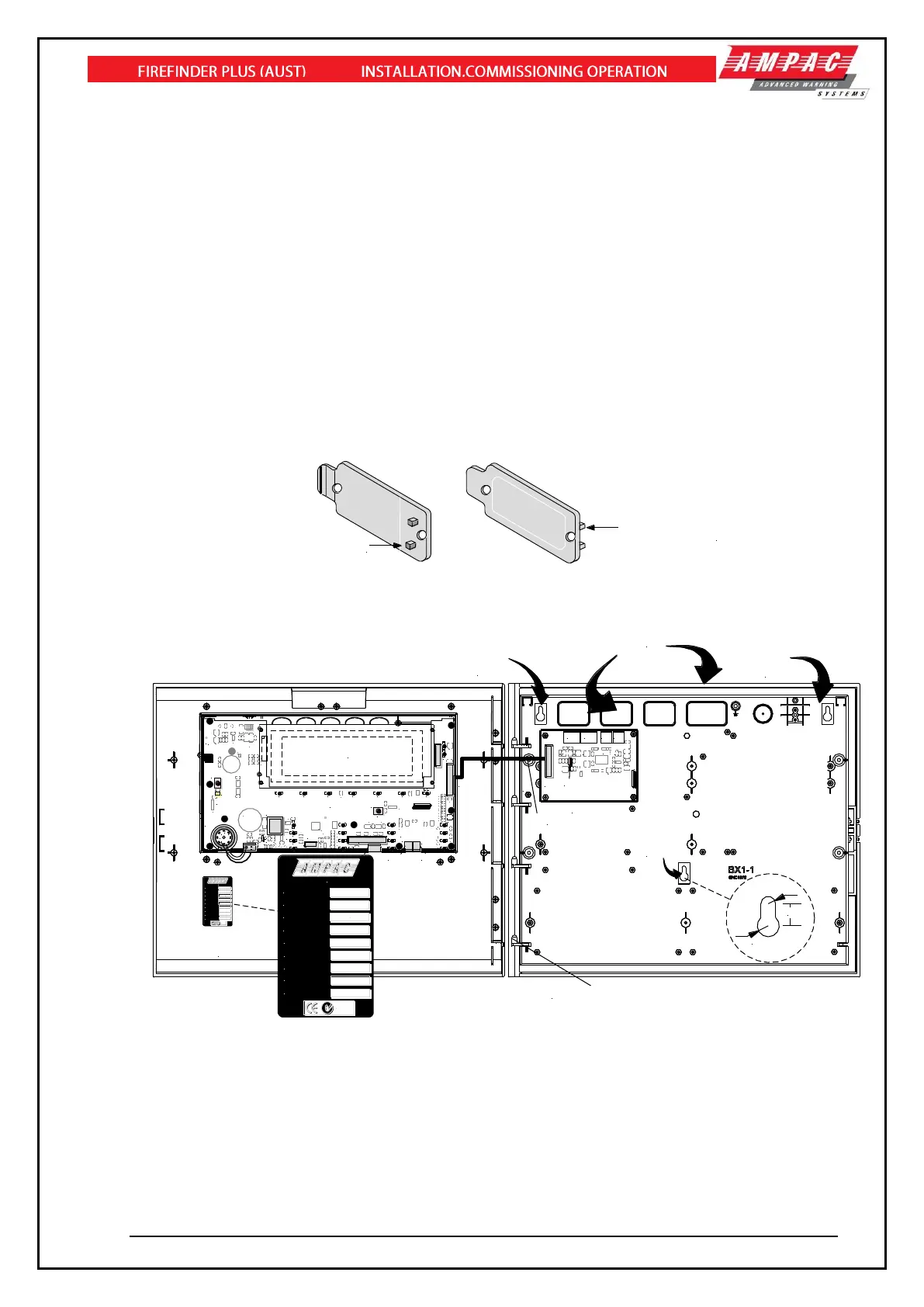

The front door of the ABS version is locked by way of two clips on the right hand side of the cabinet. A
special locating key which has two raised pins that are inserted into the side of the cabinet unlocks the
door.
