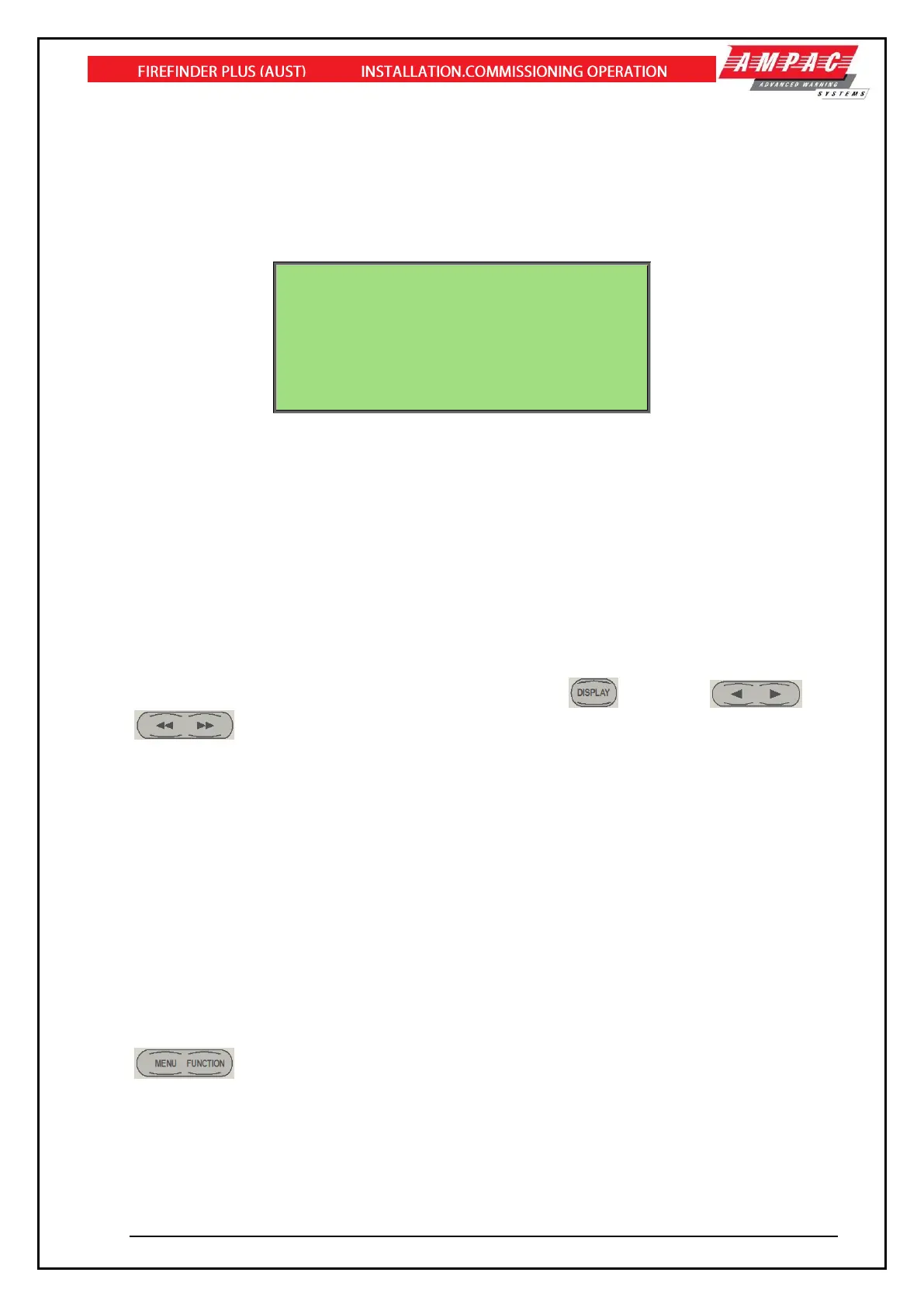

Figure 21: The Default LCD Display
This screen can be configured with the servicing company’s name and phone number via a laptop or
modem. The current date, time is set in the Function menu while system status is automatically
displayed.
AC: is the current Access Level (ie 2Z is access level 2 Zone mode & 2D would be access
level 2 device mode)
ALM: is the Alarm counter
PALM: is the Pre-Alarm counter
FLT: is the Fault counter
DIS: is the Disable counter
6.2 LCD Contrast
The Contrast can be adjusted using a combination or the button the and
buttons.
Keep the 'Display' button pressed while simultaneously pressing the '<' button to take the contrast
down 1 level, the '>' to take up the contrast by 1 level, the '<<' to take the contrast down by 8 levels or
the '>>' to take the contrast up by 8 levels.
Note: This button combination will only work in access level 2 or higher.
6.3 Accessing Functions and Menus
At Levels 2 and 3, access to the panel Functions are password protected.
A new panel has a pre-programmed password of 2222 for Level 2 and 3333 for Level 3.
Note: Only Authorised Service Technicians / Engineers have the ability to change passwords.
Note: All menus are provided with screen prompts and a “Quick Reference Guide” (see Section
22) guides the operator through the operation of the FACP.
From the DEFAULT DISPLAY, press MENU or FUNCTION. The FUNCTION menu is
password protected (actually a pass-number as it can only contain numbers) to prevent unauthorised
changes to the panel's configuration.
