Relay 1
Emergency Warning Condition
Emergency: Relay Closed (energised)
Quiescent: Relay Open (de-energised)
No Power: Relay Open (de-energised)
Relay 2
Test Mode
Disabled: Relay Closed (energised)
Enabled: Relay Open (de-energised)
No Power: Relay Open (de-energised)
Relay 3
Fault Relay
Fault: Relay Closed (energised)
No Fault: Relay Open (de-energised)
No Power: Relay Open (de-energised)
The Strobe Output functions as follows:
Strobe
Provides a Bi-polar output for driving Visual Warning Devices.
The output is monitored and requires 10kΩ 5% 1/3Watt EOL.
Allows for 8 x Ampac Xenon Strobes (208-0011) or 40 x Ampac LED strobes 4107-1005/6)
The 100V line Output functions as follows:
100V Out
Provides an isolated 100VAC Audio Output. Supports up to 3 branches.
The output is monitored. EOL value is 47kΩ 5% 1/3 Watt. For 2 branches use 100kΩ 5% ¼ Watt on
each branch, and for 3 branches use 150kΩ 5% ¼ Watt on each branch.
12.17.2 Front Panel Switch and Indicator Module

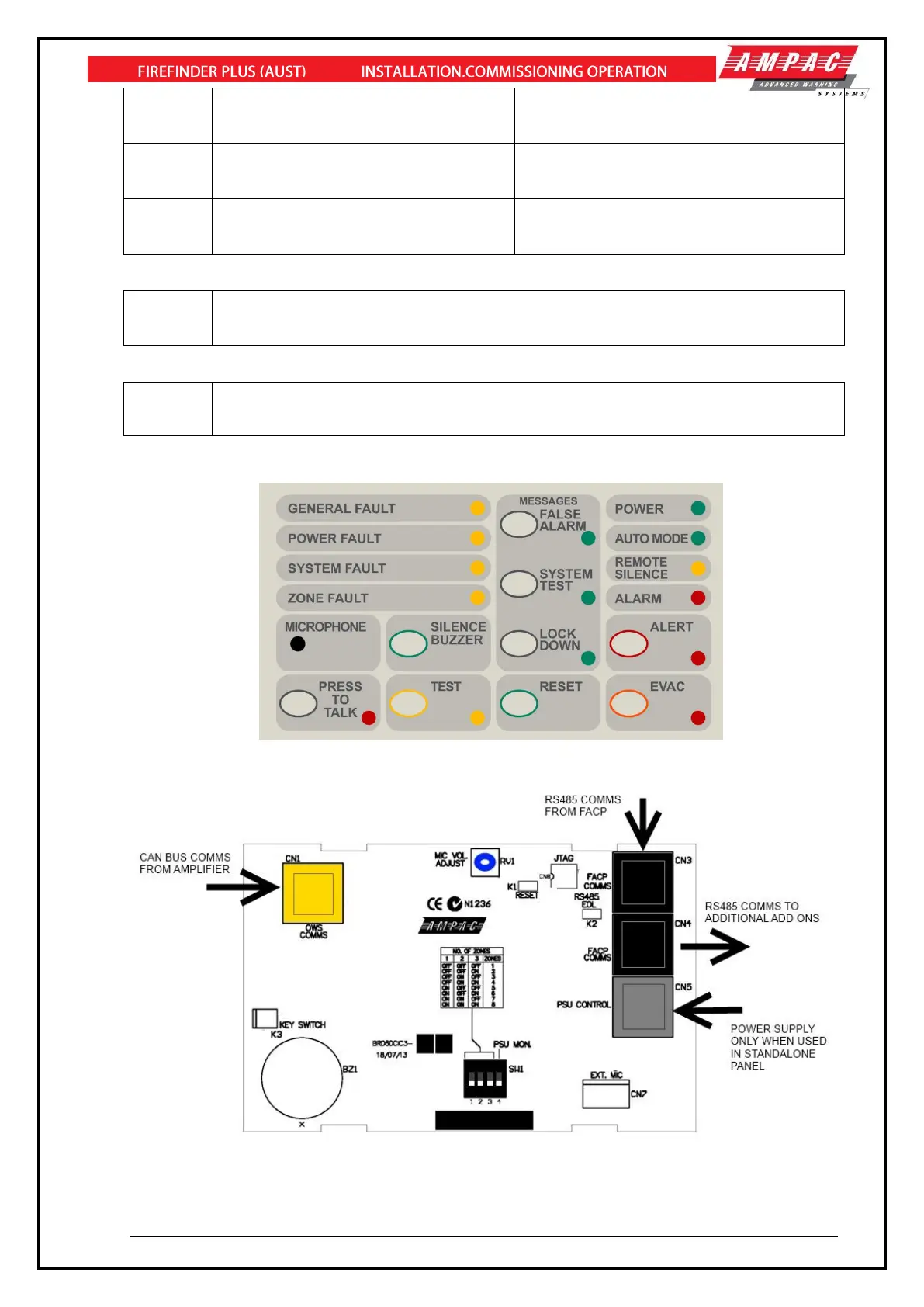

Figure 116: OWS Control Module Front
Figure 117: OWS Control Module PCB
