12.15.6 SmartTerminal Controls and Indicators
All controls, except for the controls Enable / Disable Keyswitch, are of a momentary push button style
and operate in exactly the same way as does the FACP itself.

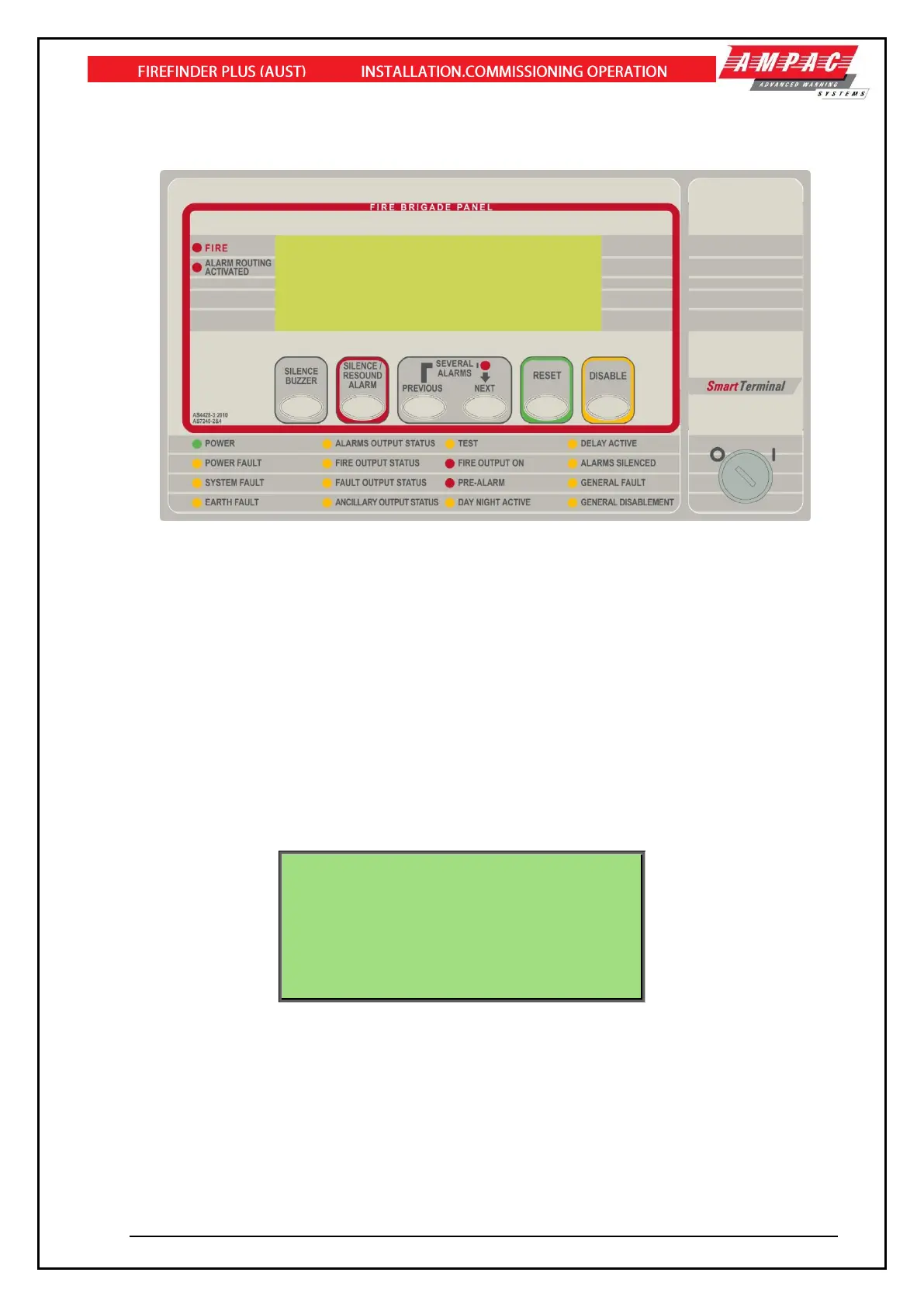

Figure 102: SmartTerminal Front Panel Layout
12.15.7 SmartTerminal Screen Format
There are 3 events that can be reported and displayed by SmartTerminal. The types of event are;
➢ Fire
➢ Faults and
➢ Disables.
The types of events are only associated with devices and detectors hence faults associated with
modules, loops O/C – S/C, power supplies and so forth are not reported on the LCD.
The SmartTerminal has front panel indicators for each type of event. When SmartTerminal is
configured not to report a type of event and that event type is present (and the corresponding front
panel indicator is illuminated on the SmartTerminal), then a standard information screen is displayed
on the LCD stating the system is not normal and the operator should see the FACP.
Alarm: If configured the screen format for reporting loop / device / zone fire condition is:
FIRE – ORIGIN:Zzzz RECENT:Zzzz TOTAL:XXX
----------------------------------------
Zzzz FIRE
<zone descriptor>
<date> <time> CONTROL*
ZONE FIRE XXX OF XXX DEVICE►
----------------------------------------
