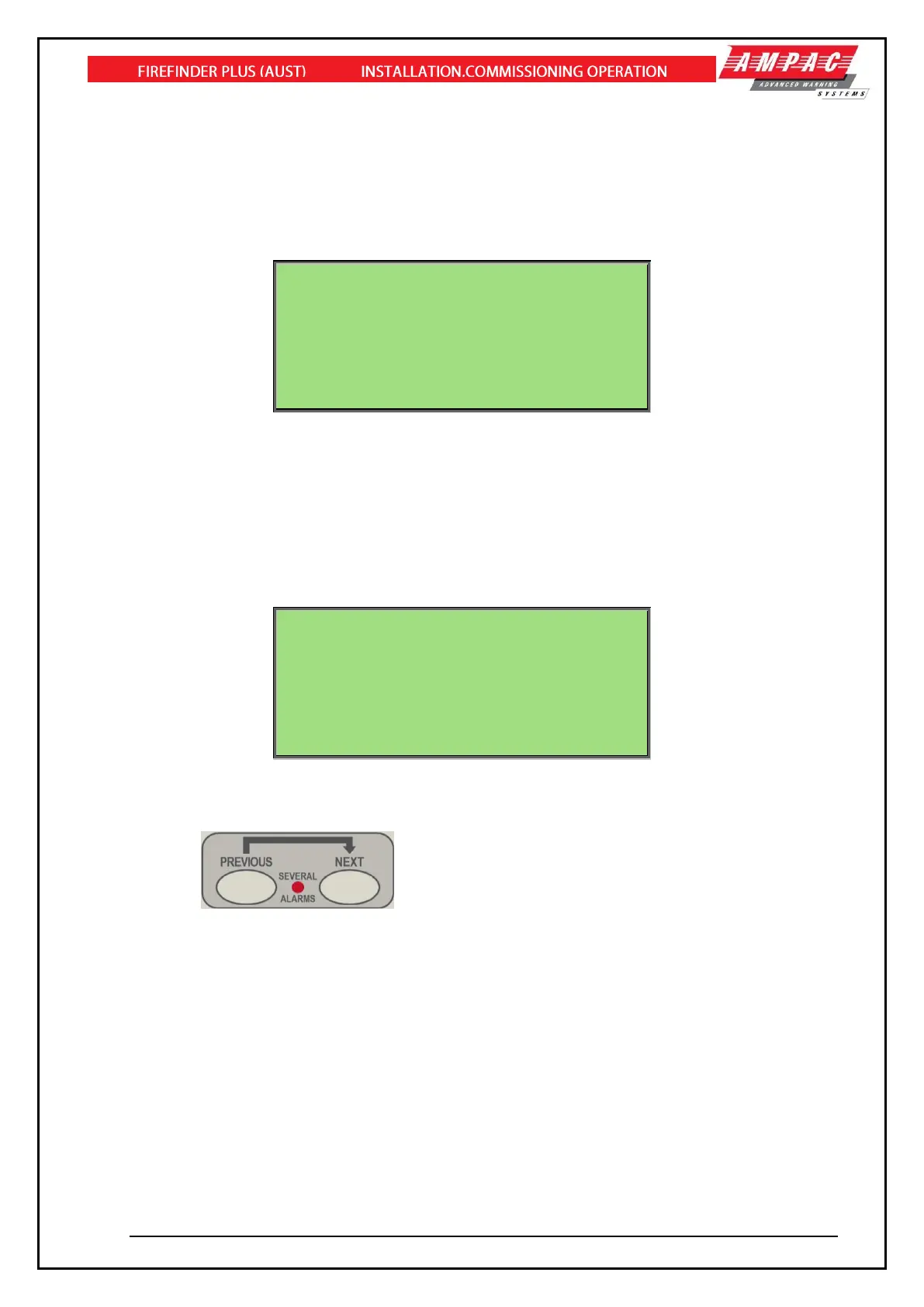

Page 44
8.3 Day/Night
Press The DAY-NIGHT SETTINGS screen will appear. Time entry is the same as setting the
“Time” facility. Note this Function is available at Access Level 3 only.
Press To enter the DAY ON time.
Press To enter the NIGHT ON time.
Press To ENABLE / DISABLE
DAY-NIGHT SETTINGS – CURRENTLY DISABLED
DAY ON TIME 08:00 NIGHT ON TIME 18:00
0:DAY TIME 1:NIGHT TIME 2:ENABLE
SELECT NO
AC:3Z ALM:0 PALM:0 FLT:0 DIS:0
Figure 56: DAY-NIGHT SETTINGS Menu
For this Function to have control it must be ENABLED by press Re-pressing will toggle to
DISABLE.
8.4 Logs
Press to access the EVENT LOG MENU will be displayed.
The LOGS MENU allows the operator to select and view the events that have occurred.
EVENT LOG MENU (MAXIMUM SIZE = 2000)
0:ALARM 1:FAULT 2:DISABLE 3:SYSTEM
4:I/O 5. ERASE ALL LOGS 6. WDOG
SELECT NO
AC:3Z ALM:0 PALM:0 FLT:0 DIS:0
Figure 57: DAY-NIGHT SETTINGS Menu
Once the type of log is selected, e.g. FAULT, each entry can be viewed by stepping through them
using the buttons
Note: Pressing and require access level 3.
The type of log, number and totals logged, date and time of the ALARM, FAULT, DISABLE, SYSTEM
or I/O as well as device information will be displayed. The SYSTEM screen displays events and
watchdog activity. From these screens the operator can select two other facilities, they are;
PRINT ENTRY will print out the displayed information if a printer is installed, or
SHOW OPTIONS allows the operator to select how the Logs are viewed.
To VIEW BY ENTRY NUMBER, to VIEW BY DATE or to PRINT MULTIPLE ENTRIES. In
each case the screen will ask for the appropriate information (ENTRY NUMBER or DATE) to be
entered before the selected option will be displayed.
