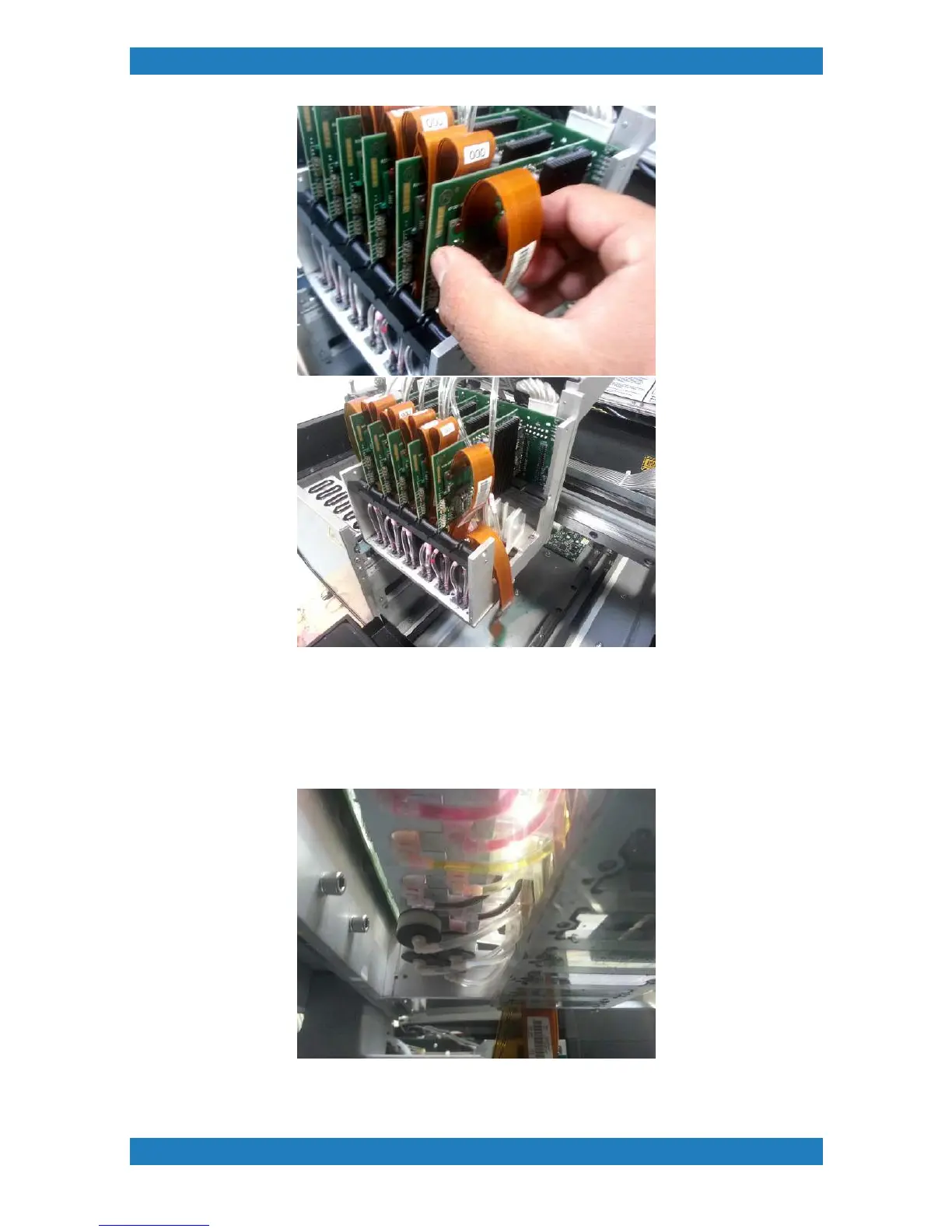

Photo 3.1.2

4. Remove the Damper Retainer. The damper retainer will have two phillip screws one on each side.

4. We always recommend replacing both dampers. Each damper has a elbow connecting at the bottom.

Reach underneath the carriage and carefully disconnect the elbow from the dampers. The white ink dampers

will have valves attached to them. See photo 3.1.3

Anajet mPower i-Series ServiceManual
