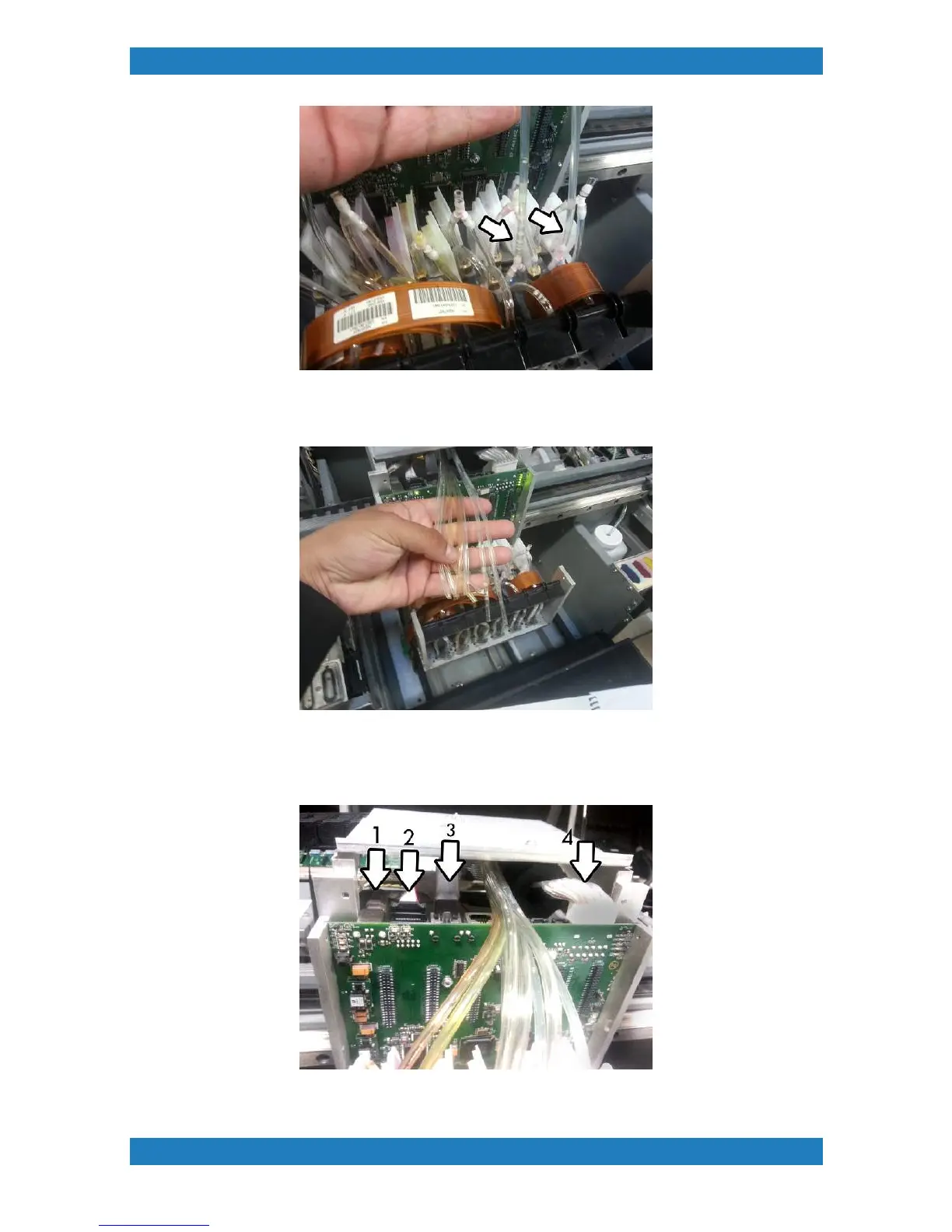

Photo 3.2.5
6. You should now have all tubes loose and cut from the carriage. See photo 3.2.6
Photo 3.2.6
5. We can now disconnect all cables from the Ricoh Carriage controller. You will have a total of 4
cables to disconnect. See Photo 3.2.7
See Photo 3.2.7
6. To remove the tubing from the black plastic E-chain we must remove the top carriage
