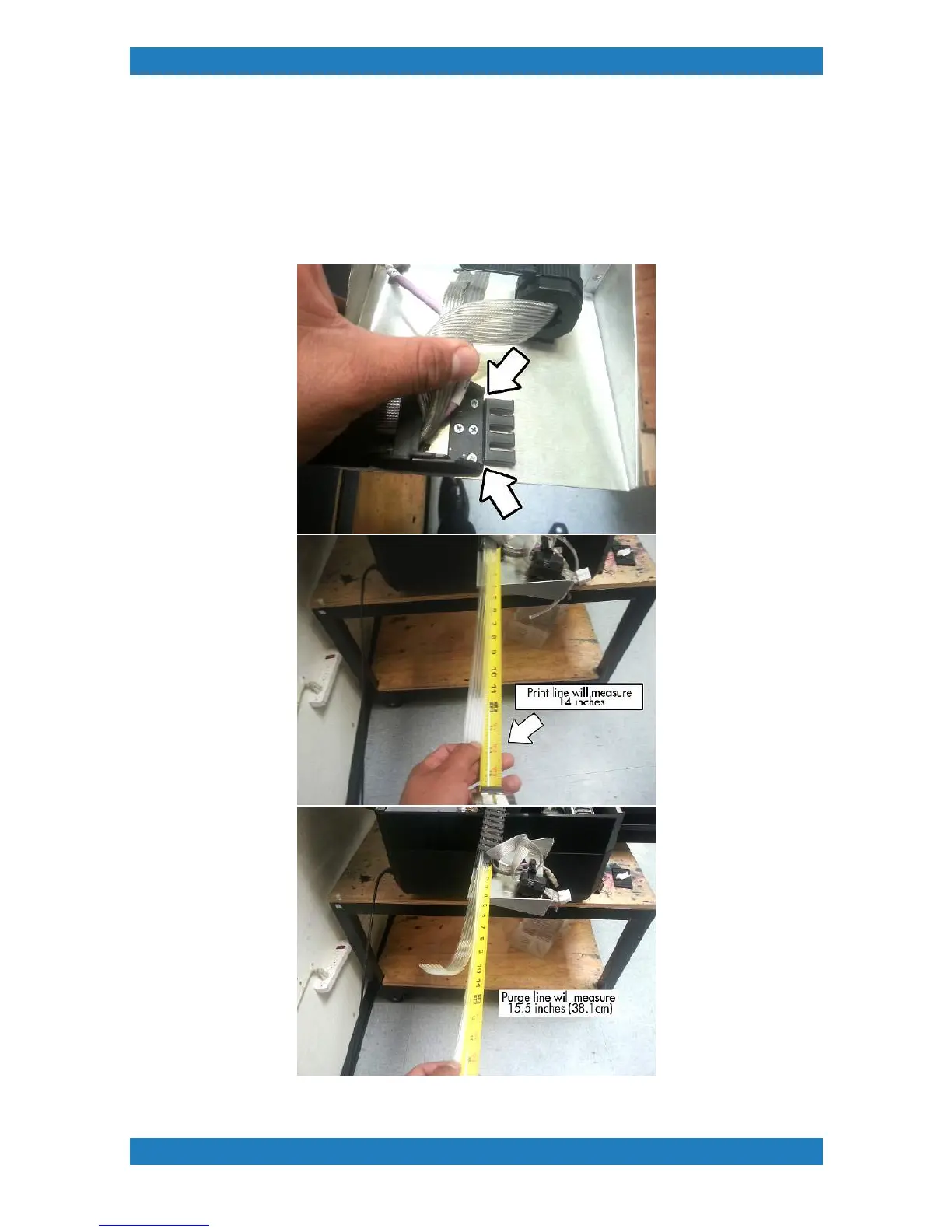

3. When the tubes come out on the other side of the E-chain the following measurements are needed.
Measure from the edge of the E-chain. These measurements are very important, use a marker to make a
guide line on the tubes. See photo 3.2.3
Print Lines 14 inches from E-chain.
Purge Tubes 15.5 inches from E-chain.
Photo 3.2.3
