3-9 Interference Analyzer (IA) Menu Maps Interference Analyzer (Option 25)
3-28 PN: 10580-00349 Rev. H Spectrum Analyzer MG
Sweep Menus

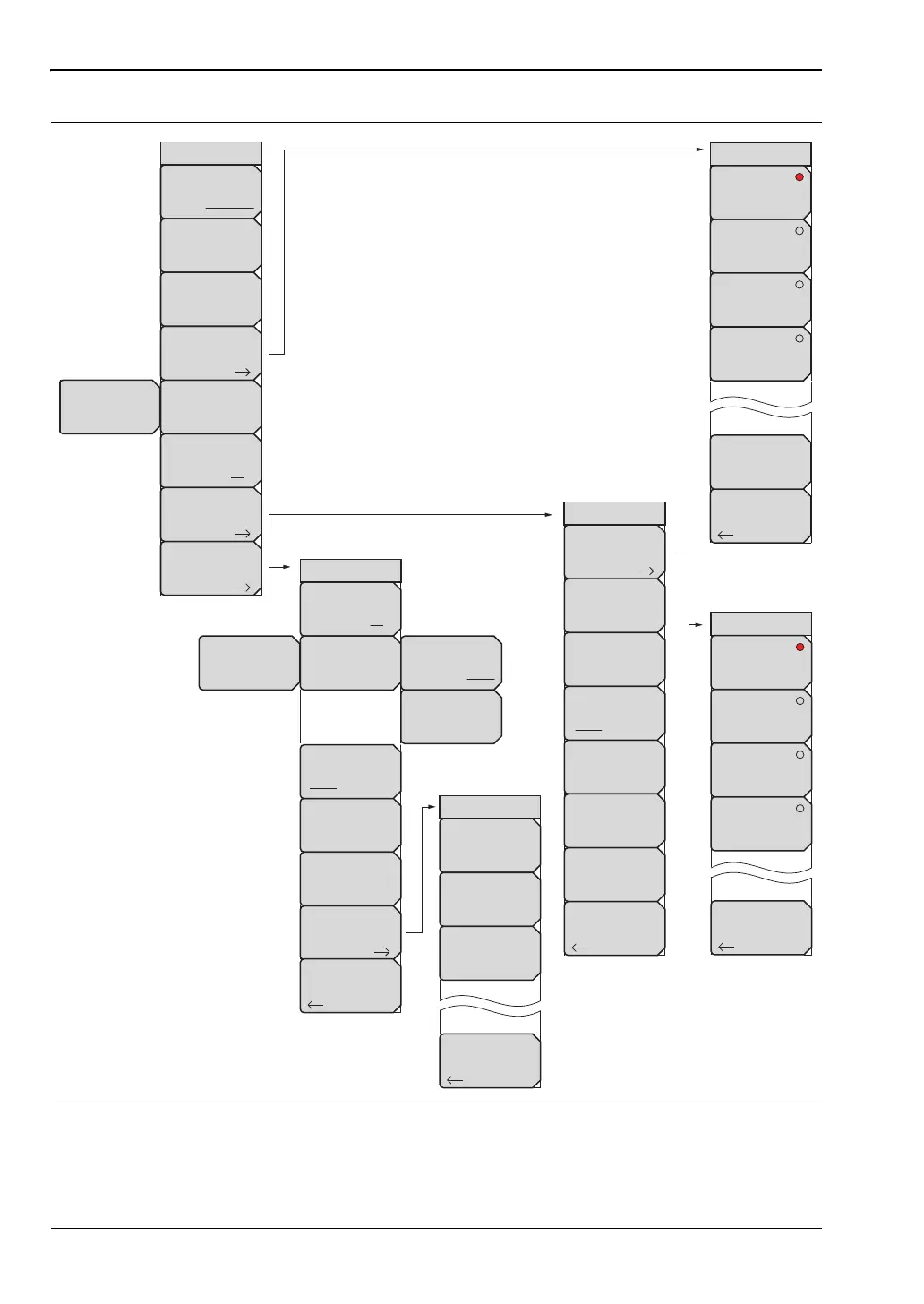

Figure 3-20. Sweep Submenu Keys
Sweep Mode
Back
Performance
No FFT
Show Help
Fast
Trigger Source
External(TTL)
Video
Free
Run
Triggering
Delay
-1.0 %
Hysteresis
N/A
Holdoff
N/A
Force Trigger Once
Level
N/A
Slope
Rising Falling
Back
Source
Sweep
Auto Sweep Time
On Off
Sweep Time
100 ms
Triggering
Sweep
Single Continuous
Sweep Mode
Sweep Once
Sweep 10
Averages
Zero Span Time
100 ms
Displays
in Zero Span
Gated Sweep Setup
Requires
Option 90 or
551 or 883
Gate View
Settings
Gated Sweep
Off On
Gate Setup
Back
Gate Source
External
Gate Delay
60 ms
Gate Length
25 ms
Gate View Settings
Back
Zero Span RBW
100 kHz
Zero Span VBW
30 kHz
Zero Span Time
500 ms
MS2720T, MT8220T
only
Burst Detect
Back
IF Power
(MS2720T only)
Zero Span only
Not allowed in Zero Span
Gate Polarity
Rising Falling
Not applicable in Zero Span
Gated Source
External IF Pwr
IF Trig Level
10 dBm
MS2720T only
Gate Source
GPS (TD-LTE)
MS2712E/13E and
MT8212E/13E only
(requires GPS Option 31
and Option 551 or 883)
