Chapter 2 — E-Series Tracking Generator 2-7 Generator Menu
Tracking Generator MG PN: 10580-00339 Rev. C 2-13
Transmission Measurement Menu
Key Sequence: Measure (Shift + 4) > Generator [Generator = ON] [Generator Mode = Tracking]
> Transmission Measurement
Normalize: Press to toggle Normalization On or Off. When turned On, a
calibration process is started. Make a THROUGH connection between the
tracking Generator Output and the Spectrum Analyzer Input connectors
before performing normalization. For the most accurate results, use the
same cables and adapters that will be used for the normalization as will be
used for the measurement. The current state (Off or On) is underlined.
Relative Ref: Press to set the value of the top graticule line in dB relative to
the THROUGH connection that was made when normalization was
performed.
Relative Scale: Press to set the scale factor from 1 dB/division to
15 dB/division in 1 dB steps.
Transmission Statistics: Press to display the Transmission Measurement
Statistics table displaying the received spectrum analyzer Maximum,
Average, and Minimum relative power of each frequency range sweep.
Transmission Offset: Sets the offset for the normalized trace. Offset value
is displayed in the Transmission Measurement Statistics.
Back: Press to return to the “Generator Menu” on page 2-11.

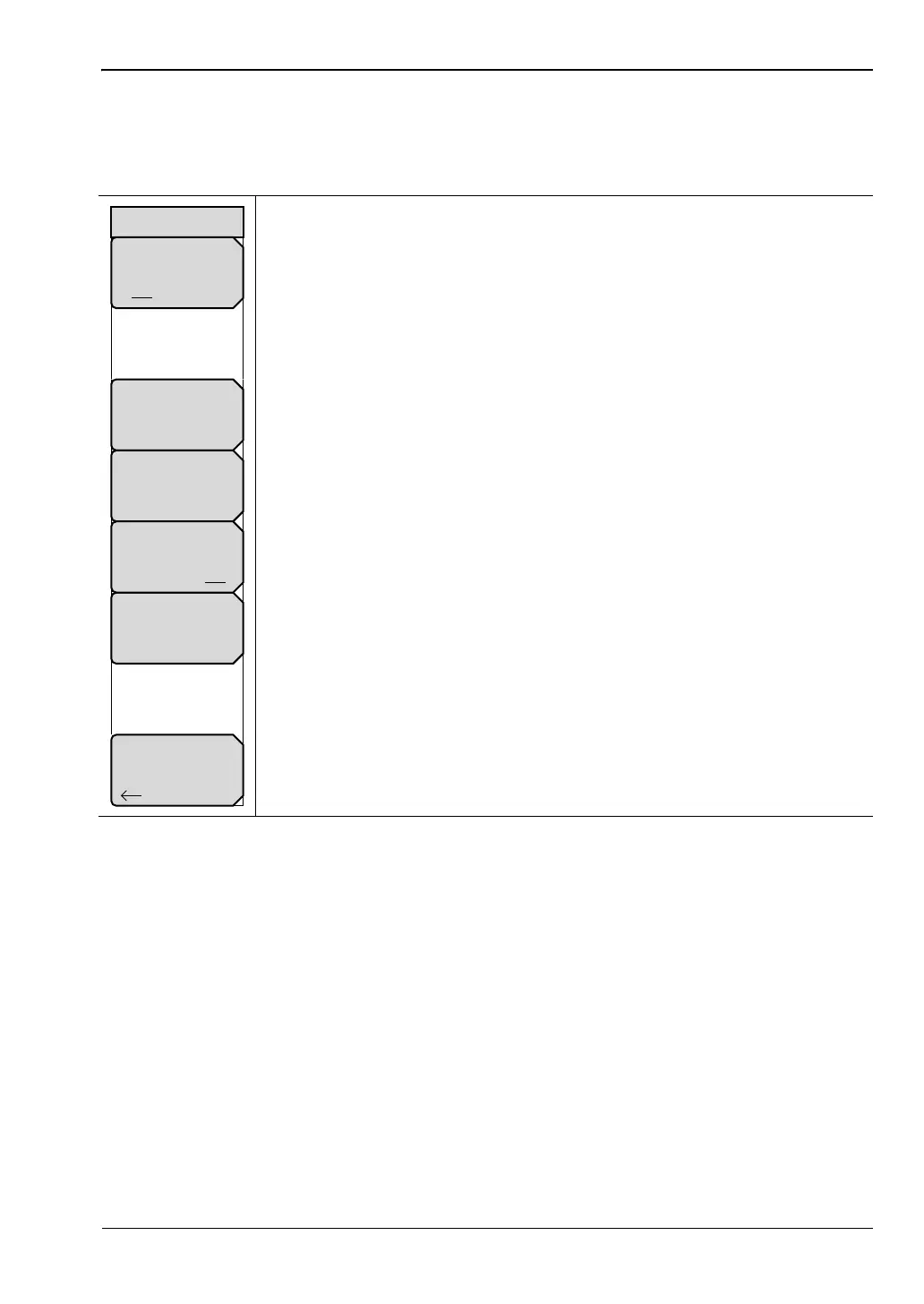

Figure 2-13. Transmission Measurement Menu
Relative Ref
10.0 dB
Relative Scale
10 dB/div
Transmission
Offset
0.0 dB
Transmission
Statistics
Off On
Transmission
Normalize
Off On
Back
