WiMAX Summary
The WiMAX Summary is a summary of critical Mobile WiMAX measurements from the RF
and Demodulator measurements: Channel Power (RSSI) in dBm, Downlink Burst Power
in dBm, Preamble Power in dBm, Occupied BW in Hz, Uplink Burst Power in dBm,
RCE (rms) in dB, RCE (pk) in dB, EVM (rms) in %, EVM (pk) in %, Carrier Frequency in Hz,
Freq Error in Hz, CINR, Base Station ID, and Sector ID.
1. Press the Measurements main menu key.
2. Press the WiMAX Summary submenu key. The sample image in Figure 3-14 may differ
from any image on your instrument.

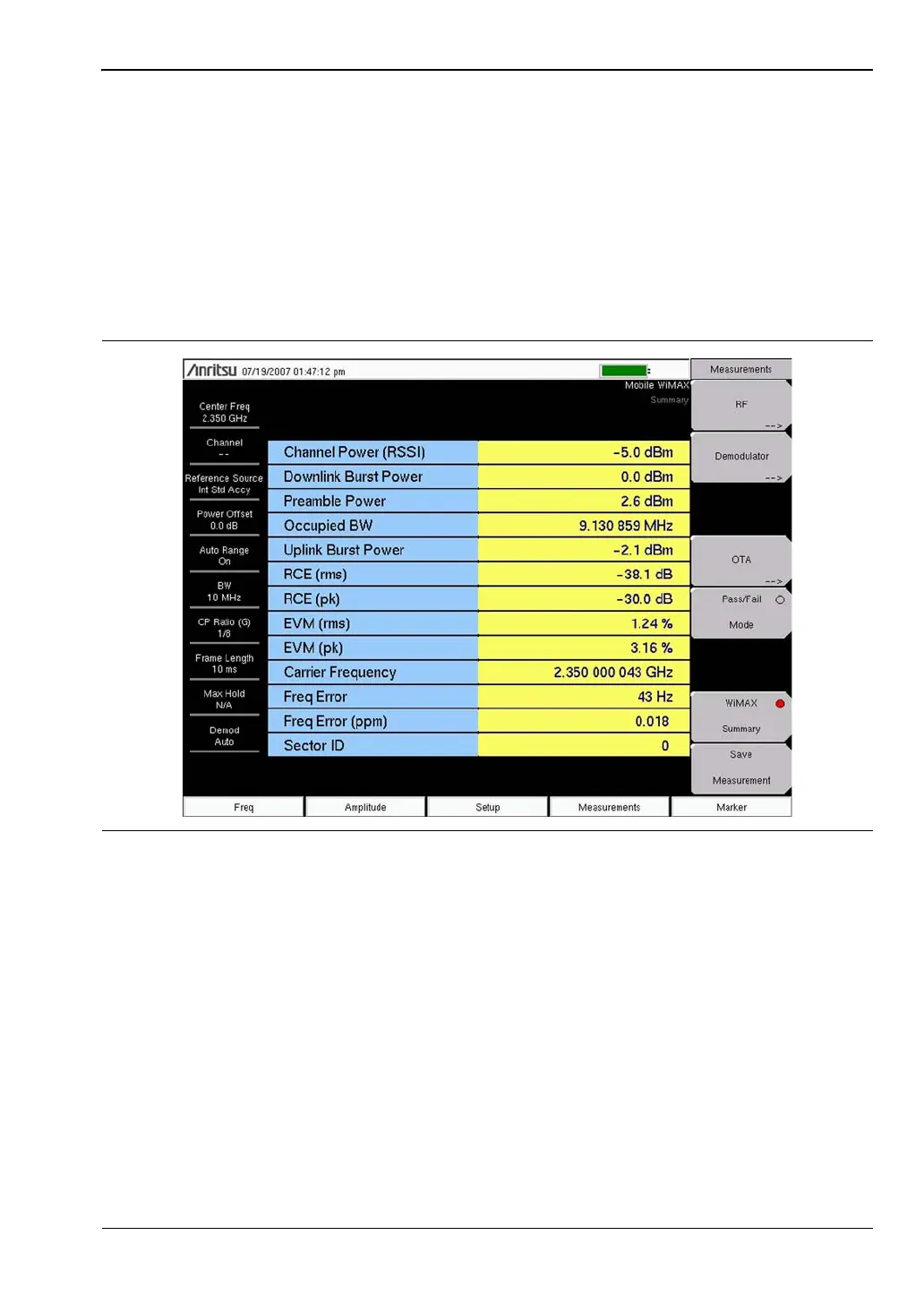

Figure 3-14. Mobile WiMAX OTA WiMAX Summary Measurement
