Chapter 3 —Mobile WiMAX Signal Analyzer 3-4 Mobile WiMAX RF Measurements
WiMAX MG PN: 10580-00236 Rev. D 3-5
Power versus Time
The Power versus Time view shows the time domain view of a Mobile WiMAX signal over
approximately one frame. The screen also displays Channel Power (RSSI), Downlink Burst
Power, Uplink Burst Power, and Preamble Power. The sample image in Figure 3-2 may differ
from any image on your instrument.
Press the Power vs Time submenu key to select the measurement.

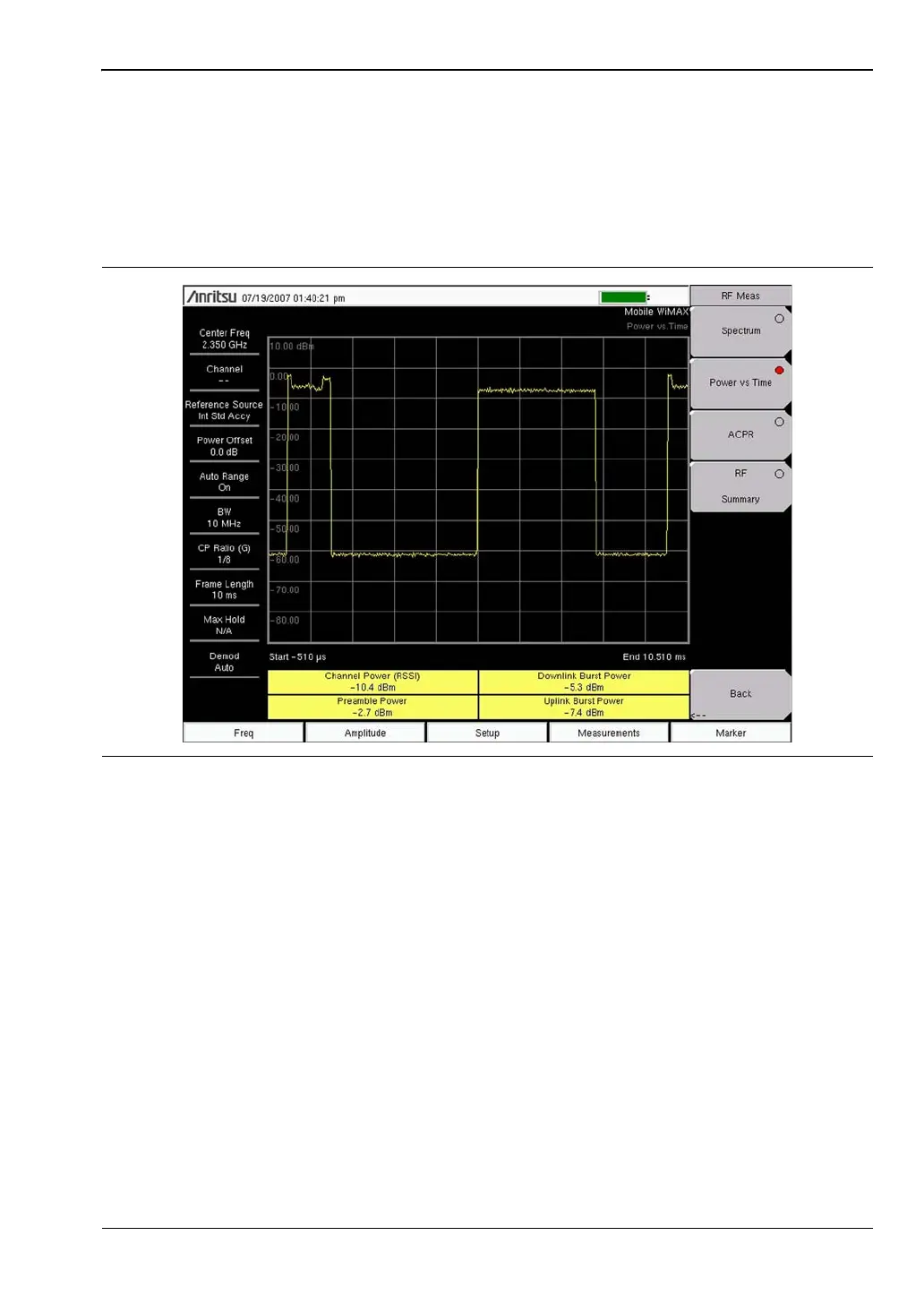

Figure 3-2. Mobile WiMAX Power versus Time Measurement
