Chapter 3 —Mobile WiMAX Signal Analyzer 3-5 Mobile WiMAX Demod Measurements
WiMAX MG PN: 10580-00236 Rev. D 3-11
EVM versus Symbol
This view shows the EVMRMS values versus OFDM symbols. The numerical results that are
displayed in this view are: RCE (rms) in (dB), RCE (pk) in (dB), EVM (rms) in (%), EVM (pk)
in (%), Freq Error in (Hz), Freq Error (ppm), Carrier Frequency (Hz), and Sector ID. The
sample image in Figure 3-8 may differ from any image on your instrument.
Press the EVM vs Symbol submenu key to select the measurement.

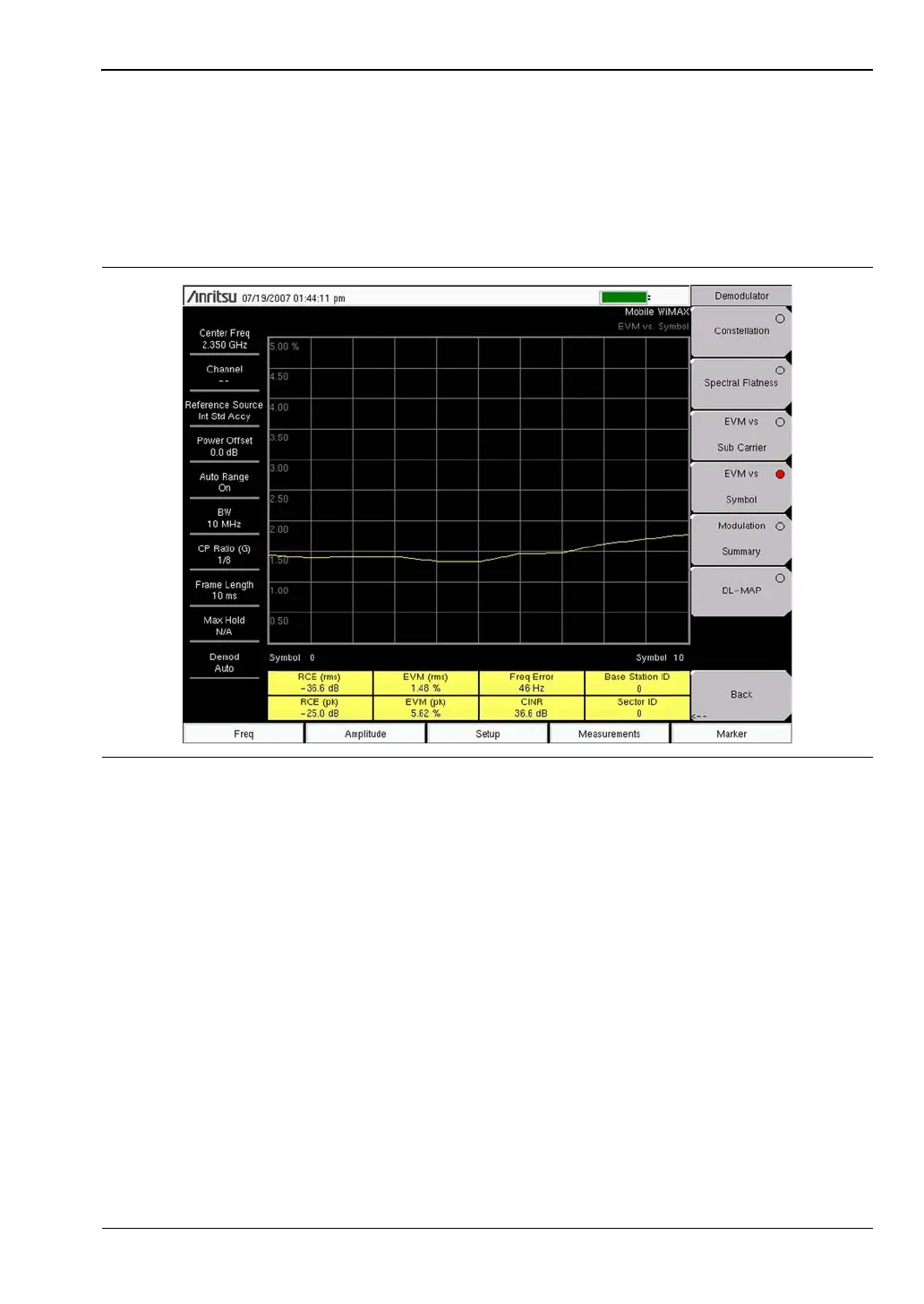

Figure 3-8. Mobile WiMAX Demodulator EVM versus Symbol Measurement
