3-4 Mobile WiMAX RF Measurements Chapter 3 —Mobile WiMAX Signal Analyzer
3-6 PN: 10580-00236 Rev. D WiMAX MG
Adjacent Channel Power Ratio (ACPR)
The ACPR view shows one main channel and two adjacent channels on each side (5 channels
total). This view also displays the power levels for each channel (both absolute and relative).
The channel spacing matches the selected bandwidth, and the channels are color coded. The
sample image in Figure 3-3 may differ from any image on your instrument.
Press the ACPR submenu key to select the measurement.

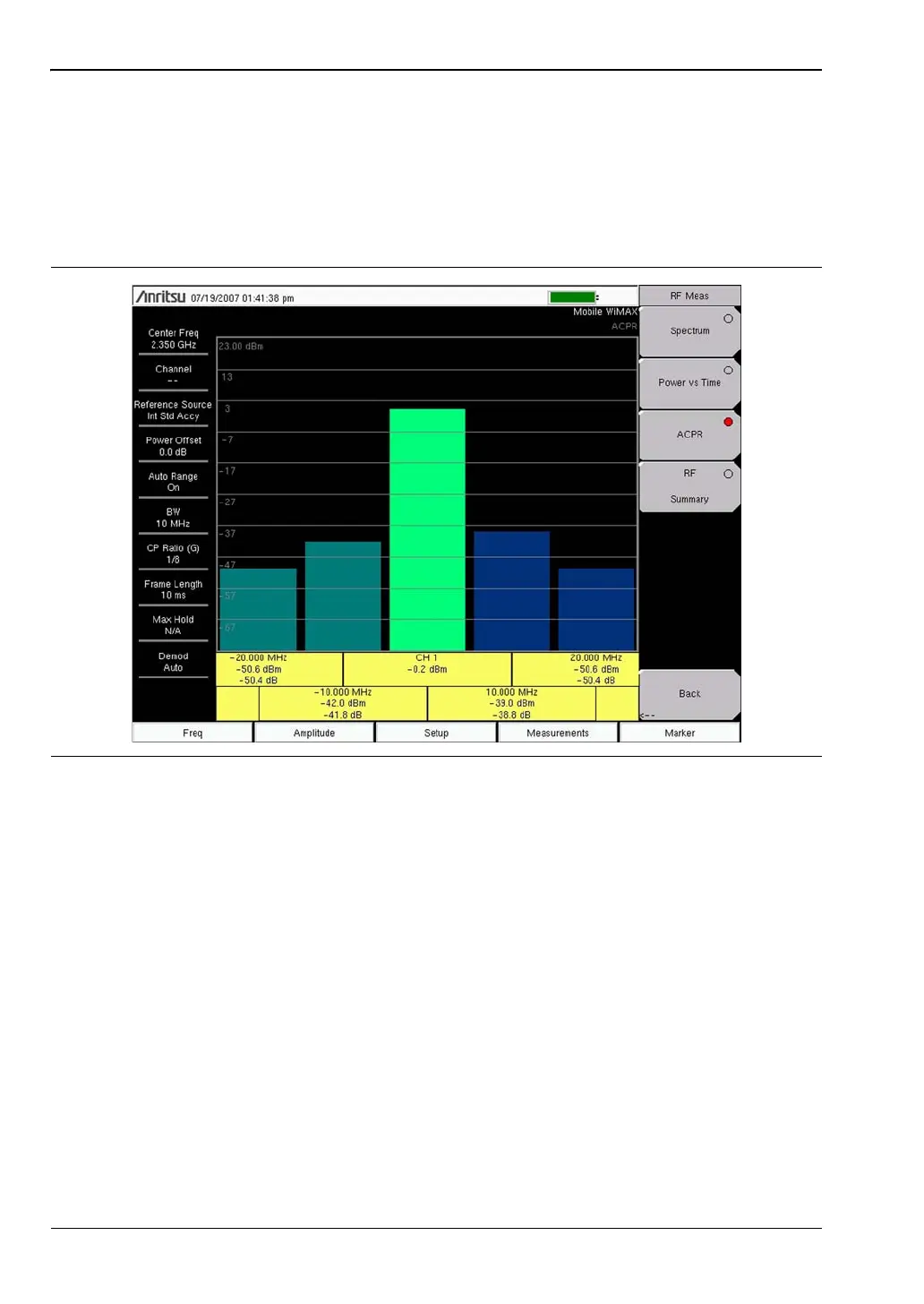

Figure 3-3. Mobile WiMAX ACPR Measurement
