Anritsu Spectrum Master MS2720T User Manual

EVDO Signal Analyzer 3-14 Measurements Menu
3GPP2 MG PN: 10580-00235 Rev. D 3-29
Demodulator Menu (Continued)
MAC CDP Table: This screen shows the power of the codes in a tabular
format. The table displays the following 4 columns:
Code number
Status: RA, Active, Pilot, Page, Sync, All Traffic (Color Coded rows)
Power (in dB, relative)
Power (in dBm, absolute)
Code Utilization is displayed in percent (%) at the bottom of the
table. It is a number indicating how many codes are used by a
particular user (traffic).
Modulation Summary: Pressing this submenu key displays a summary of
all the modulation-related numerical measurement results in a table
format, with rows for: Pilot & MAC Power, Channel Power, Rho Pilot,
Rho MAC, Rho Data, Rho Overall1, Rho Overall2, Data Modulation,
Noise Floor, RMS Phase Err, Freq Error, and Tau.
Back: Returns to the “Measurements Menu” on page 3-25.

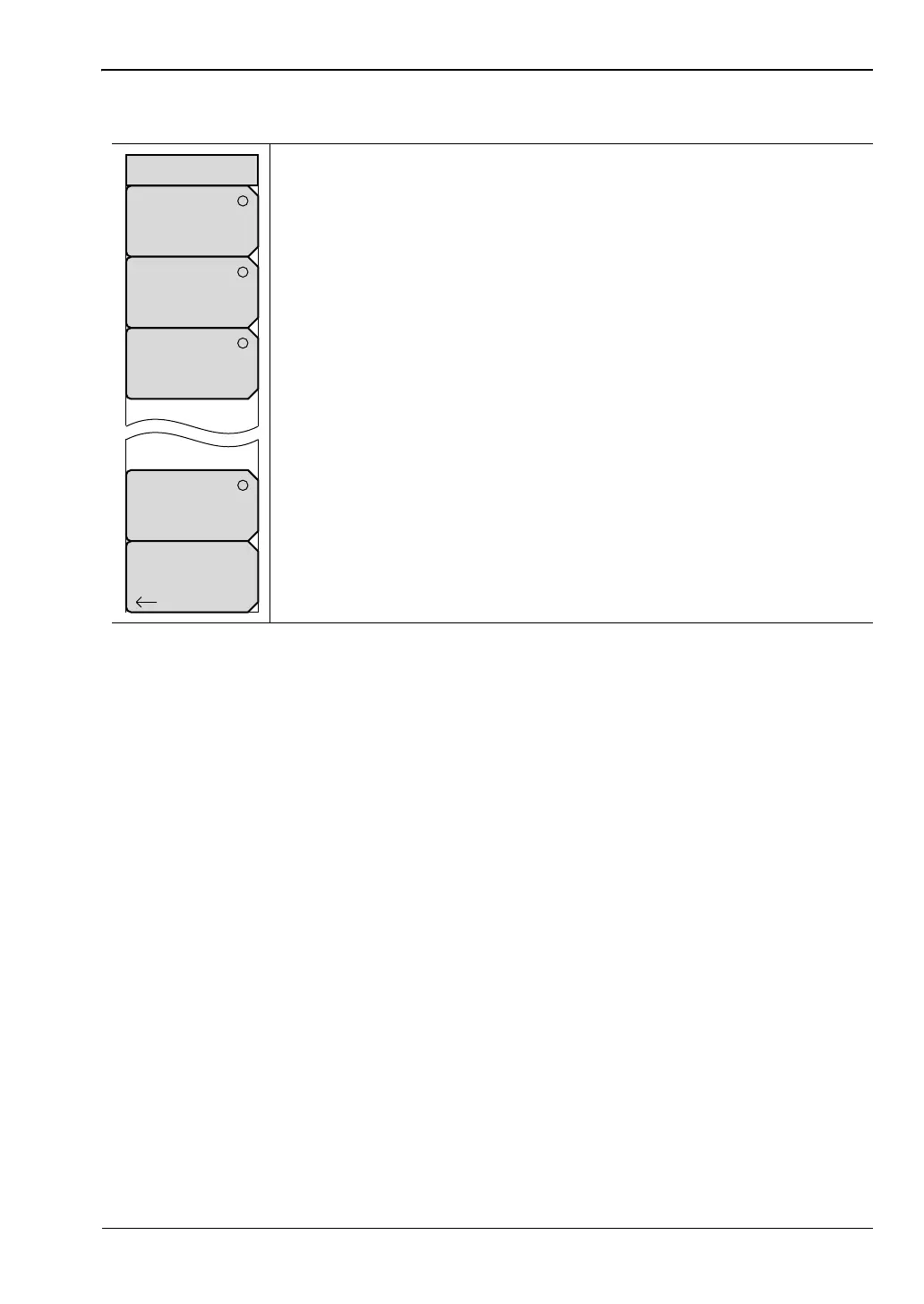

Figure 3-24. EVDO Demodulator Menu (2 of 2)
Demodulator
MAC CDP Table
Modulation
Summary
CDP MAC
CDP Data
Back
