2-7 Generator Menu Chapter 2 — E-Series Tracking Generator
2-12 PN: 10580-00339 Rev. C Tracking Generator MG
Settings Menu
Key Sequence: Measure (Shift + 4) > Generator > Settings
Ext Gain/Loss: Sets the tracking generator (GENERATOR/RF OUT)
external attenuation or gain. Press the Ext Gain/Loss submenu key and
select a value from 0 dB to 100 dB, then select either dB External Loss
or dB External Gain. The Generator Gain/Loss setting (other than 0 dB) is
displayed in the upper-right corner after the Generator output power level.
The external attenuation or gain is also reflected in the displayed output
power.
Power Statistics: Press to display the Tracking Generator Summary
table displaying the spectrum analyzer received Maximum, Average, and
Minimum power of each frequency range sweep. Only available with
Generator Mode set to tracking.
Enhanced Generator Accuracy: Displays the Gen Power Accuracy
submenu.
Enhanced Accuracy Calibration: Improves the output accuracy
of the generator when turned on. The calibration can be done in
both Tracking Generator and CW Generator modes. Changing the
output power turns enhanced calibration OFF. (+Accy) is displayed
after the Generator power level when Enhanced Accuracy is ON.
Matching Pads(3dB) Zero One Two: Sets the number of external
3 dB attenuators used during the Enhanced Accuracy Calibration
procedure.
Additional Calibration Sweep: Pressing this key after Enhanced
Accuracy Calibration is completed starts an additional set of
calibration sweeps to improve the power accuracy level of the
generator output.
Back: Press to return to the “Generator Menu” on page 2-11.

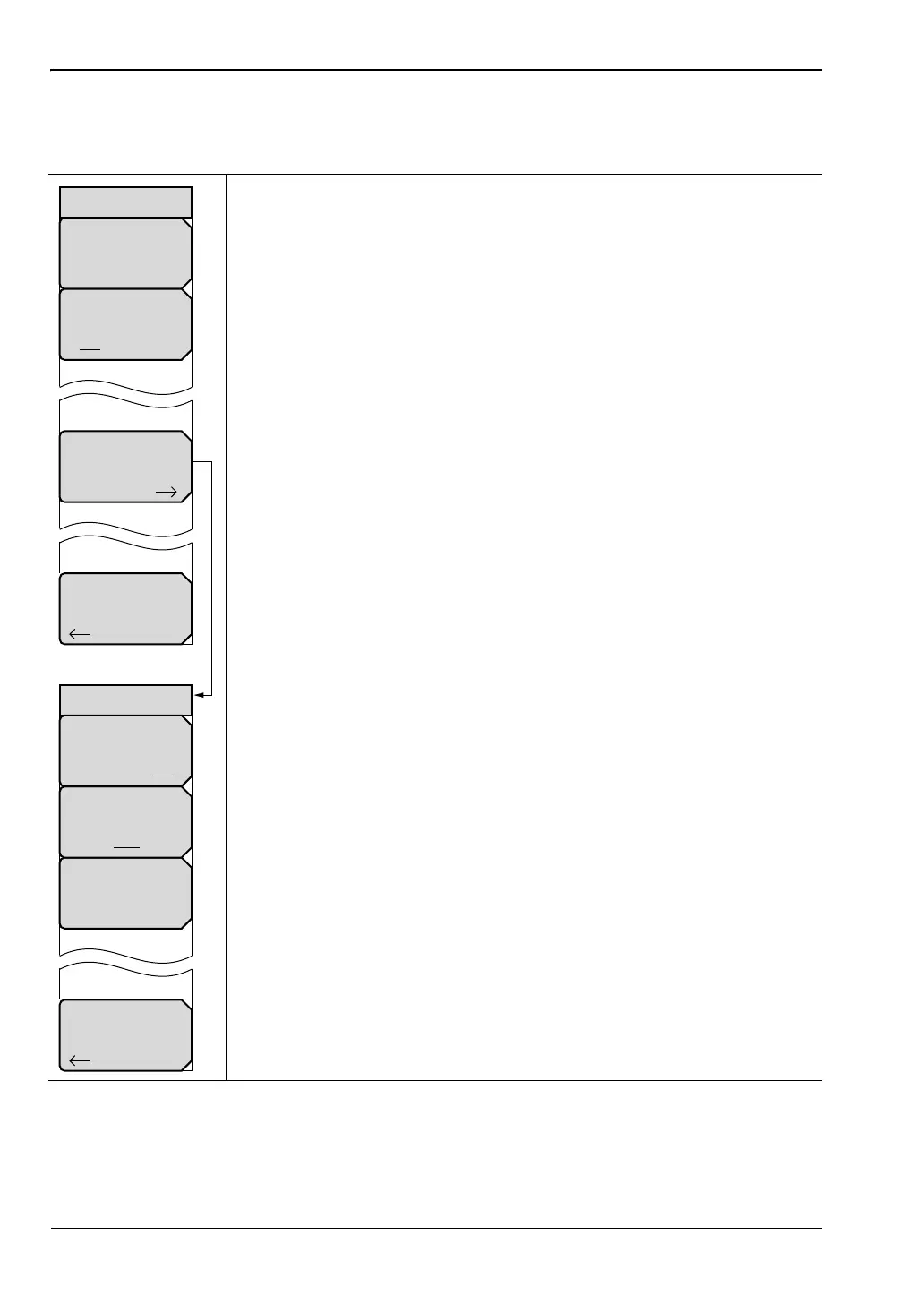

Figure 2-12. Settings Menu
Settings
Ext Gain/Loss
0.0 dB Ext Gain
Additional
Calibration Sweep
Power Statistics
Off On
Enhanced Generator
Power Accuracy
Back
Gen Power Accuracy
Matching Pads(3dB)
Zero One Two
Enhanced Accuracy
Calibration
On Off
Back
