Chapter 3 —Mobile WiMAX Signal Analyzer 3-5 Mobile WiMAX Demod Measurements
WiMAX MG PN: 10580-00236 Rev. D 3-13
DL-MAP
The DL-MAP measurement displays the DL-MAP information from the decoded results (Auto
mode) or from the parsed information, which is from the .xml parameter file (Manual mode).
The .xml parameter file is uploaded to the instrument with Master Software Tools.
1. Press the DL-MAP submenu key to open the DL-MAP Tree, which displays a list of
WiMAX parameters.
2. Use the Up/Down and Left/Right arrow keys to close or to open subordinate lists within
the map. The sample image in Figure 3-10 may differ from any image on your
instrument.

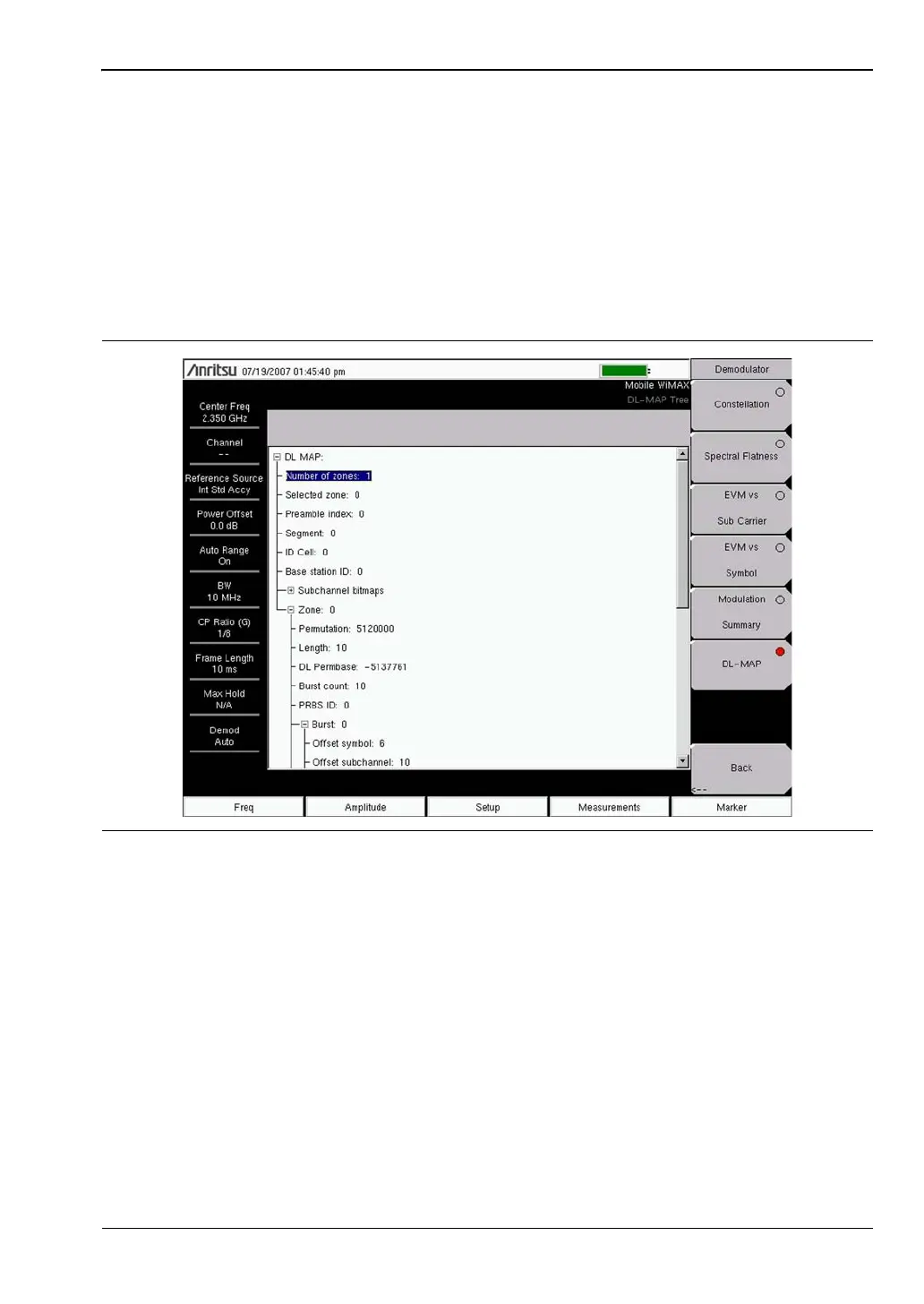

Figure 3-10. Mobile WiMAX Demodulator DL-MAP Measurement
