Chapter 3 —Mobile WiMAX Signal Analyzer 3-6 Mobile WiMAX OTA Measurements
WiMAX MG PN: 10580-00236 Rev. D 3-15
Preamble Scanner
This measurement displays the six strongest preamble signals in bar graph form. The
Preamble Index, Relative Pwr, Cell ID, and Sector ID are listed for each preamble signal.
The PCINR, calculated from all six preambles, and the Base Station ID, of the strongest
preamble signal, are listed below the table.
1. Press the Preamble Scanner submenu key.
2. Set the Auto Save submenu key turn as desired.
3. Press the Reset/Restart Measurement submenu key to discard logged Preamble data and
restart logging of the data.

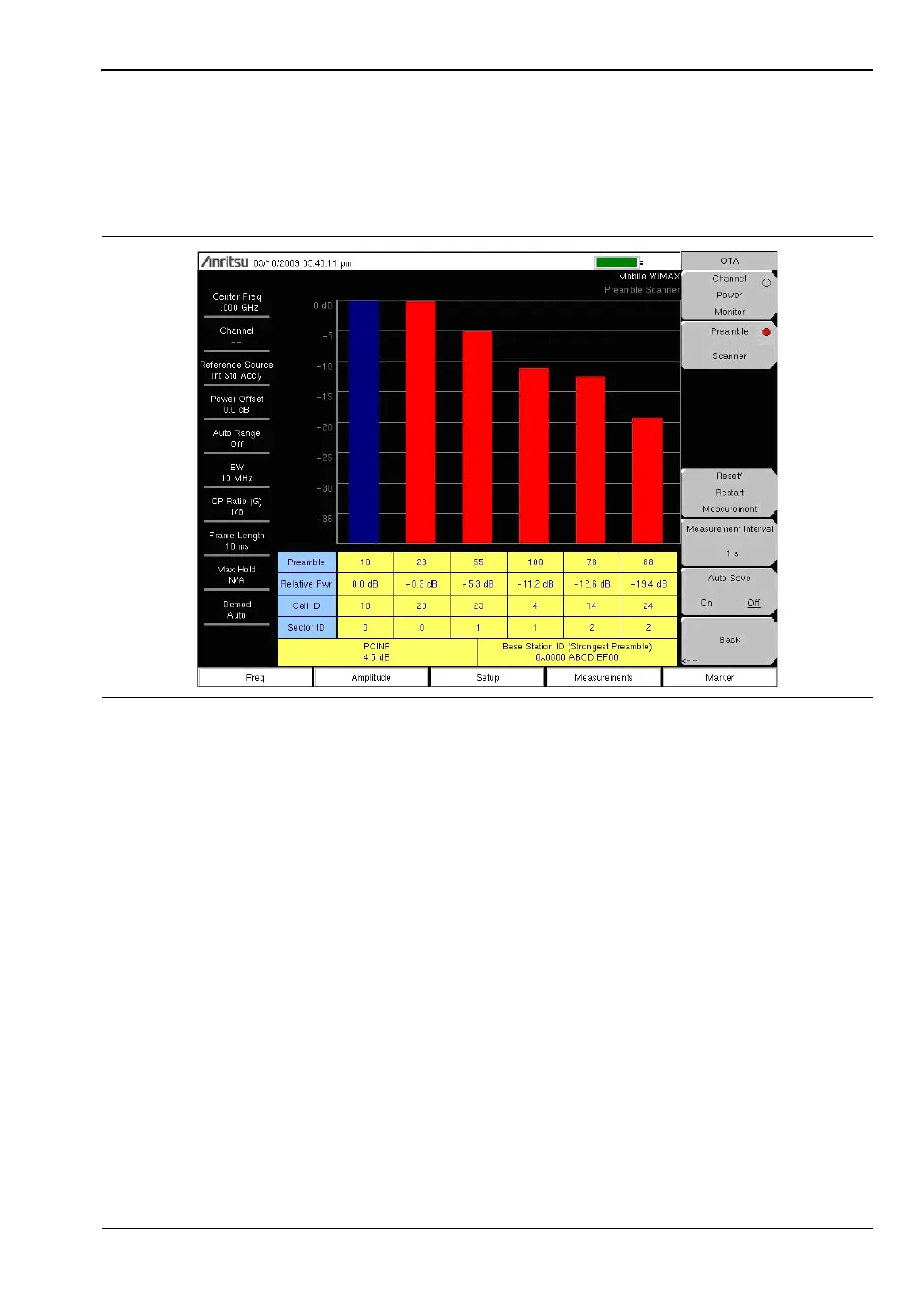

Figure 3-12. Mobile WiMAX OTA Preamble Scanner Measurement
