3-5 Mobile WiMAX Demod Measurements Chapter 3 —Mobile WiMAX Signal Analyzer
3-10 PN: 10580-00236 Rev. D WiMAX MG
EVM versus Sub Carrier
This view shows the EVM(rms) values versus OFDMA subcarriers. The numerical results
that are displayed in this view are: RCE (rms) in (dB), RCE (pk) in (dB), EVM (rms) in (%),
EVM (pk) in (%), Freq Error in (Hz), CINR, Base Station ID, and Sector ID. The sample
image in Figure 3-7 may differ from any image on your instrument.
Press the EVM vs Sub Carrier submenu key to select the measurement.

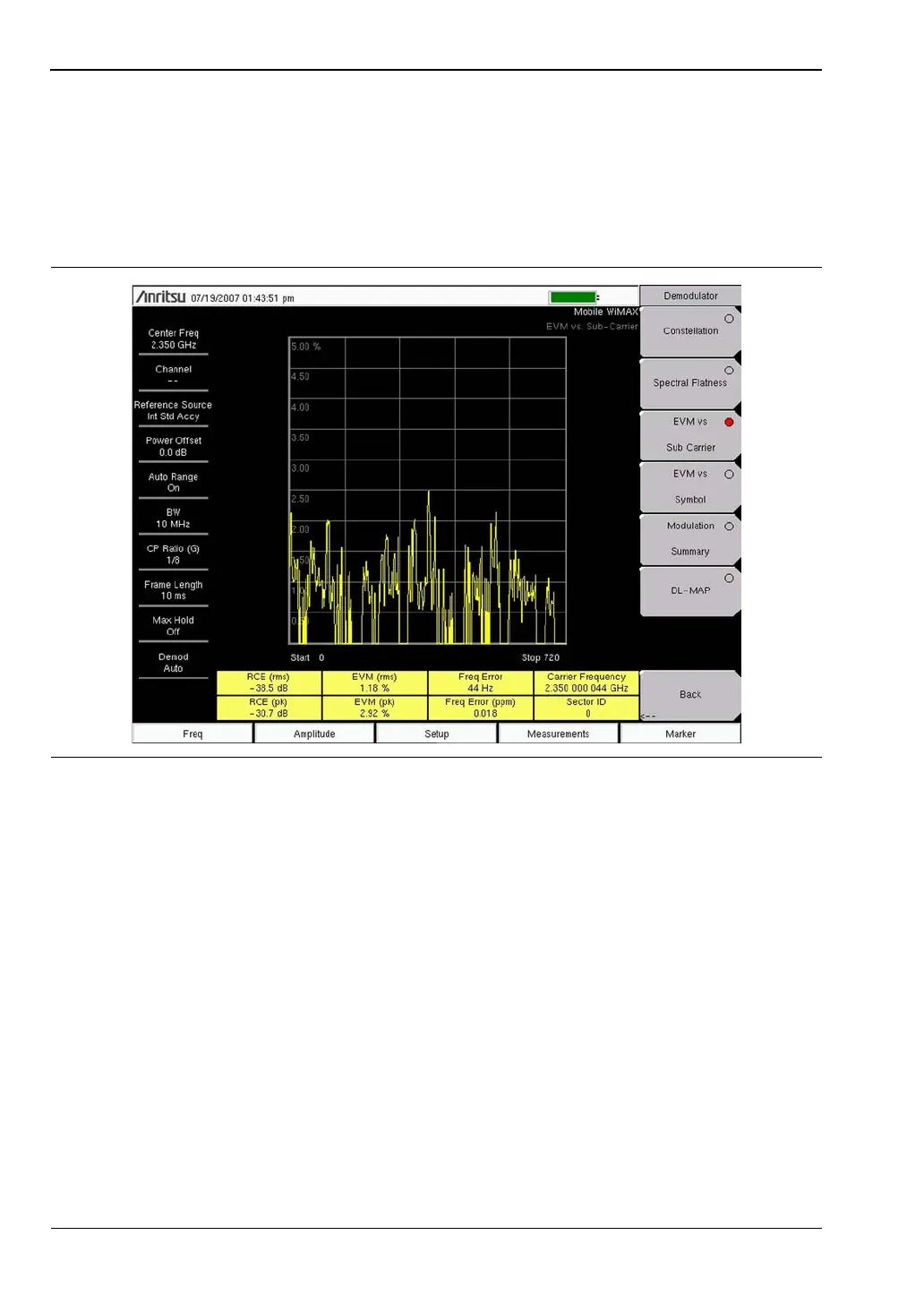

Figure 3-7. Mobile WiMAX Demodulator EVM versus Sub Carrier Measurement
