Chapter 3 —Mobile WiMAX Signal Analyzer 3-4 Mobile WiMAX RF Measurements
WiMAX MG PN: 10580-00236 Rev. D 3-7
RF Summary
The RF Summary measurement displays the critical RF transmitter performance
measurements in a table format, without demodulating the WiMAX signal. The parameters
that are displayed in the RF Summary table are Channel Power (dBm), Downlink Burst
Power (dBm), Uplink Burst Power (dBm), Preamble Power (dBm), and Occupied
Bandwidth (Hz). The sample image in Figure 3-4 may differ from any image on your
instrument.
Press the RF Summary submenu key to activate the measurement.

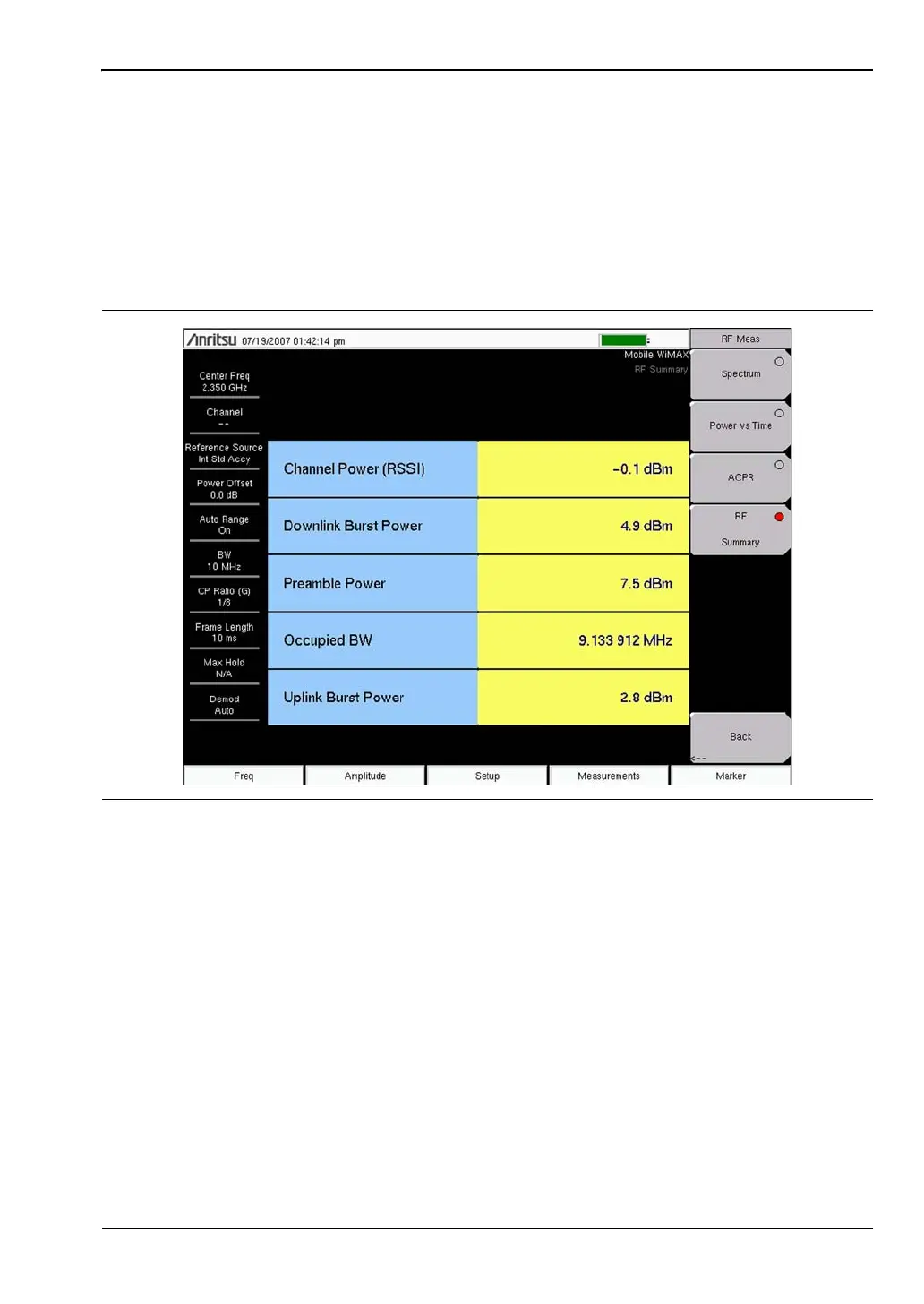

Figure 3-4. Mobile WiMAX RF Summary
