3-4 Mobile WiMAX RF Measurements
Mobile WiMAX RF Measurements consist of three measurement types: Spectrum, Power
versus Time, and Adjacent Channel Power Ratio (ACPR).
Setup for RF Measurements
1. Press the Measurements main menu key.
2. Press the RF submenu key to select one of the following RF measurements.
Spectrum
The Spectrum screen displays the spectrum of the input signal, the channel power in dBm,
and occupied bandwidth.
1. Press the Spectrum submenu key to select the spectrum measurement.
2. Press the Spectrum submenu key again to open the Spectrum menu and change the
Span, if desired. Span choices are: 5 MHz, 10 MHz, 20 MHz, and 30 MHz. The sample
image in Figure 3-1 may differ from any image on your instrument.

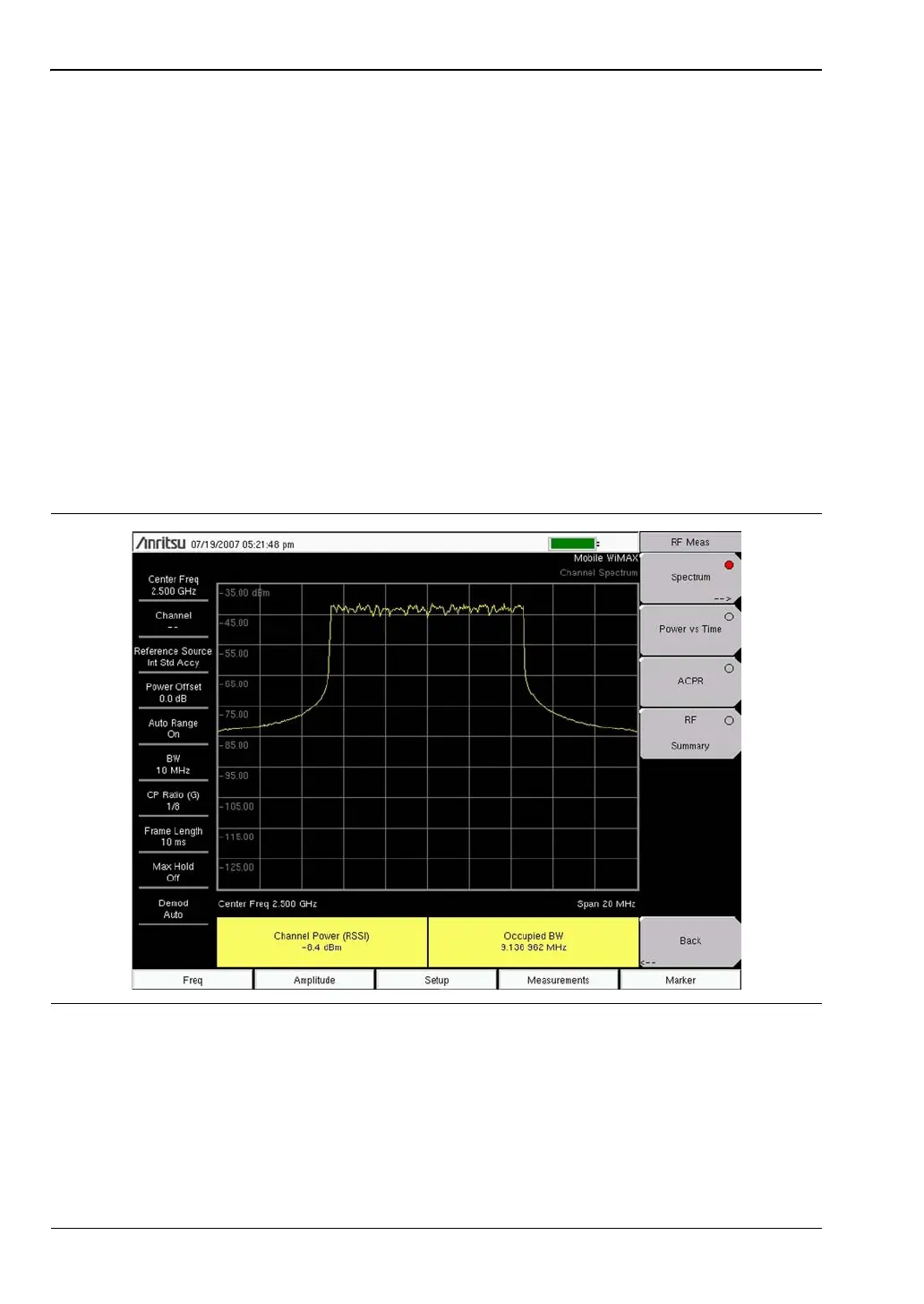

Figure 3-1. Mobile WiMAX Spectrum Measurement
