Modulation Summary
The Modulation Summary measurement displays the critical Modulation transmitter
performance measurements in a table format by demodulating the WiMAX signal. The
parameters that are displayed in the Modulation summary table are: RCE (rms) in (dB),
RCE (pk) in (dB), EVM (rms) in (%), EVM (pk) in (%), Freq Error in (Hz), CINR, Carrier
Frequency (Hz), and Sector ID. The sample image in Figure 3-9 may differ from any image on
your instrument.
Press the Modulation Summary submenu key to select the measurement.

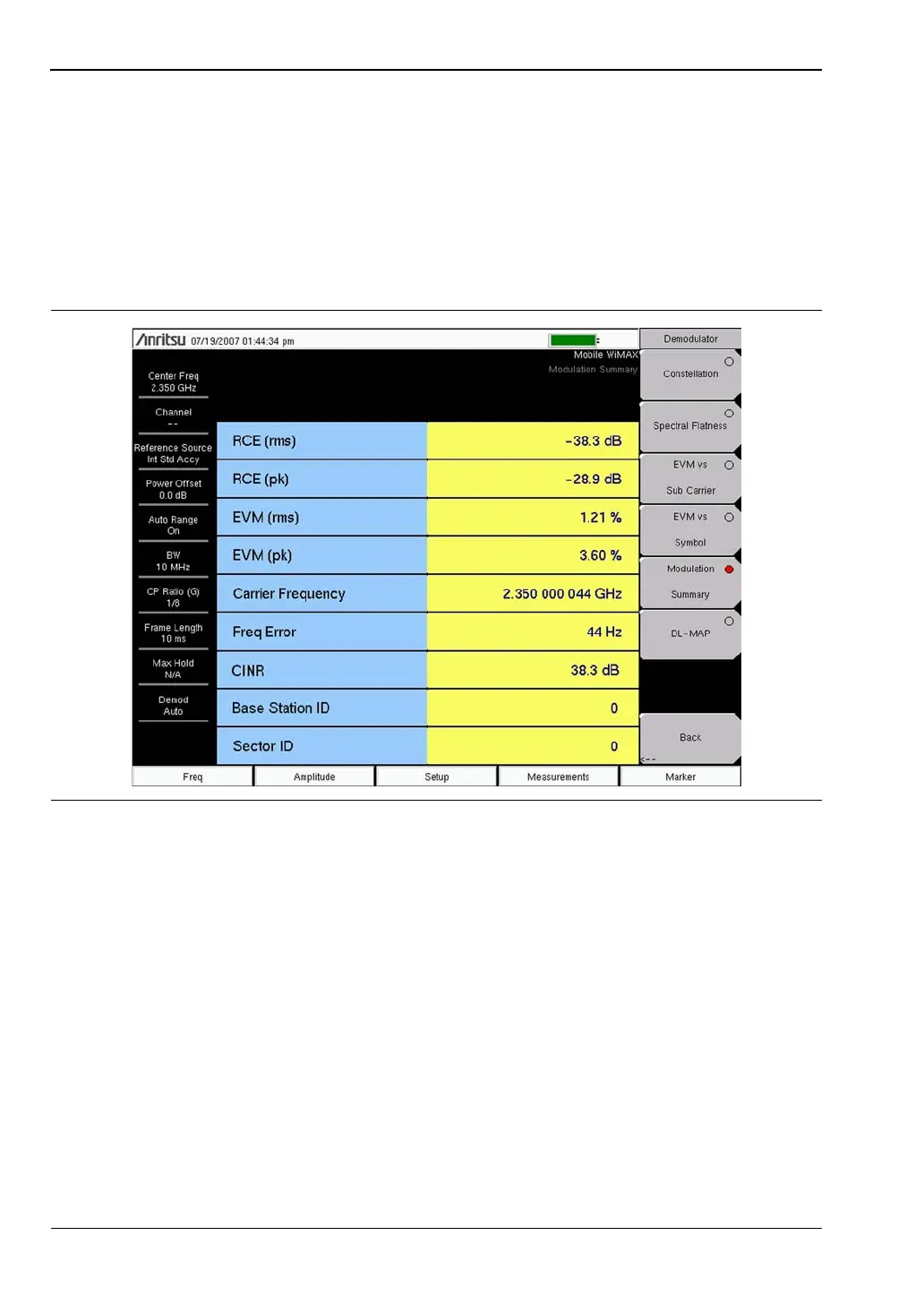

Figure 3-9. Mobile WiMAX Demodulator Modulation Summary Measurement
