3-5 CW Generator Overview Chapter 3 — T-Series Tracking Generator
3-6 PN: 10580-00339 Rev. C Tracking Generator MG
3-5 CW Generator Overview
These Tracking Generator options include a CW Generator. The CW Signal Generator
provides a continuous wave (CW) signal from the GENERATOR/RF OUT port of the
instrument.
The following example displays the generator CW signal on the instrument display.
1. Connect a THROUGH cable between the RF OUT and RF In connectors as shown in
Figure 3-6
2. Set the Mode to Spectrum Analyzer. Refer to Chapter 1 for details.
3. Preset the instrument (Shift+1 > Preset).
4. Set the spectrum analyzer frequency range using the Frequency (Freq) menu and
submenus. Refer to the Spectrum Analyzer Measurement Guide (10580-00349) for
additional information.
5. Press the Shift key, then the Measure (4) key. Press the Generator key.
6. Press the Output Power button and set the output power (at the output connector before
any external attenuation).

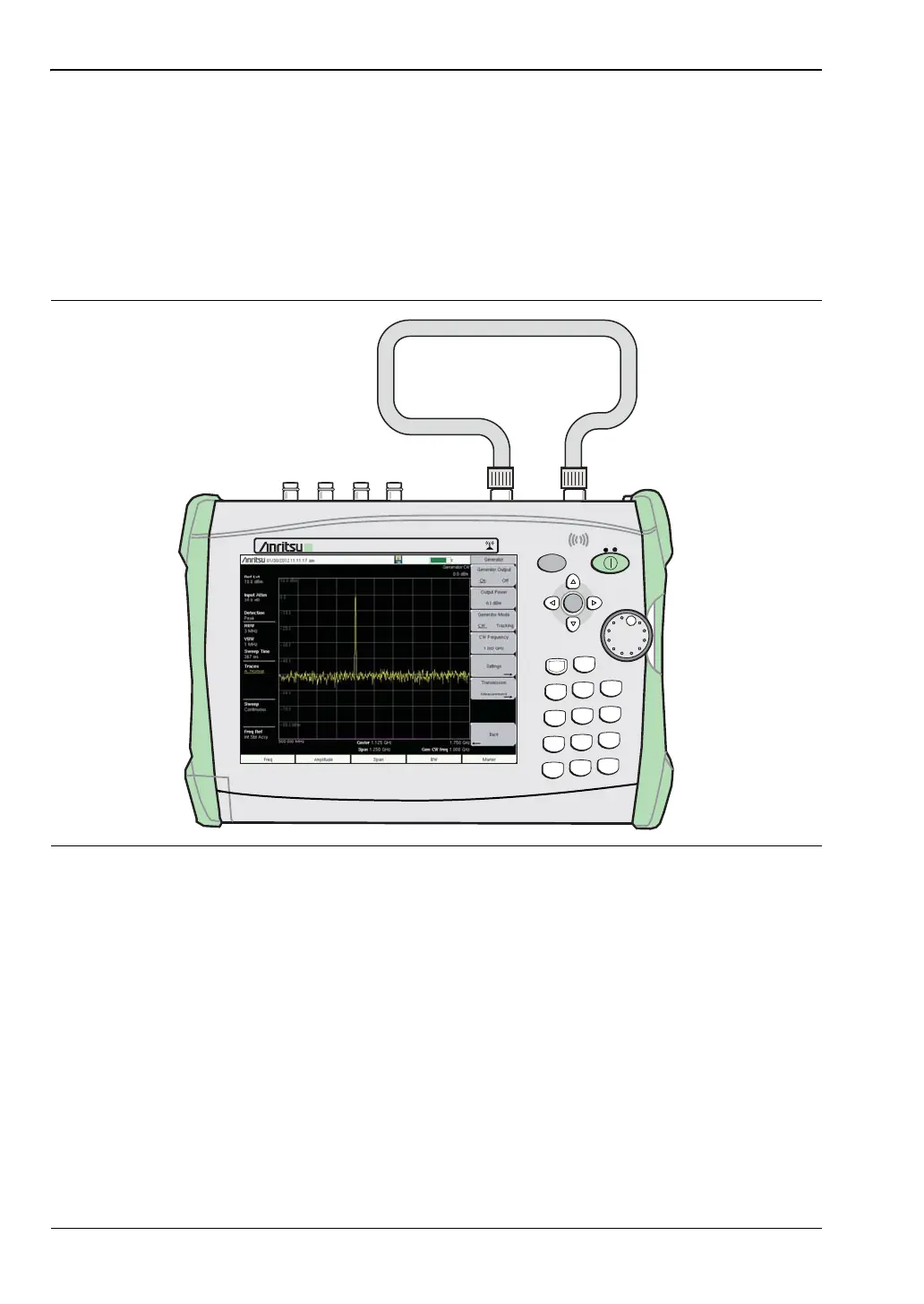

Figure 3-6. Through Cable Setup Example
RF IN RF OUT
MS2720T
SpectrumMaster
Spectrum
Analyzer
9 kHz-xx GHz
Menu
Menu
Shift
Mode
Esc
9
System
8
File
7
Meas
4
Trace
5
Limit
6
Sweep
3
Cal
2
Preset
1
0
.
+/-
Enter
Enter
