Chapter 3 — T-Series Tracking Generator 3-5 CW Generator Overview
Tracking Generator MG PN: 10580-00339 Rev. C 3-7
7. Set the Generator Mode to CW and set the CW Frequency.
8. Turn Generator Output On. The output power turns on at the level that has been set
previously with the Output Power key.
9. Figure 3-7 displays the CW output at 1 GHz frequency and 0.0 dBm power. Refer to
“Generator Menu” on page 3-9 for additional information.
Note
Confirm that the CW Frequency is set within the spectrum analyzer span, or the
signal will not be displayed on the instrument.

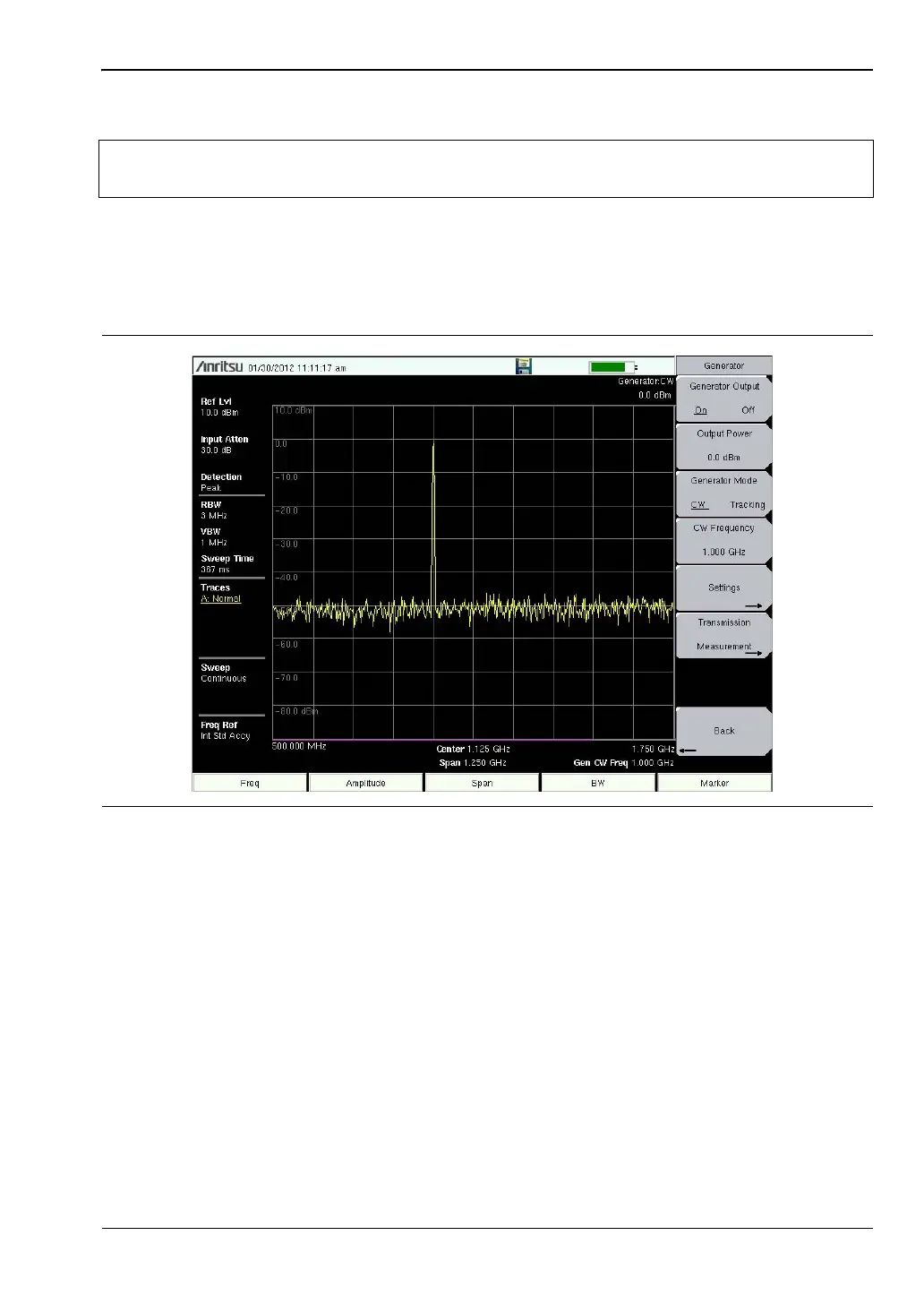

Figure 3-7. CW Output Example
