Pass/Fail Mode
The Pass/Fail mode allows selection of a user-defined file that specifies a list of
measurements with Pass/Fail criteria. In this mode, the instrument steps in sequence
through the appropriate measurements and indicates a pass or fail state based upon the
criteria. Using Master Software Tools (MST), a custom test list can be created and uploaded
into the instrument. All of the critical measurements are available and can be selected for
Pass/Fail testing. The results are displayed in a table format with clear identification of
Pass/Fail results, including minimum and maximum thresholds and measured results. The
sample image in Figure 3-13 may differ from any image on your instrument.
1. Press the Measurements main menu key.
2. Press the Pass/Fail Mode submenu key.
3. Press the Pass/Fail Mode submenu key again to activate the Pass Fail Mode menu.
4. Press the Select Pass/Fail Test submenu key to view a list of Pass/Fail test definition
files.
5. Use the Up/Down arrow keys or the rotary knob to highlight the applicable Pass/Fail
test on the list, and press the Enter key to select.
6. Press the Reset submenu key to begin a new Pass/Fail test measurement.

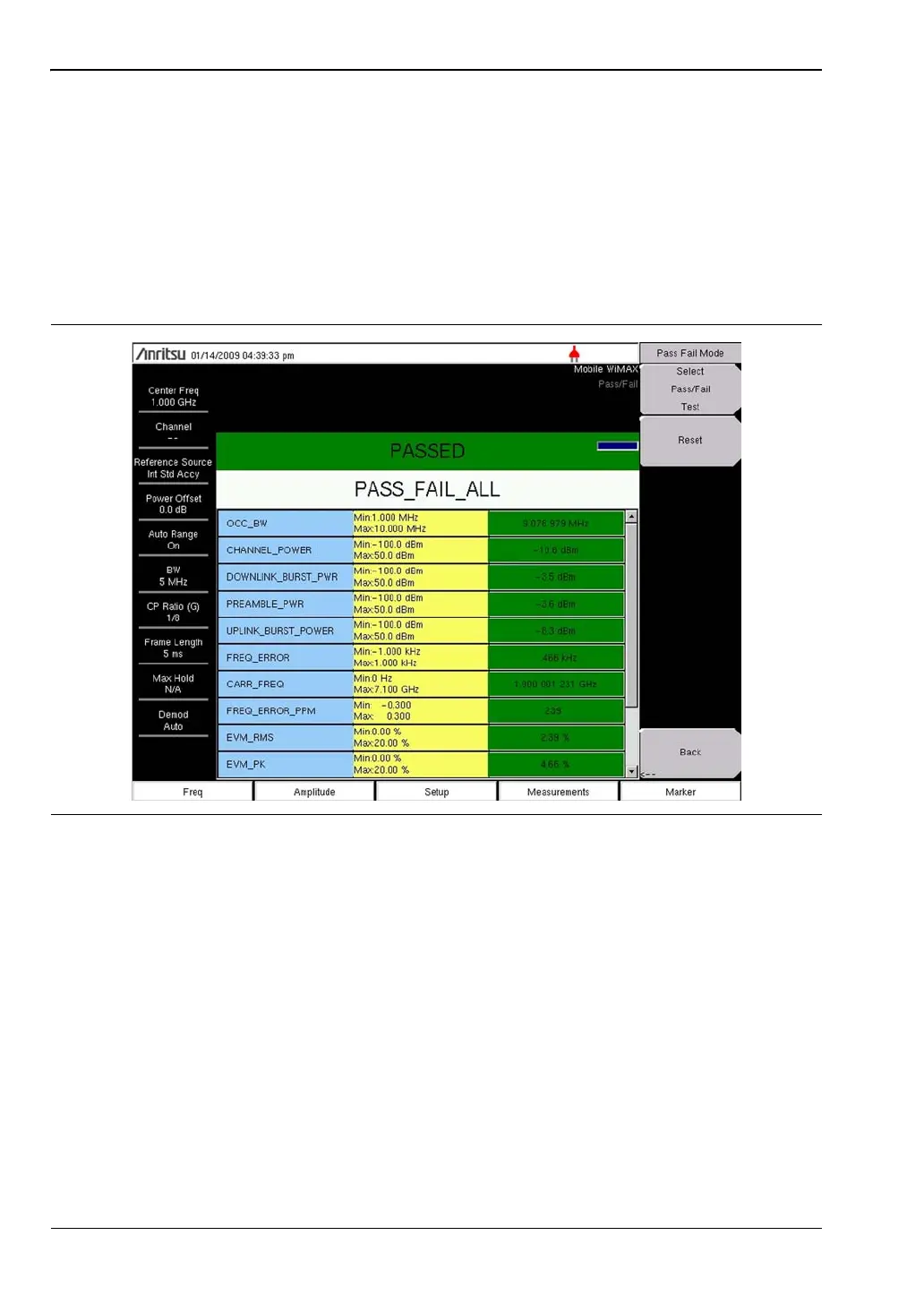

Figure 3-13. Mobile WiMAX Pass/Fail Measurement Display
