1-3 Selecting a Measurement Mode Chapter 1 —General Information
1-2 PN: 10580-00236 Rev. D WiMAX MG
1-3 Selecting a Measurement Mode
Select either Fixed WiMAX Analyzer or Mobile WiMAX Analyzer mode by pressing Shift and
then the Mode (9) button to open the Mode Selector dialog box. Highlight the desired
measurement mode using the Up or Down arrow keys and press Enter.
Some Anritsu handheld instruments also have a Menu button which displays icons of
installed measurement modes and allows measurement mode selection using the touch
screen.
Refer to the instrument User Guide for additional information.

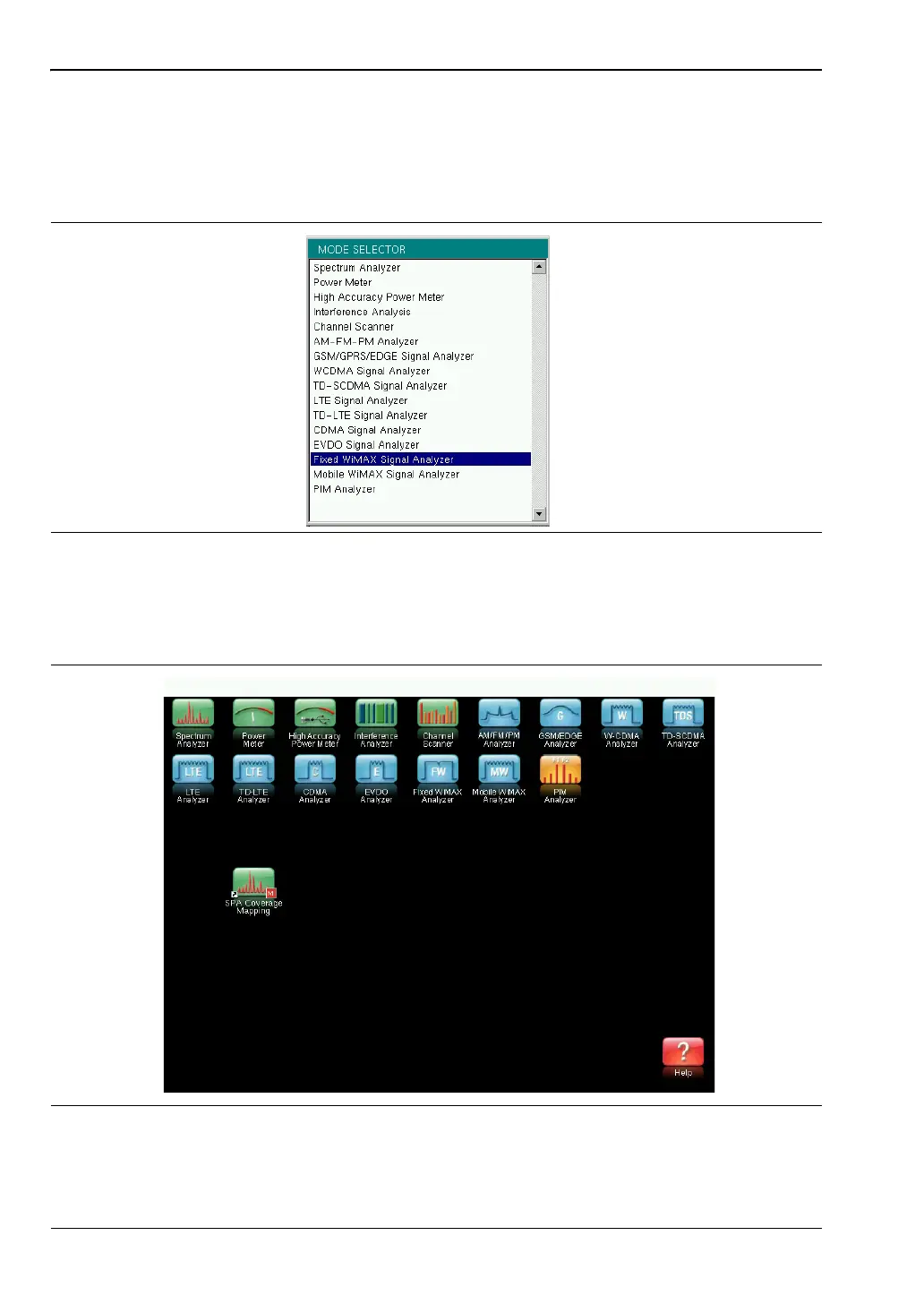

Figure 1-1. Mode Selector Dialog Box
Figure 1-2. Mode Selector Dialog Box
