SECTION 6 – TEST AND PLACE IN SERVICE
2014-APR-30 REV. 0 PAGE 6-5
CHECKFIRE 110
Detection and Actuation System
TABLE 6-3: PROGRAMMING THE RELEASE TIME DELAY
At the start of an alarm condition the red “PUSH To Acti-
vate / Alarm When Lit” LED and Sounder notify operator of
pending release. The CHECKFIRE System activates the
release circuit at end of time delay, unless the “DELAY/Reset/
Silence” button is pushed to restart time delay cycle before
the time delay expires. The time delay can be re-started
multiple times if more time is needed for safety.
Note: The release time delay only applies to a detec-
tion device input. The time delay is bypassed when the
CHECKFIRE 110 Control Module or an EMA is manually
actuated.
Options for the release time delay are either 5 seconds or 15
seconds. The CHECKFIRE 110 Control Module is factory set
for a 5-second time delay.
1. Verify time delay setting: press and hold the “DELAY/
Reset/Silence” button for 3 seconds (reset to normal). At
the end of reset, the GREEN Power LED and Sounder
quickly pulse 3 times indicating a 5-second time delay or
5 times for a 15-second time delay.
Power LED and Sounder Indicates Seconds of
Quickly Pulse Time Delay
3 5
5 15
2. To change the time delay place in Isolate Mode. Refer to
Table 2 - Isolation Feature, Steps 1-3, then continue.
3. The time delay toggles between 5 to 15 seconds by
rapidly pushing the “DELAY/Reset/Silence” button 3 x 1
second. The GREEN Power LED and Sounder quickly
pulse 3 times for a 5-second time delay or 5 times for a
15-second time delay.
4. Reset control module to Normal: Press and hold the
“DELAY/Reset/Silence” button for 3 seconds; Power LED
and Sounder quickly pulse 3 or 5 times, then Power LED
remains GREEN steady-on.
5. To change time delay again, repeat above procedure.

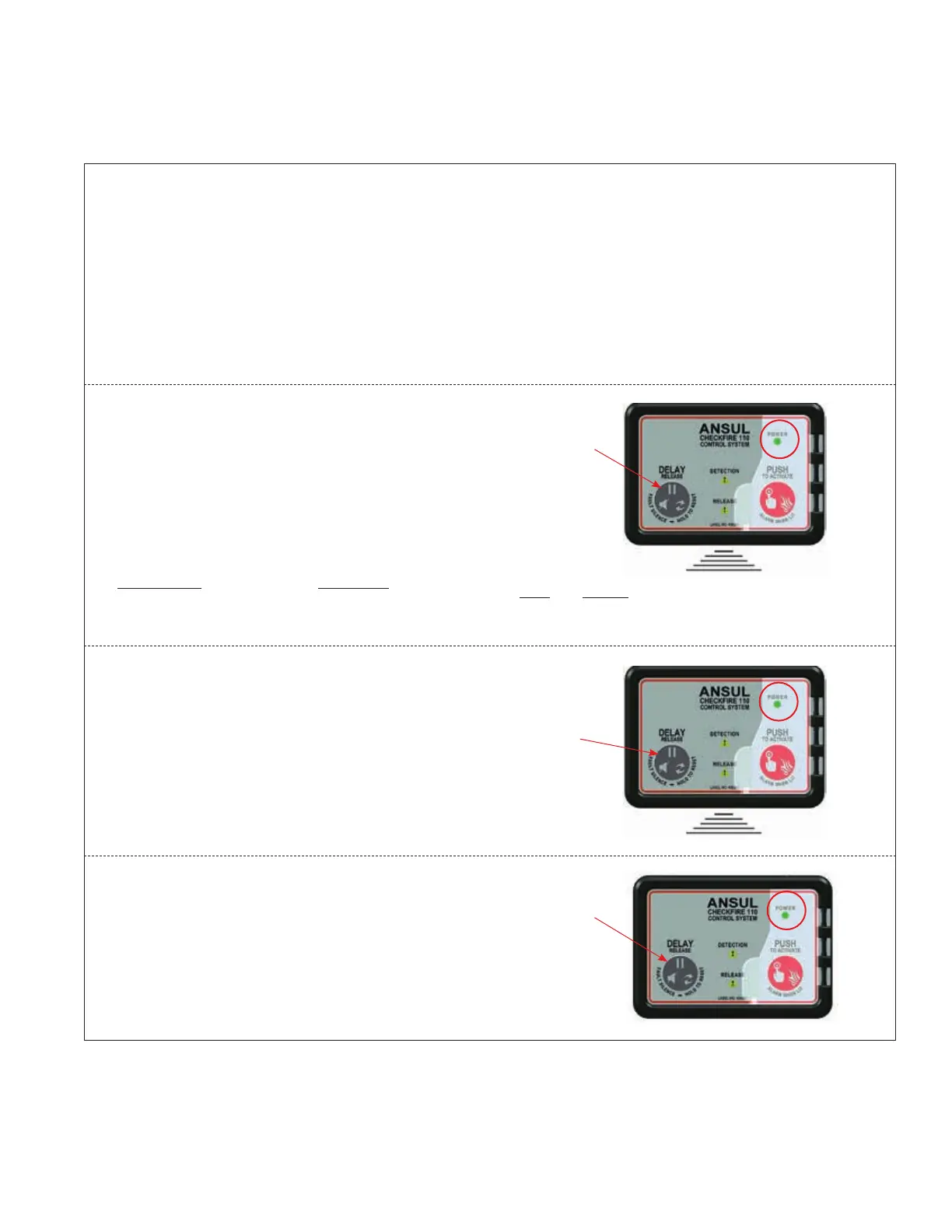

009180
RESET TO
NORMAL
PRESS AND
HOLD 3
SECONDS
POWER LED
IS GREEN
STEADY-ON
009180b
SEE TABLE 2, TO
PLACE MODULE IN
ISOLATE MODE
THEN PUSH 3 X 1
SECOND
POWER LED AND
SOUNDER PULSE
3 OR 5 TIMES
009180b
VERIFY TIME
DELAY SETTING
PRESS AND
HOLD 3
SECONDS
TIME DELAY
SETTING INDICATION:
LED AND TIME
SOUNDER DELAY
PULSE SECONDS
3 5
5 15
