Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service & Installation
REV.
B
Page 17 of 95
d. Remove torque rod from bottom of door; pull rod down and out.
e. Insert torque rod in opposite end of door.
f. Insert hinge pin in opposite end of door.
g. Plug in hinge pin connectors to door heaters and/or glass heaters.
2. Wiring Instructions:
Heated Glass:
a. If glass is heated, unplug Black and White lead wires from glass.
b. To re-connect heated glass, plug in Black and White lead wires coming off heater
loom to Black and White lead wires from glass.
Non-Heated Glass:
a. Connect Black or Red lead wires from hinge pin to Black or Red door heater lead.
b. Connect White lead wire from hinge pin to White door heater lead.
3. Replace hinge side cover plate.
4. Re-install door.
11. Models 103, 105, 107, 2125, 2127 & 2130 Pass-Thru Installation

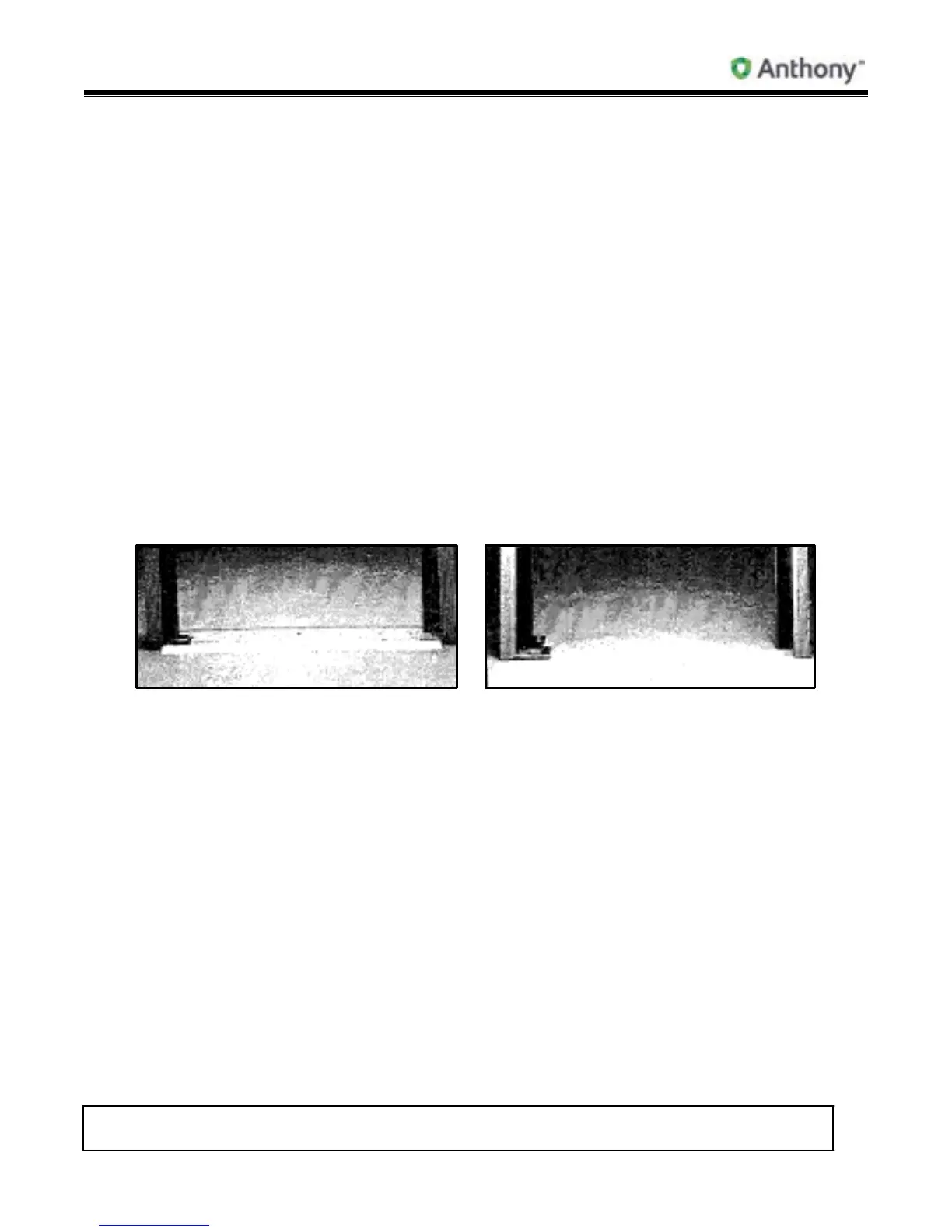

With Threshold Without Threshold
Note: If a roll-a-way cart is included in order, it must be behind the door before
installing frame.
1. Refer to Frame Installation instruction to install frame.
2. When threshold is desired, drill and tag on pre-drilled mounting holes only.
3. For installation of door and hold-open, use Reversible/Cordless Door & Hold-Open
Installation instructions.
4. With door in closed position, adjust floor wiper seal to fit flush with door and/or slab.
Turn screws clockwise to tighten and counter-clockwise to loosen.
